Chapter 1: Machine Overview
1.4 ENGINE COMPARTMENT OVERVIEW
Below are the components of the engine located on the left side of the machine:
1 Radiator filler cap 3 Fuel pump
2 Intercooler 4 Hydraulic oil pump

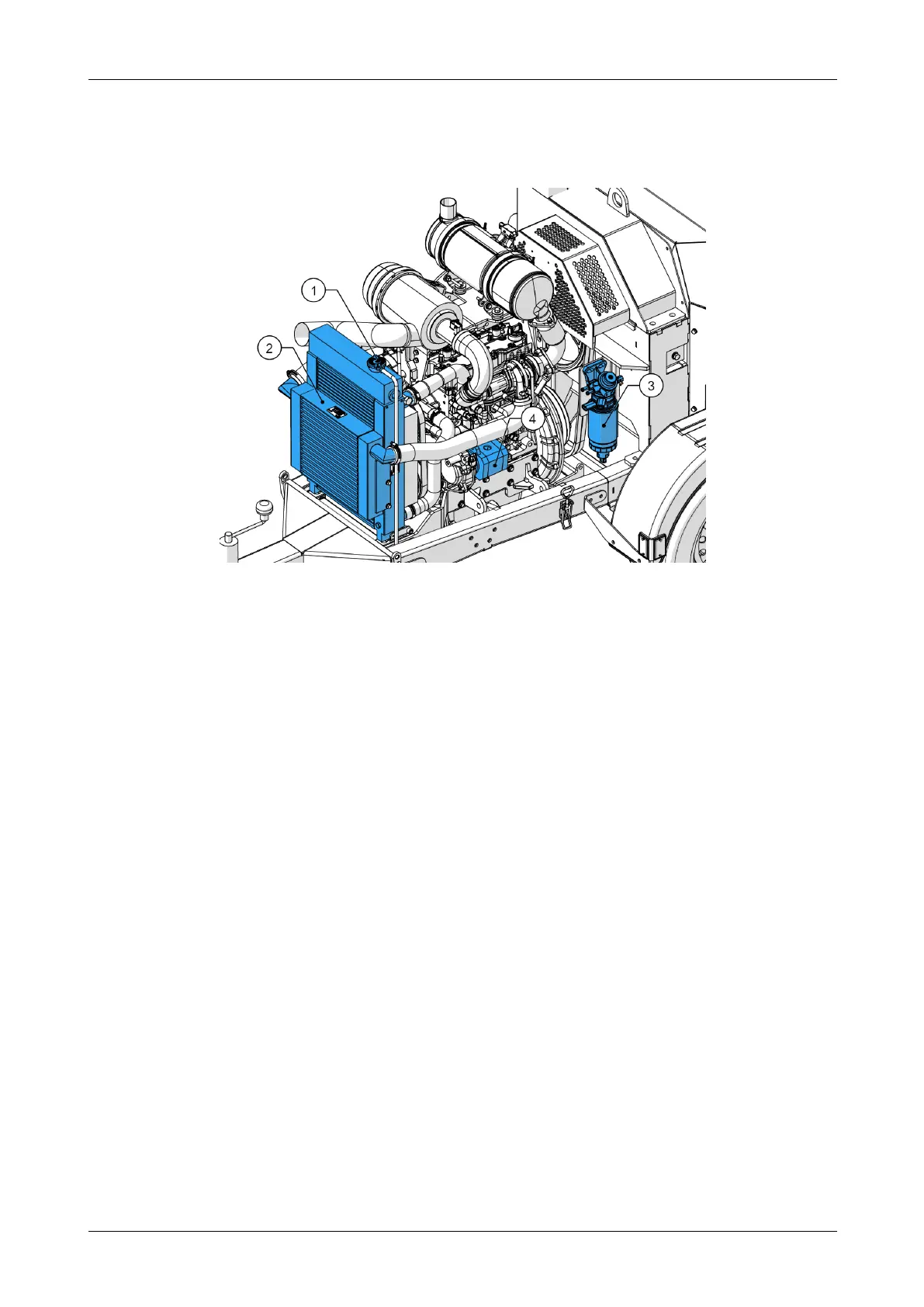

Figure 3 - Left-hand side engine components
