Redwood Global Ltd - ST6D42
Operator and Maintenance Manual
Chapter 4: Operation
Check the feed rollers:
8. Open the bonnet.
9. Open the chipping chamber cover.

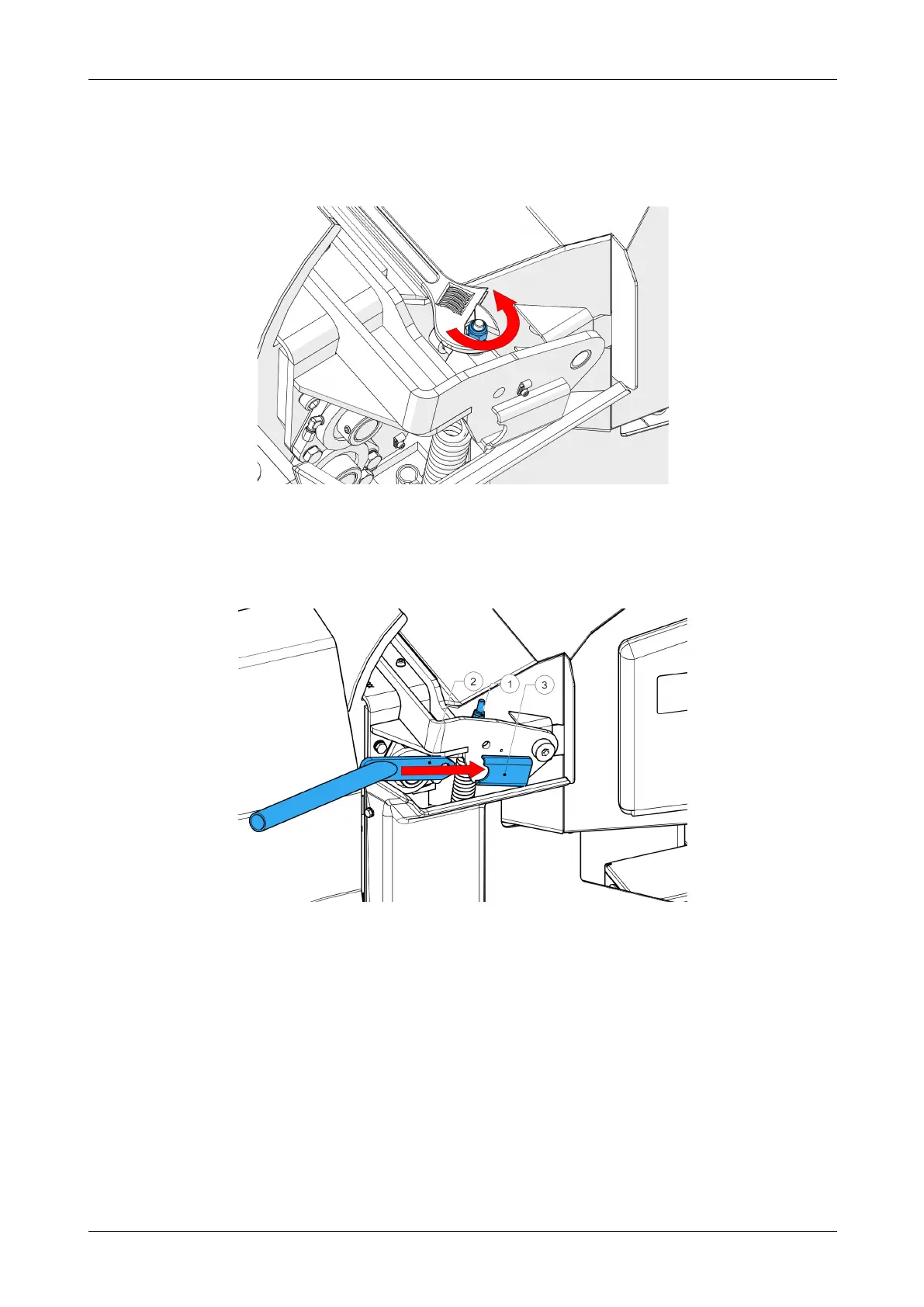

Figure 44 - Spring hanger
10. Release the feed roller spring tension on both sides. Remove the spring if
necessary.
11. Put the top feed roller lifting tool (2, Figure 45) into the slot (3, Figure 45).
Figure 45 - Feed roller spring tension
12-00-004 v2.1 76
