Redwood Global Ltd - ST6D42
Operator and Maintenance Manual
Chapter 5: Maintenance

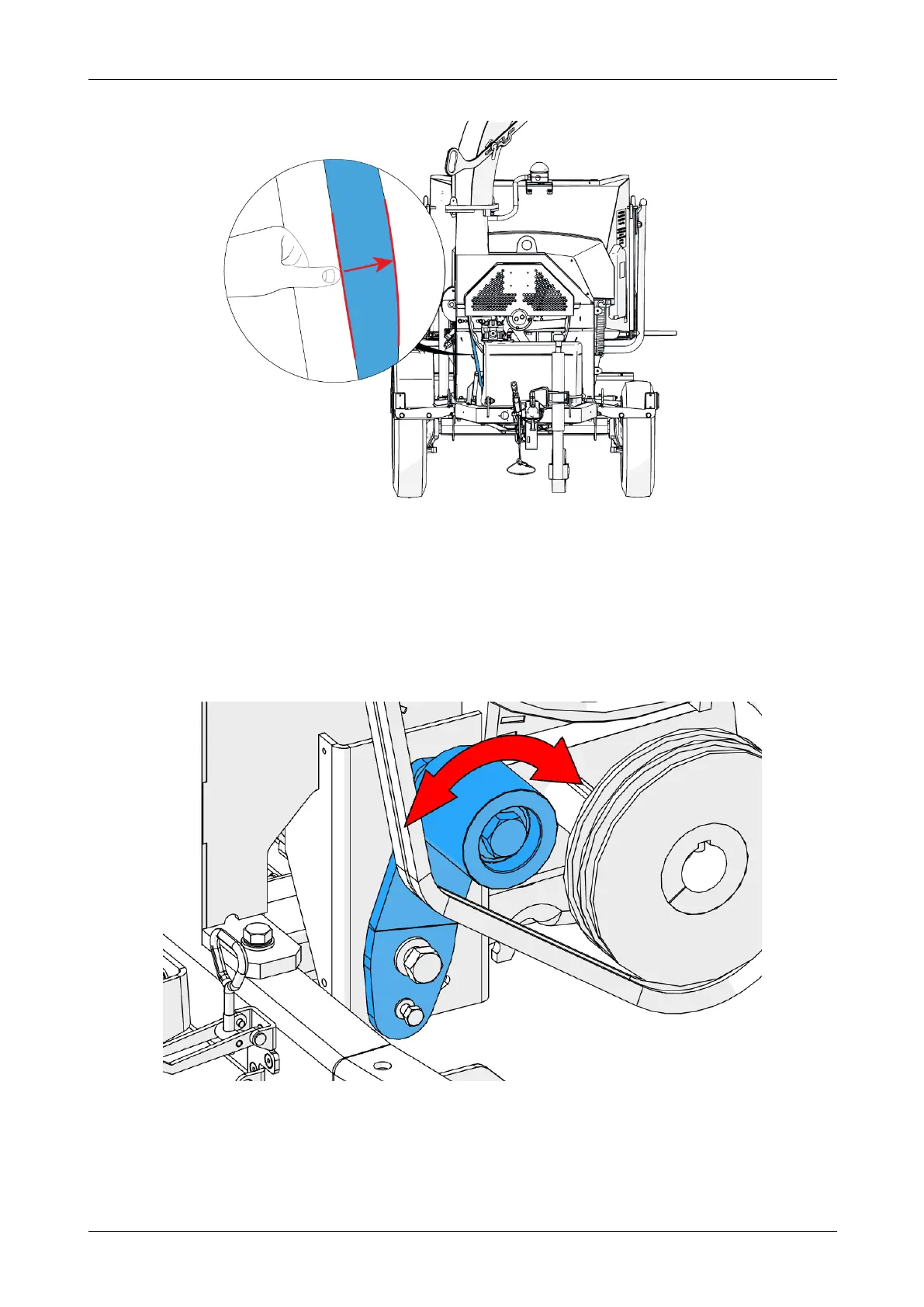

Figure 71 - Correct main belt tension
6. To adjust the tension:
a. Using a suitable tool, loosen the main tension belt.
b. With the bolts loosened, use a suitable tool to move the belt tensioner.
Pressing against the belt will increase the tension and moving away from
the belt reduces the tension.
Figure 72 - Adjust tension
7. Once the tension has been adjusted, close the bonnet.
8. Start the engine.
12-00-004 v2.1 108
