Redwood Global Ltd - ST6D42
Operator and Maintenance Manual
Chapter 3: Transportation and storage
3.5 REMOVING THE DISCHARGE CHUTE
DANGER
Do not remove the rear clamp when removing the chute. Doing so will result in
the chute falling.
The discharge chute only needs to be removed for storage and transportation purposes.
Under no other circumstances should the discharge chute be removed.
1. Stop the engine.
2. Remove the ignition key and keep in a safe place.
3. Rotate the discharge chute so that it is not hanging over the machine.
4. Loosen the front chute rotation clamp by rotating the clamp lever anti-clockwise.

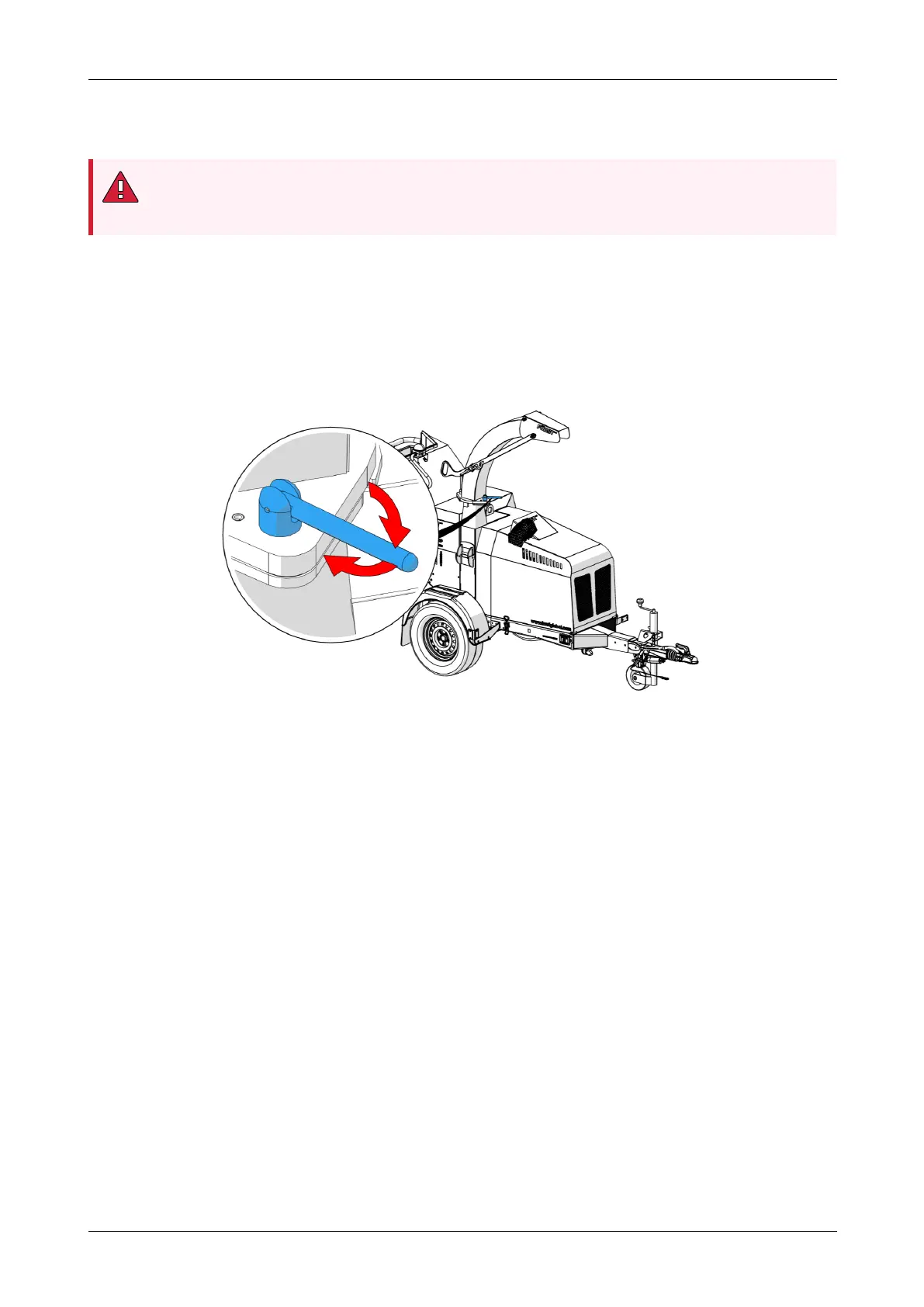

Figure 28 - Chute front rotation clamp
