1.11 IGNITION SWITCH

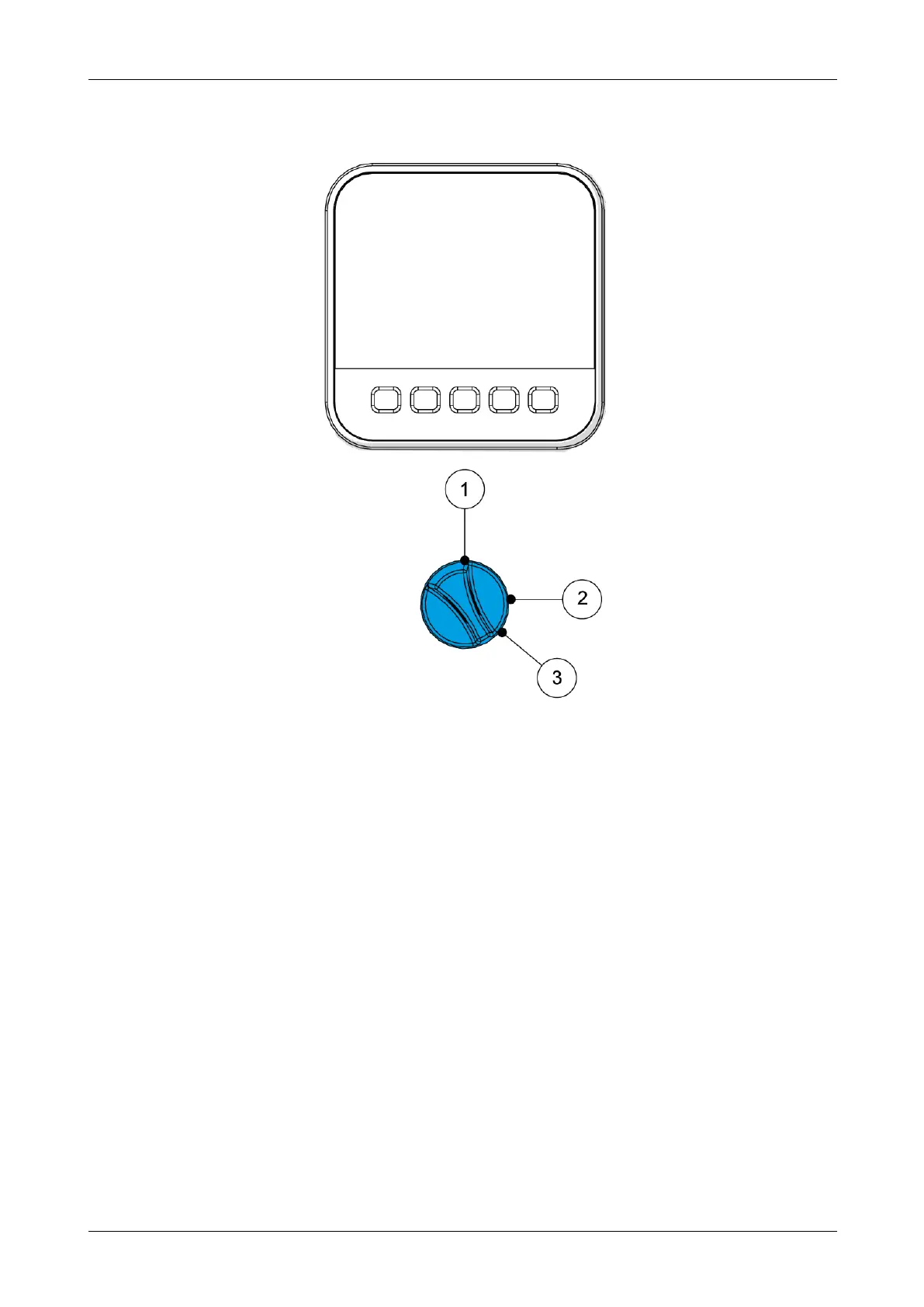

Figure 18 - Ignition switch
Off position (1, Figure 18)
This is the normal position when the machine is not in use.
On position (2, Figure 18)
This is the normal operating position. All electrical systems are on.
Start position (3, Figure 18)
This is the position for starting the engine. The key should be released from this position
as soon as the engine starts.
Chapter 1: Machine Overview
Redwood Global Ltd - ST6D42
Operator and Maintenance Manual
39 12-00-004 v2.1
