The other end of the
serial communication
cable ends with a small
black flat plug. Plug this
end into the socket at the
back of the MicroLog.
Note that the socket has
three pins, with one
further away from the
other two (Figure 1).
Take care to plug the
cable in correctly.

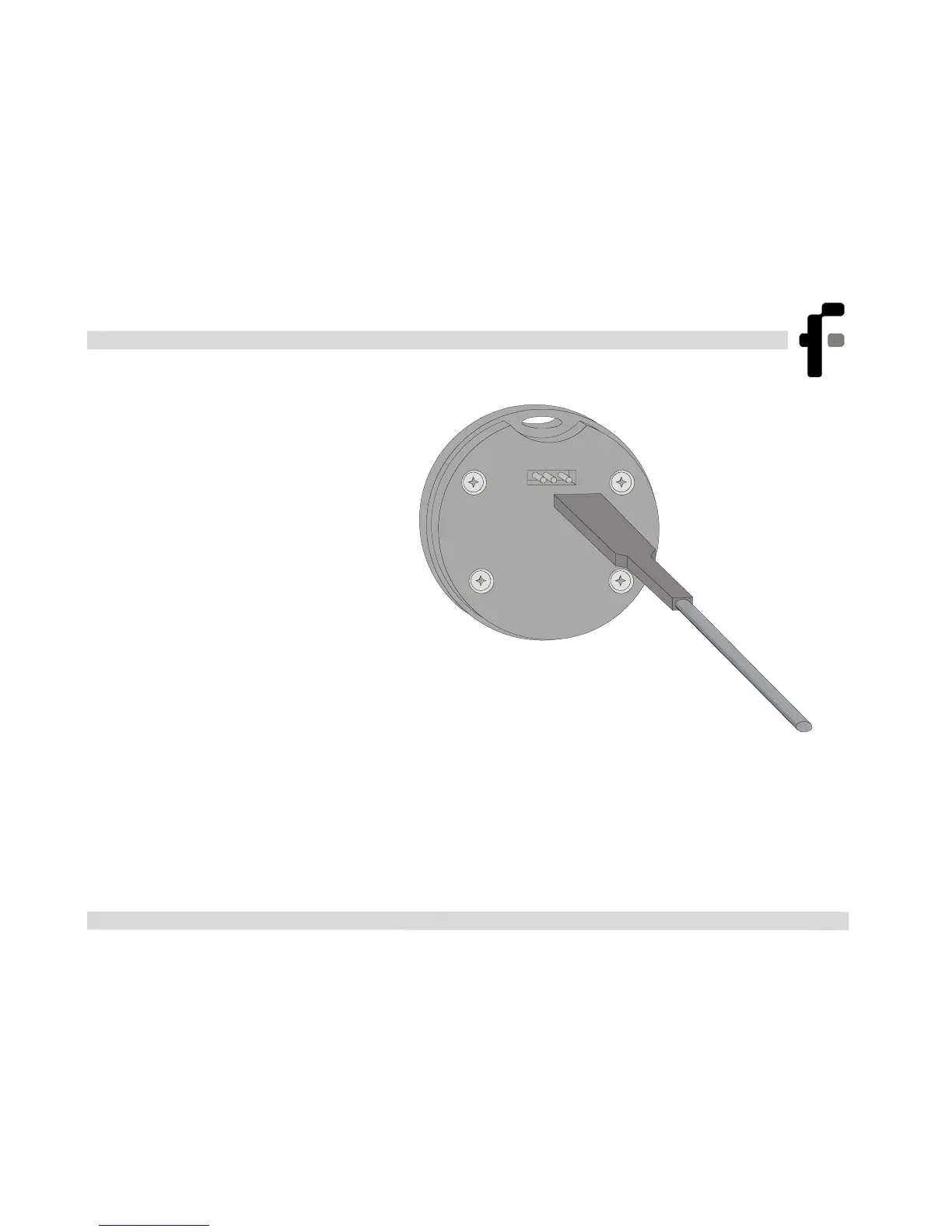

Figure 1: Connecting MicroLog
