Chapter 3 The Cradle
170
10. Replace the antenna and fasten the antenna
screw.

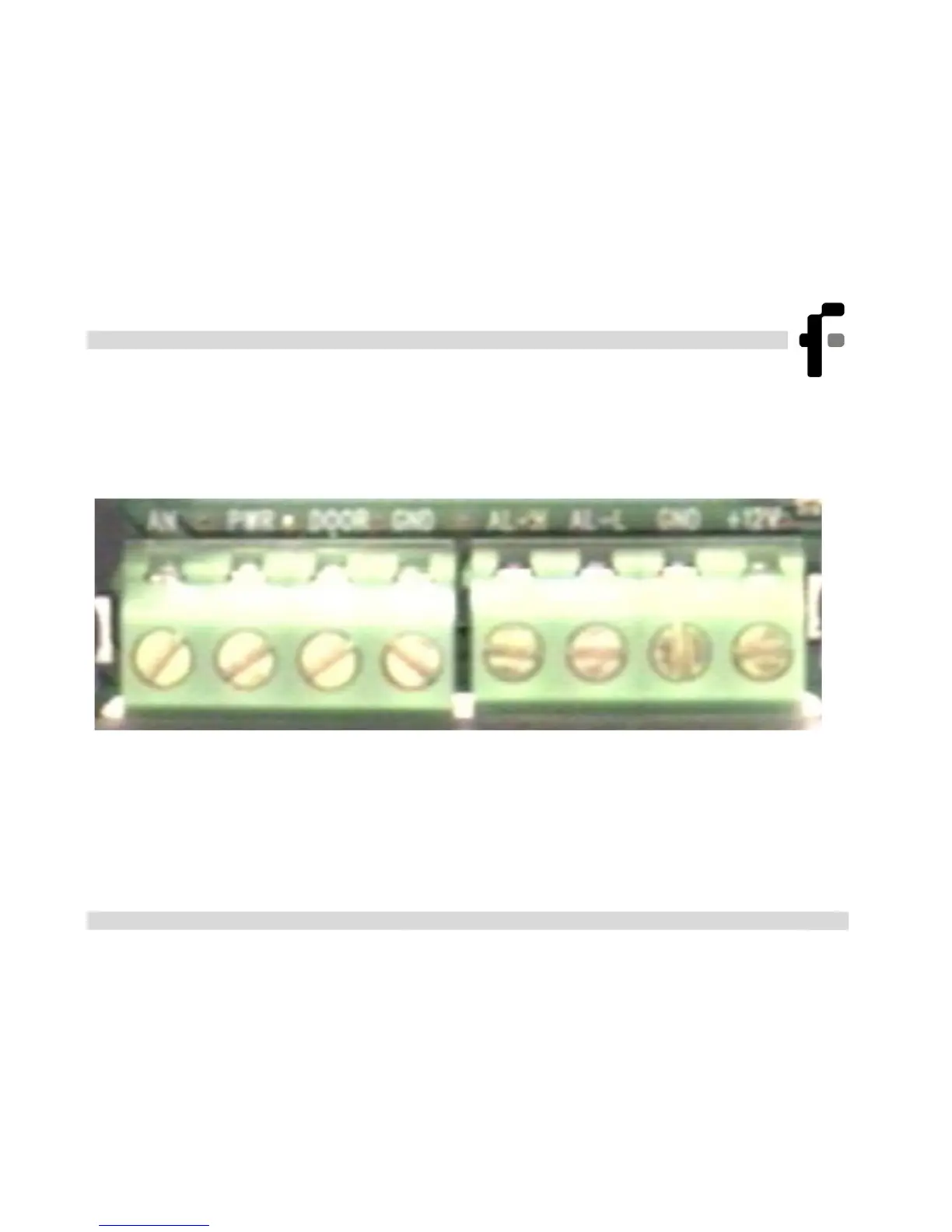

Figure 8: Cradle’s screw terminals
The table below lists the various screw terminals according to their
labels (from left to right) that are printed above the terminals:
