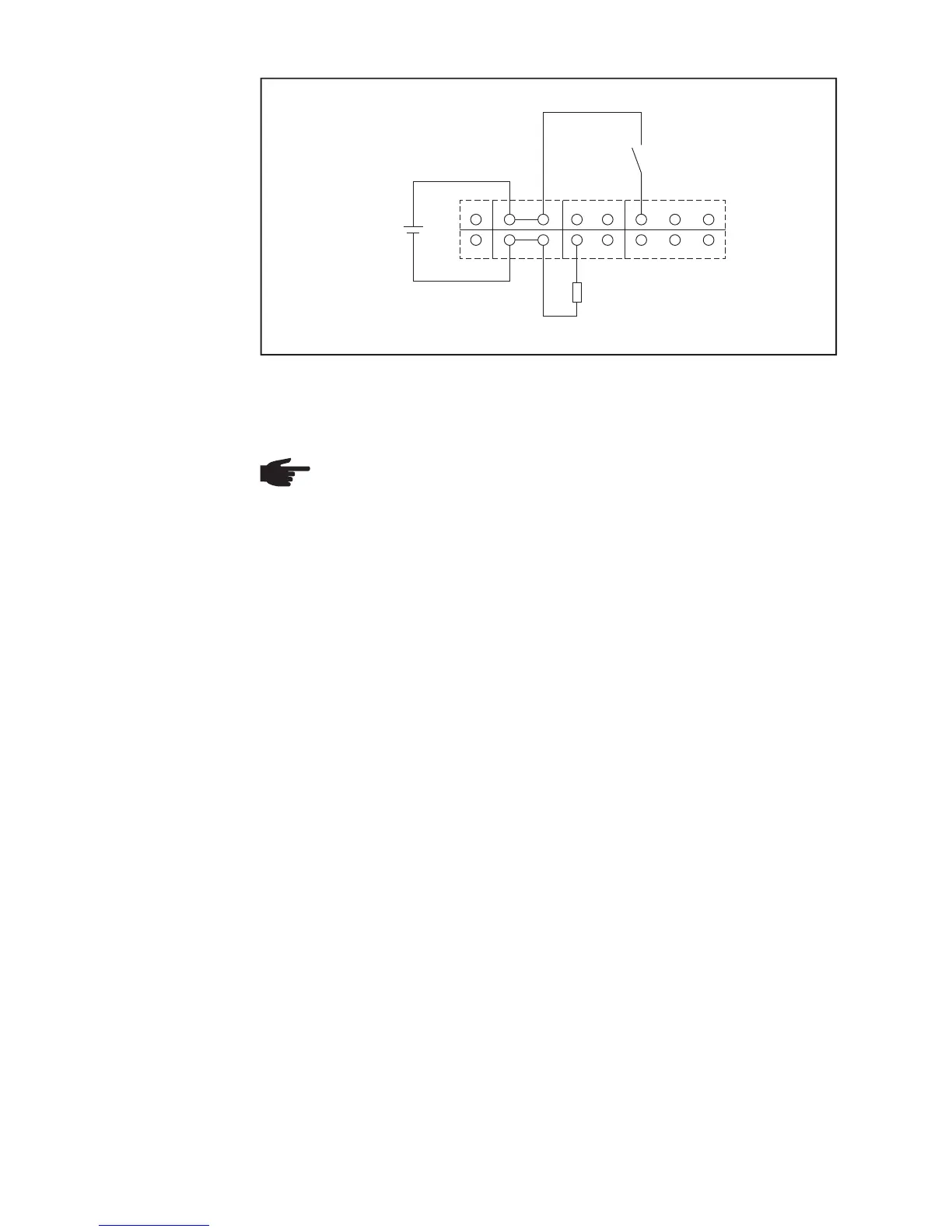

(4) External power supply
(5) Load
(6) Switch
10.7 V DC:
Fronius IG, Fronius IG Plus, Fronius IG Plus V, Fronius IG Plus A, Fronius CL, Fronius
CL USA, Fronius IG 300–500
12.8 V DC:
Fronius Galvo, Fronius Symo
NOTE! When the supply is via an external power supply, the external power sup-
ply must be galvanically isolated.
D- - -
D+ + +
02
57
8
93
4
6
1
(4)
(5)
(6)
10,7 / 12,8 - 24 V DC
