Installing Fronius Datamanager 2.0 in Fronius Solar
Net
Safety
Installing Invert-
ers with Fronius
Datamanager 2.0
in Fronius Solar
Net

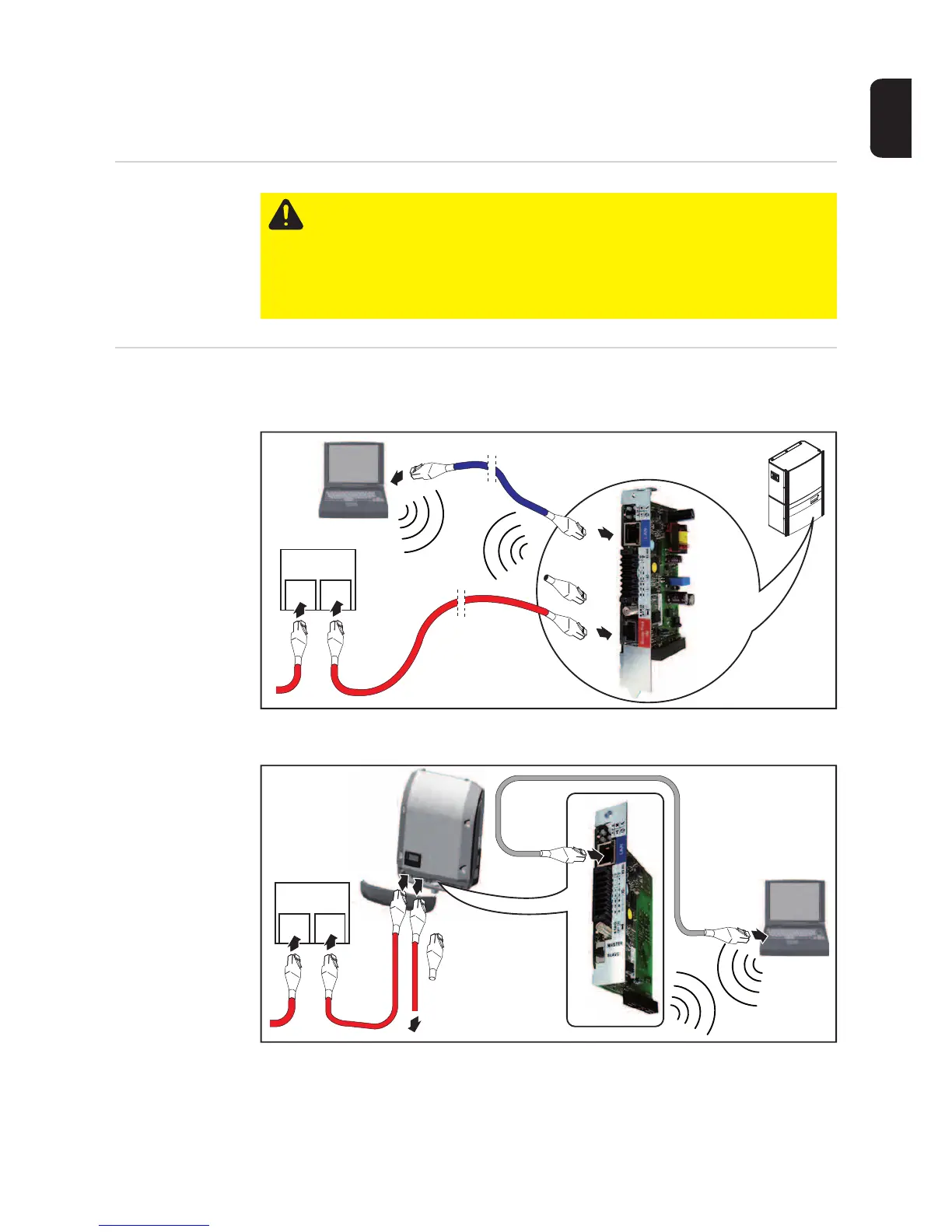

Fronius IG, Fronius IG Plus, Fronius IG Plus V, Fronius IG Plus A, Fronius CL, Fro-
nius CL USA, Fronius IG 300–500:
Fronius Galvo, Fronius Symo, Fronius Primo:
* Fronius Solar Net termination plug, if only one inverter with Fronius Datamanager
2.0 is linked to a PC
** Fronius Solar Net cable, if an inverter with Fronius Datamanager 2.0 is linked to a
PC and other DATCOM components
CAUTION! DATCOM components and/or the PC/laptop may be seriously dam-
aged if the Ethernet or Fronius Solar Net cables are connected incorrectly to the
Fronius Datamanager 2.0.
- The Ethernet cable should only be inserted into the LAN connection socket
(colored blue).
- The Fronius Solar Net cable should only be inserted into the Fronius Solar
Net IN connection socket (colored red).
DATCOM
IN OUT
2
4
5
IN
LAN
3
**
*
1
WLAN
***
DATCOM
IN OUT
5
6
LAN
*
WLAN
IN
OUT
IN
4
7
3
**
2x (IN + OUT)
1
2
***
