Fronius Datamanager 2.0 - Configuration Examples

13
EN-US
(1) On the cardboard packaging of the
inverter/Fronius Datamanager 2.0
(2) On the Fronius Datamanager 2.0
plug-in card
(3) On the inverter
Configuration Ex-
amples
(1) (2) (3)

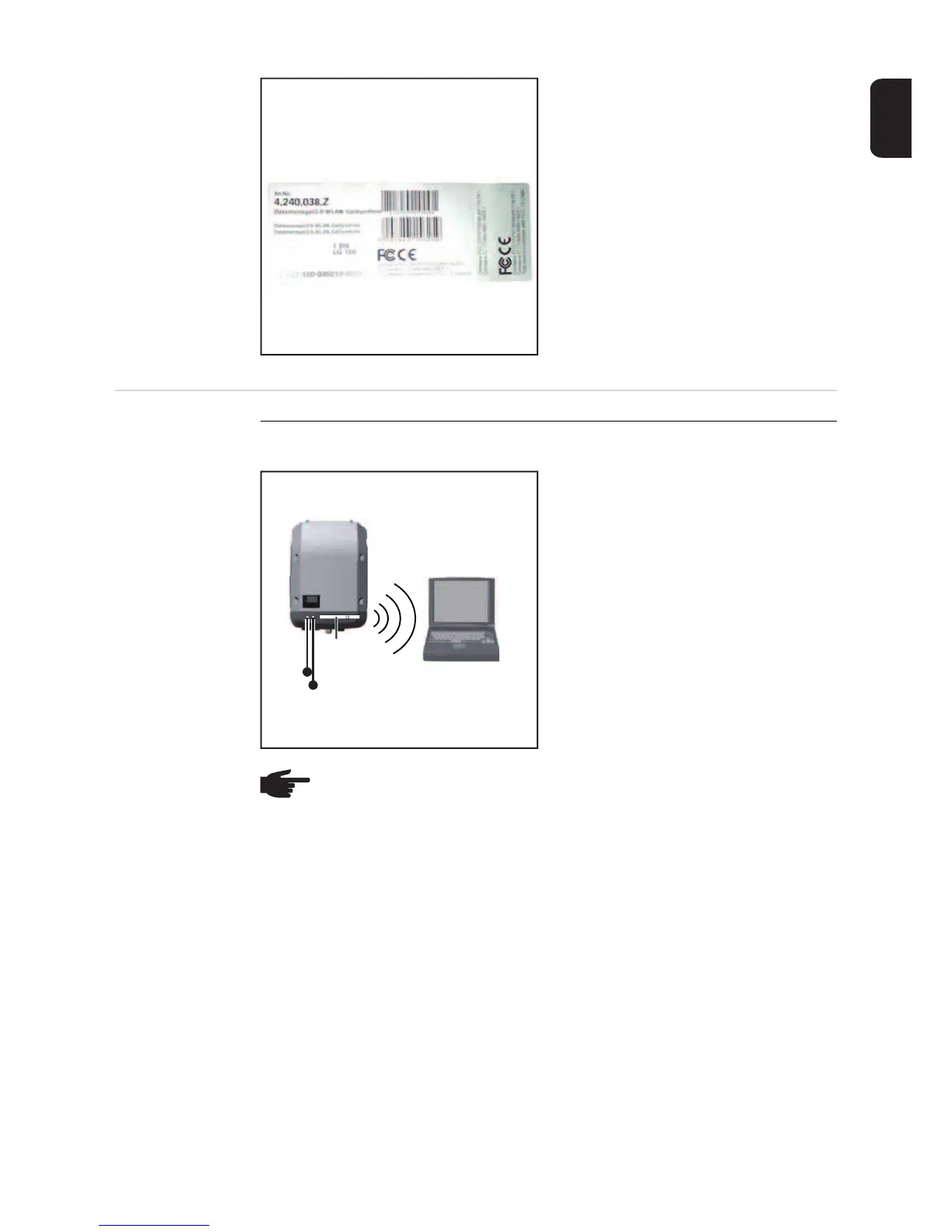

Linking Inverters with a Fronius Datamanager 2.0 Plug-in Card to a PC:
(1) Inverter
(2) Fronius Datamanager 2.0
(3) Fronius Solar Net termination plug
(4) PC/laptop
NOTE! When linking an inverter with Fronius Datamanager 2.0 to a PC, one Fro-
nius Solar Net termination plug must be connected at each free IN or OUT con-
nection.
IN
(1)
(2)
(3)
(4)
WLAN
OUT
