Fronius Datamanager 2.0 User Manual

14

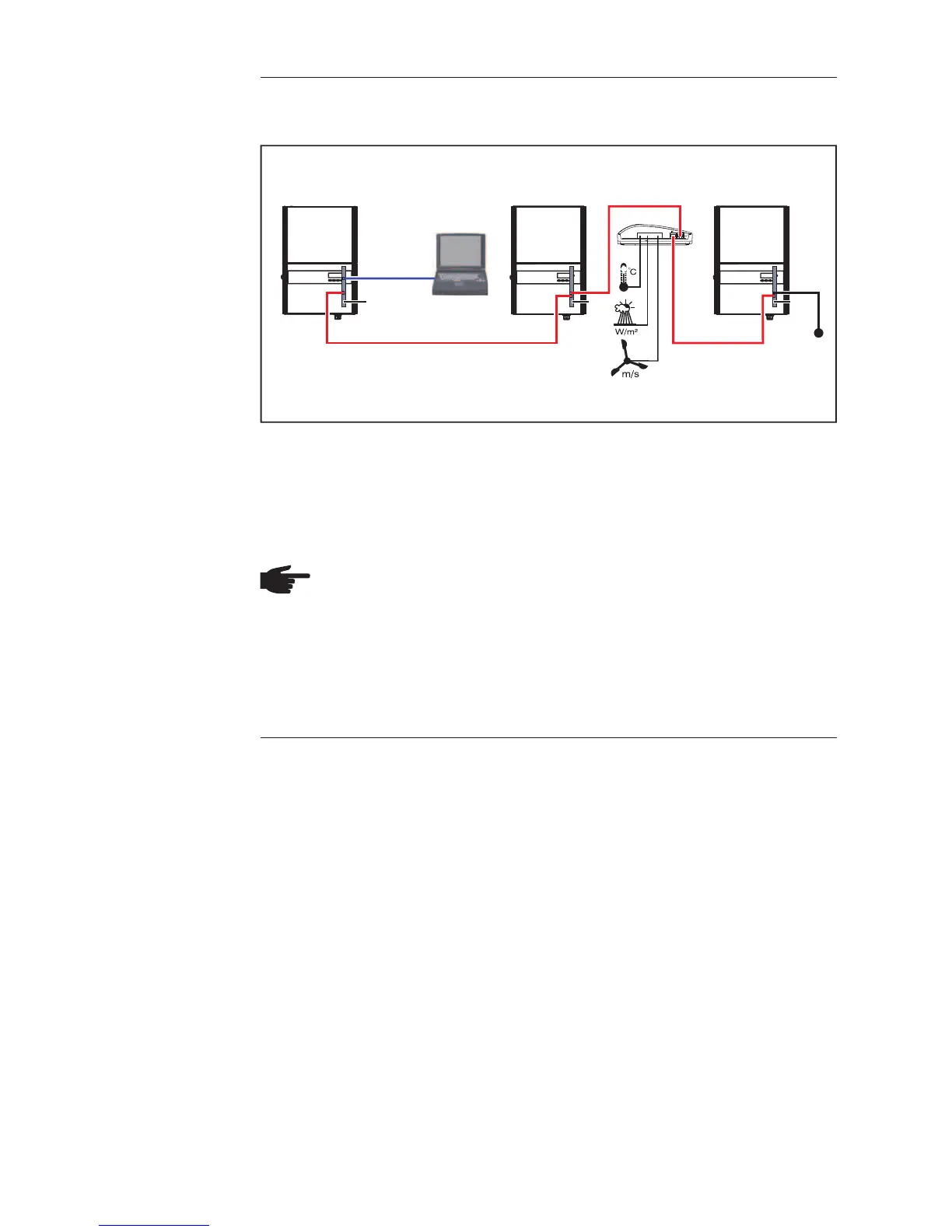

Linking Inverters with a Fronius Datamanager 2.0 Plug-in Card to Other Inverters,
a Fronius Sensor Box, and a PC:
(1) Inverter with
(2) Fronius Datamanager 2.0
(3) PC/laptop
(4) Inverter with
(5) Fronius Com Card
(6) Fronius Sensor Box
(7) Inverter
(8) Fronius Com Card
(9) Fronius Solar Net termination plug
NOTE! When linking several DATCOM components to Fronius Datamanager 2.0:
Use the data cable to connect the IN connection socket of Fronius Datamanager
2.0 with the OUT connection socket of the next DATCOM component. A Fronius
Solar Net termination plug must be inserted into the empty IN connection socket
of the last DATCOM component.
With the following inverters, the inverter with Fronius Datamanager 2.0 must al-
ways be connected either at the start or end of the data chain:
Fronius IG, Fronius IG Plus, Fronius IG Plus V, Fronius IG Plus A, Fronius CL,
Fronius CL USA and Fronius IG 300–500.
Linking Two Inverters with Fronius Com Card or Com Card Function to a Fronius
Datamanager Box 2.0 and a Smartphone:
IN
IN
IN
OUT
OUT
OUT
IN
(1)
(6)
(4) (7)
(2)
(3)
(5) (8)
LAN / WLAN
(9)

Fronius Datamanager 2.0 Specifications

General

Monitoring Platform	Fronius Solar.web
Communication Interfaces	Ethernet
Protocols	Modbus TCP
Data Logging	Integrated data logger
Web Interface	Yes
Compatibility	Fronius inverters
Power Supply	Via inverter
Mounting	Wall mounting
