Fronius Datamanager 2.0 User Manual

25
EN-US

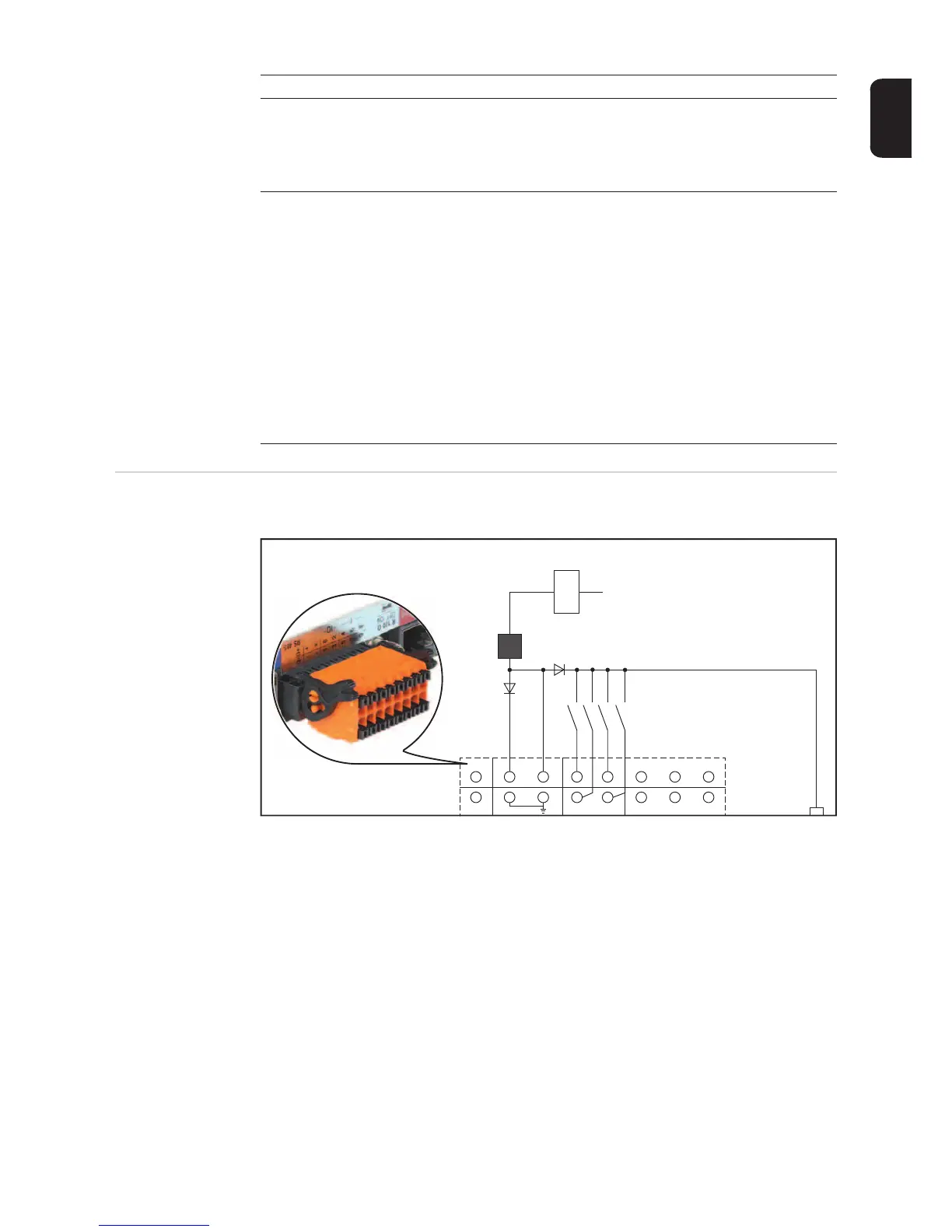

Schematic Con-
nection of I/Os
Supply via the Fronius Datamanager 2.0 Plug-in Card:
(1) Power supply unit
(for Fronius Datamanager 2.0 with Fronius Com Card function only)
(2) Current limit
(3) Fronius Solar Net IN connection socket
115–230 V AC:
Fronius IG, Fronius IG Plus, Fronius IG Plus V, Fronius IG Plus A, Fronius CL, Fronius
CL USA, Fronius IG 300–500
12.8 V DC:
Fronius Galvo, Fronius Symo
Supply via external power supply:
(12) Fronius Solar Net OUT connection socket
Fronius Solar Net output colored red for connecting other DATCOM compo-
nents (e.g., inverters, sensor cards)
For Fronius Datamanager Box 2.0 only!
(13) External power supply connection
For connecting an external power supply when the power supply within Fronius
Solar Net is insufficient (e.g., when too many DATCOM components are in-
stalled in Fronius Solar Net).
IMPORTANT! The external power supply unit for the Fronius Datamanager
Box 2.0 must be securely disconnected from components supplying grid volt-
age (SELV or Class 2 for USA/Canada).
The output power of the power supply unit may not exceed a max. of 15 VA/
1.25 A.
If the power supply is sufficient, the Supply LED (4) lights up green.
For an external power supply, use only the Fronius power supply unit!
For Fronius Datamanager Box 2.0 only!
No. Function
(1) 115 - 230 V AC
12 V DC
10,7 / 12,8 V DC
(2)
300 mA
(3)
D- - -
D+ + +
02
57
8
93
46
1

Fronius Datamanager 2.0 Specifications

General

Monitoring Platform	Fronius Solar.web
Communication Interfaces	Ethernet
Protocols	Modbus TCP
Data Logging	Integrated data logger
Web Interface	Yes
Compatibility	Fronius inverters
Power Supply	Via inverter
Mounting	Wall mounting
