36
*** Ethernet cable is not included in the scope of supply for the Fronius Datamanager
2.0/Fronius Datamanager Box 2.0
Connection between Fronius Datamanager 2.0 and PC via LAN or WLAN
Insert and lay the Ethernet cable in the inverter like a data communication cable in ac-
cordance with the operating instructions for the inverter
Insert the Ethernet cable into the LAN connection socket
Insert the Ethernet cable into the PC/laptop or into a suitable network connection sock-
et
If only one inverter with Fronius Datamanager 2.0 is linked to a PC:
Fronius IG, Fronius IG Plus, Fronius IG Plus V, Fronius IG Plus A, Fronius CL, Fronius
CL USA, Fronius IG 300 - 500:
Insert the Fronius Solar Net termination plug into the Fronius Solar Net IN connection
socket
Fronius Galvo, Fronius Symo, Fronius Primo:
Insert a Fronius Solar Net termination plug into the Solar Net IN connection socket and
the Solar Net OUT connection socket
If other DATCOM components are connected to the network, besides the inverter with
Fronius Datamanager 2.0:
Insert the Fronius Solar Net cable into the Fronius Solar Net IN connection socket of
the Fronius Datamanager 2.0
Connect the other DATCOM components
IMPORTANT! A Fronius Solar Net termination plug must be inserted into the empty
IN connection socket of the last DATCOM component.

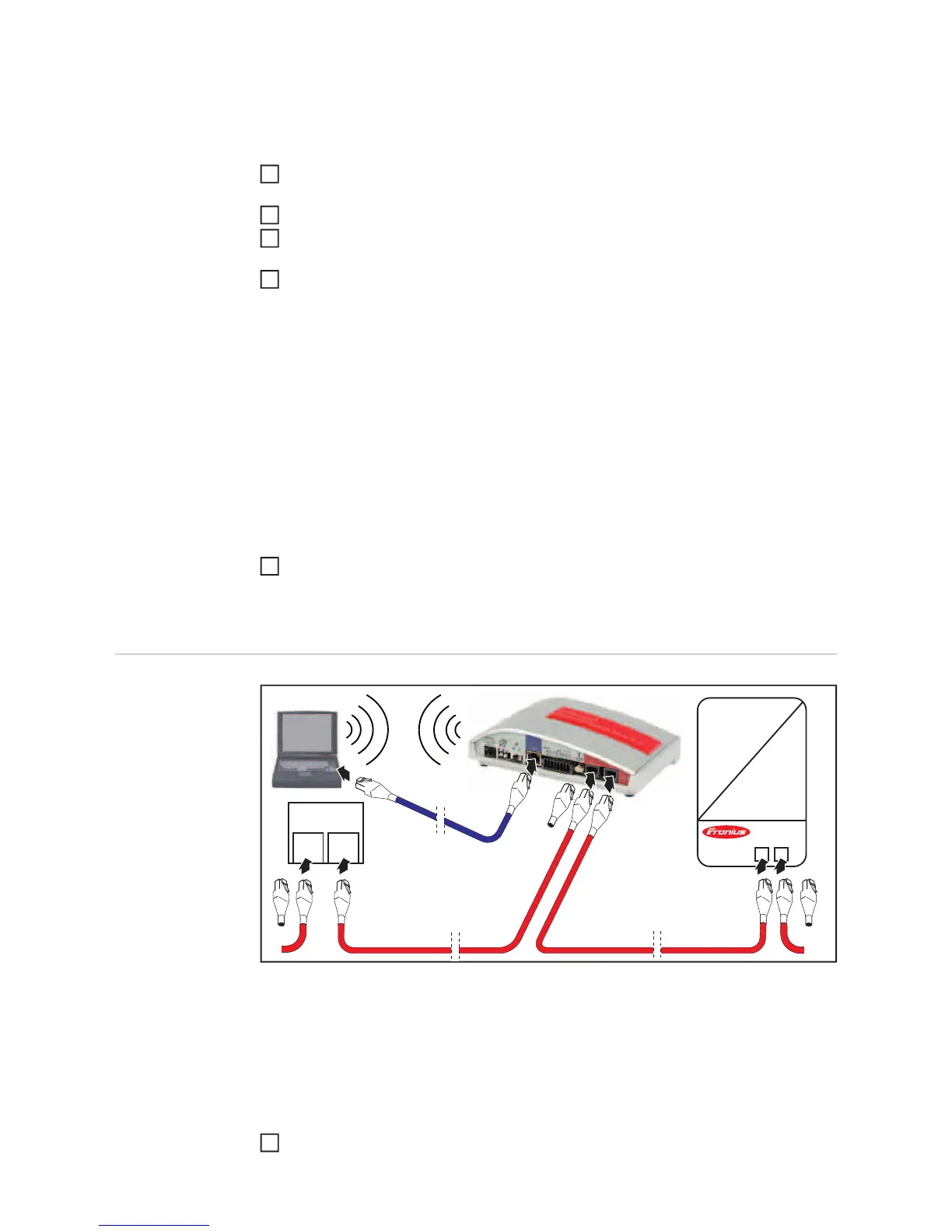

Installing Fronius
Datamanager Box
2.0 in Fronius So-
lar Net
* Fronius Solar Net termination plug for the last DATCOM component
** Fronius Solar Net cable, if a Fronius Datamanager Box 2.0 is linked to a PC and
other DATCOM components
*** Ethernet cable is not included in the scope of supply for the Fronius Datamanager
2.0/Fronius Datamanager Box 2.0
Connection between Fronius Datamanager 2.0 and PC via LAN or WLAN
Insert the Ethernet cable into the LAN connection socket
1
2
3
4
5
DATCOM
IN OUT
IN
LAN ***
**
*
WLAN
IN
OUT
=
~
2
6
2
2
3
3
3
3
OUT
**
*
**
*
1
