Fronius Datamanager 2.0 User Manual

87
EN-US

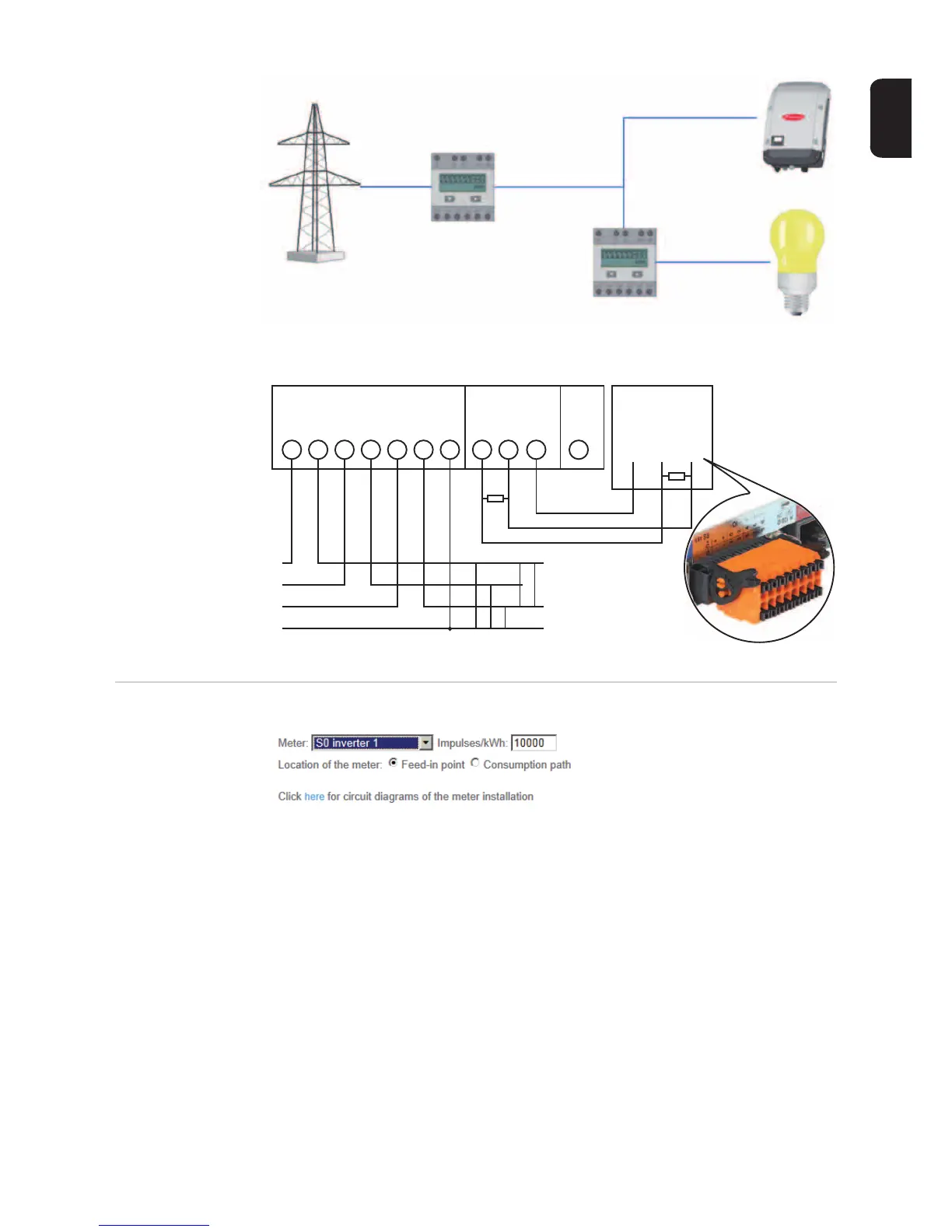

Connecting the Fronius Smart Meter to Fronius Datamanager 2.0:
S0 inverter
(1a) Counter position at feed-in point
The power of feeding in and energy are measured. The consumption is determined
using these values and the system data.
An S0 counter must be configured at this position in order to count the fed-in ener-
gy.
(1b) Counter position in consumption branch
The power consumed and energy are measured directly. The power of feeding in
and energy are determined using these values and the system data.
An S0 counter must be configured at this position in order to count the energy con-
sumed.
(1c) Field for entering the impulse per kWh
(1a)
(1b)
Fronius Smart Meter
INPUT
L1
L2
L3
N
OUTPUT
RS 485
Rx / Tx GND
DT/PE
1
A B C D
3 4 6 7 9 11
LOAD
XXX
X
X
X
+
-
Fronius
Datamanager
2.0
120 Ω
ON
D+ D--
(1)
(2)
(1a) (1b)
(1c)

Fronius Datamanager 2.0 Specifications

General

Monitoring Platform	Fronius Solar.web
Communication Interfaces	Ethernet
Protocols	Modbus TCP
Data Logging	Integrated data logger
Web Interface	Yes
Compatibility	Fronius inverters
Power Supply	Via inverter
Mounting	Wall mounting
