Fronius Primo 3.0-1 Service Manual

121
EN

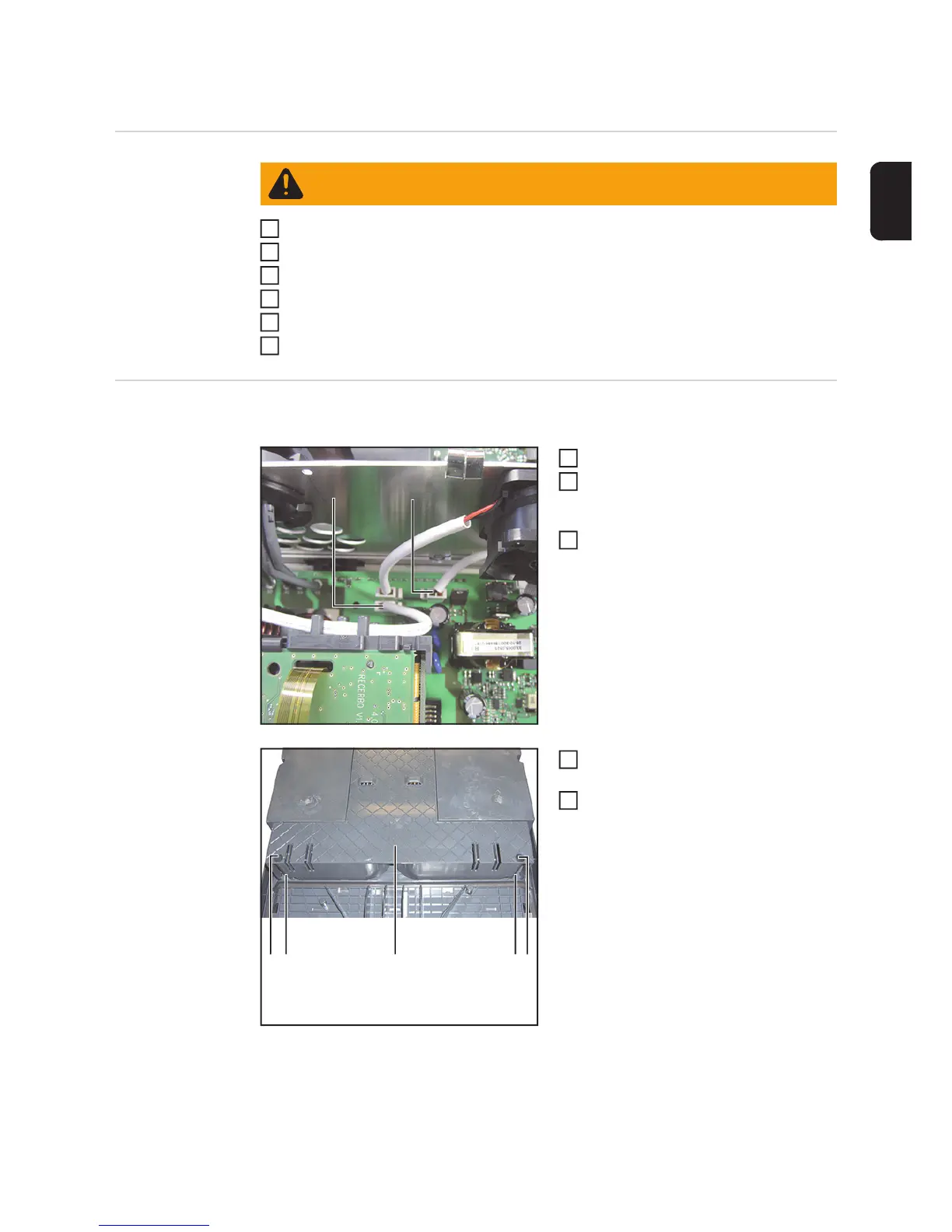

Replacing the external fan
Preparatory work
Set the DC disconnector to OFF
Disconnect the AC supply
Remove the DATCOM cover
Disconnect the data communication cables if necessary
Release the device from the wall bracket and remove.
Remove the power stage set cover
Replacing the ex-
ternal fan
Replacing the right external fan:
Disconnect the Molex plug (2)
Release the cables from the clamping
noses and feed them out
Turn the inverter carefully so that the
back is accessible
Remove the two 5x14 mm TX25
screws (3)
Release the fan holder (5) locking de-
vice (4) and open the holder
WARNING! An electric shock can be fatal.
Follow the five safety rules.
1
2
3
4
5
6
(1)
(2)
1
2
3
(3)(4)(3)(4) (5)
4
5

Fronius Primo 3.0-1 Specifications

General

Purpose	Solar panel
Efficiency	98 %
Output power	3000 W
Input current	12 A
Input voltage	80 - 1000 V
Output voltage	- V
Input frequency	50 - 60 Hz
Power supply type	Auto
Adjustable output voltage	-
International Protection (IP) code	IP65
Product color	Black, Grey
Built-in display	Yes
Operating temperature (T-T)	-40 - 55 °C

Weight and Dimensions

Depth	204 mm
Width	431 mm
Height	645 mm
Weight	21500 g
