Fronius Primo 3.0-1 Service Manual

114

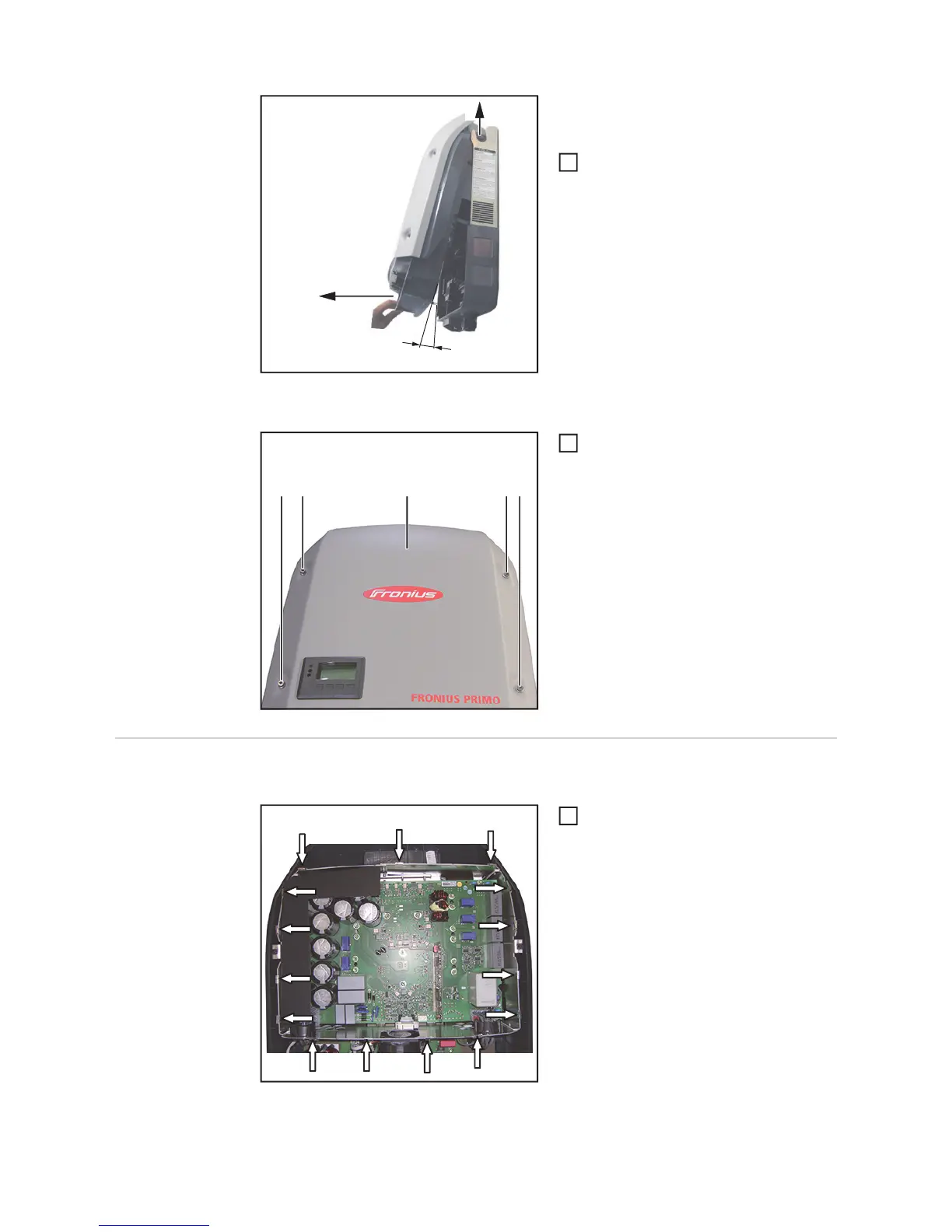

IMPORTANT! Do not exceed an opening
angle of 11°.
In the connection area, pull the inverter
forward out of the wall bracket, then lift
the inverter and remove it in an
upwards direction.
Opening the housing
Loosen the four 5x18 mm TX25 screws
(5) with seal rings until the power stage
set cover (6) can be removed.
Closing the hous-
ing
Closing the housing
Make sure that the 15 EMC springs (1)
are seated correctly.
4.33 in.
110 mm
max. 11°
5
(5) (5) (5)(5)(6)
6
(1)
1

Fronius Primo 3.0-1 Specifications

General

Purpose	Solar panel
Efficiency	98 %
Output power	3000 W
Input current	12 A
Input voltage	80 - 1000 V
Output voltage	- V
Input frequency	50 - 60 Hz
Power supply type	Auto
Adjustable output voltage	-
International Protection (IP) code	IP65
Product color	Black, Grey
Built-in display	Yes
Operating temperature (T-T)	-40 - 55 °C

Weight and Dimensions

Depth	204 mm
Width	431 mm
Height	645 mm
Weight	21500 g
