Fronius Primo 3.0-1 Service Manual

126

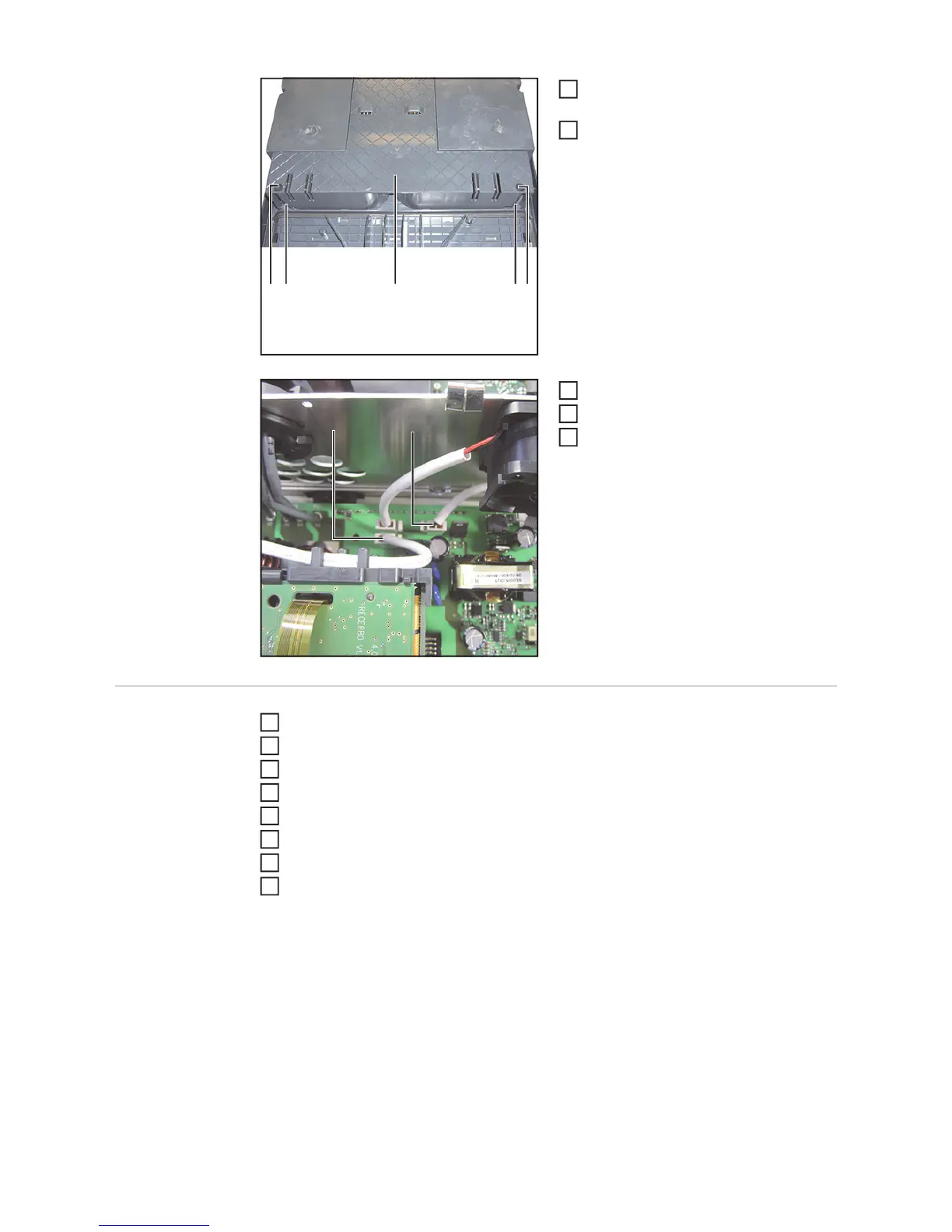

Refit the fan holder (5), making sure
that the locking devices (4) engage.
Secure the fan holder (5) using two
5x14 mm TX25 screws (3)
Tightening torque = 2.15 Nm
Carefully turn the inverter round
Fit the Molex plug (1)
Secure the cables in the clamping no-
ses
And finally... Check that the sealing plug is not leaking
Fit the power stage set cover
Place the device in the wall bracket and screw in place
Connect the data communication cables if necessary
Fit the DATCOM cover
Restore the AC supply
Set the DC disconnector to ON
Switch on the inverter then start a fan test via the display (see operating instructions)
