Fronius Primo 3.0-1 Service Manual

150
The ground conductor leakage current must not exceed the limit value of 3.5 mA during
this measurement (direct or differential current method**).
**) These requirements comply with DIN VDE 0701-0702 and ÖVE/ÖNORM E8701-1. Also
refer to the applicable requirements and standards in your country.

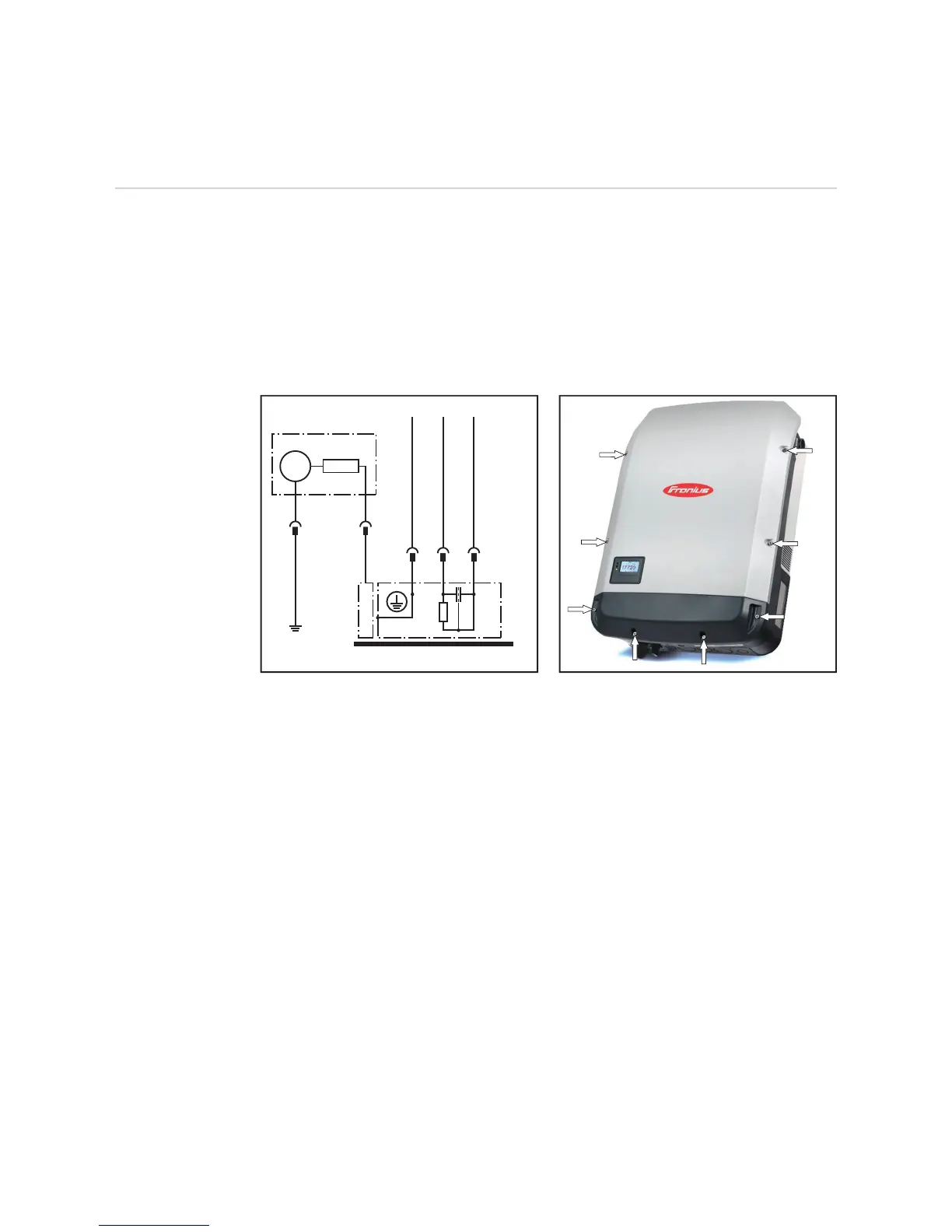

Contact Current - Only Perform The Measurement If A Ground Conductor Current Measurement Has
Been Carried Out Successfully
- As Before, The Device Must Be Switched On.
The Measurement Is Taken Between A Grounded Point And The Touchable, Conductive
Part That Is Not Connected To The Ground Conductor.
The Contact Current Must Not Exceed 0.5 Ma *).
1 Measuring Device
2 Inverter
6.2 Touchable, Conductive Part Not Connected To
The Ground Conductor
8 Isolated Setup Of Test Piece
9 Measuring Line
Ri 1 - 2 K
Touchable, Conductive Parts Not Connected To The
Ground Conductor
*) These Requirements Comply With Din Vde 0701-0702 And Öve/önorm E8701-1. Also
Refer To The Applicable Requirements And Standards In Your Country.
PE
mA
L1
1
2
9
N
PE L1 N
9
8
6.2
R
i
1-2kΩ

Fronius Primo 3.0-1 Specifications

General

Purpose	Solar panel
Efficiency	98 %
Output power	3000 W
Input current	12 A
Input voltage	80 - 1000 V
Output voltage	- V
Input frequency	50 - 60 Hz
Power supply type	Auto
Adjustable output voltage	-
International Protection (IP) code	IP65
Product color	Black, Grey
Built-in display	Yes
Operating temperature (T-T)	-40 - 55 °C

Weight and Dimensions

Depth	204 mm
Width	431 mm
Height	645 mm
Weight	21500 g
