Fronius Primo 3.0-1 Service Manual

119
EN

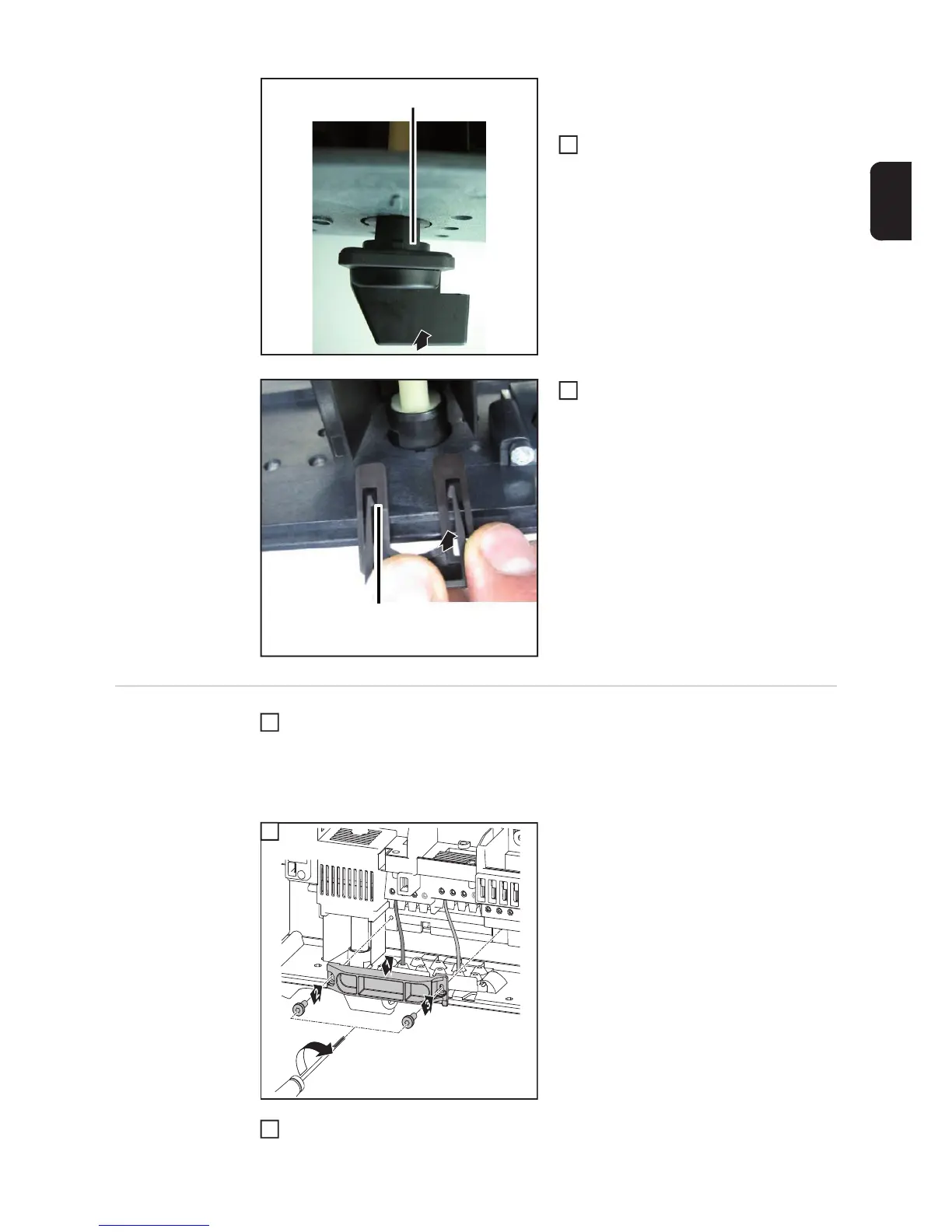

IMPORTANT! Note the recesses when in-
serting the control switch with shaft.
Feed the control switch with shaft (2)
through the housing. (0 position)
Secure the operating shaft with the re-
taining clip (1)
And finally... Connect the DC and AC cables to the terminal block
Tightening torque = 1.5 - 1.8 Nm
Tighten any grounding terminals on the DC disconnector (TX 20) that are not required
or are not in use to 1.6 Nm.
4
Fit the strain-relief device
Tightening torque = 1.5 - 1.7 Nm
Place the device in the wall bracket and screw in place
(2)
3
3
(1)
4
4
1
2x TX20
1,5 - 1,7 Nm
2
3

Fronius Primo 3.0-1 Specifications

General

Purpose	Solar panel
Efficiency	98 %
Output power	3000 W
Input current	12 A
Input voltage	80 - 1000 V
Output voltage	- V
Input frequency	50 - 60 Hz
Power supply type	Auto
Adjustable output voltage	-
International Protection (IP) code	IP65
Product color	Black, Grey
Built-in display	Yes
Operating temperature (T-T)	-40 - 55 °C

Weight and Dimensions

Depth	204 mm
Width	431 mm
Height	645 mm
Weight	21500 g
