Fronius TPS 4000 Operating Instructions

Preparing the TPS 2700/3200 auto-transformer
mains cable
Specified mains
cable for auto-
transformer, ver-
sions 1 and 2
For TPS 2700/3200 auto-transformers only
Cross-section Length Connection cable Strain relief device
AWG12
3,3 mm² (.17 sq.in.)
5 m
(19.96 in.)
43,0004,2323 42,0300,1815
Preparing the
auto-transfor-
mer mains cable
and strain relief
device

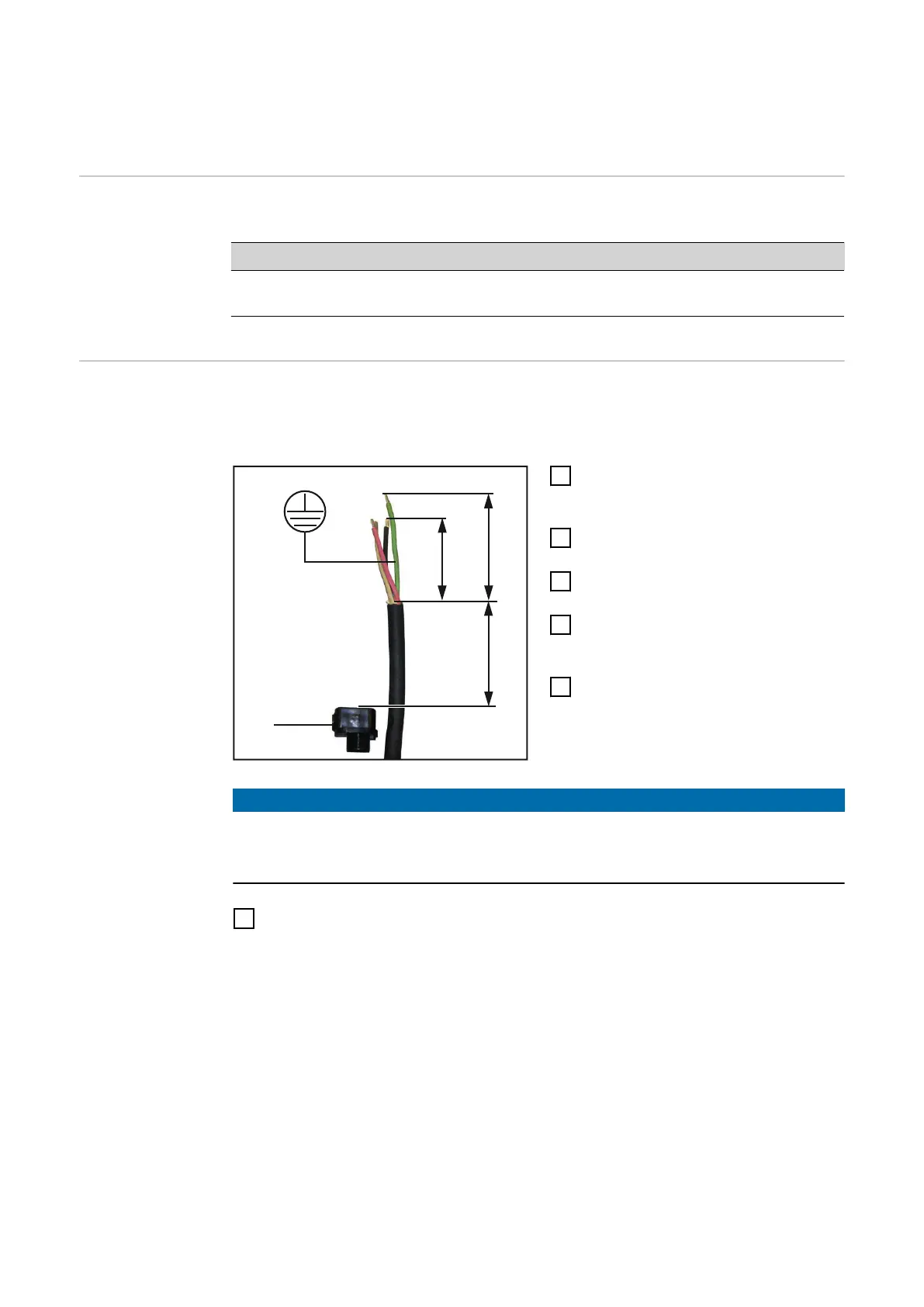

The following strain relief device is supplied for the auto-transformer mains ca-
ble:
-
AWG 12 auto-transformer strain relief device for mains cable
110 mm (4.33 in.)
green
(1)
90 mm (3.54 in.)
110 mm (4.33 in.)
1
Turn the main device switch on the
auto-transformer to the „O“ positi-
on
2
Pull out the mains plug and dis-
connect the power supply
3
Remove the auto-transformer side
panel
4
Strip approx. 110 mm (4.33 in.)
from the auto-transformer mains
cable
5
Shorten the phase conductors to
90 mm
NOTE!
If wire end ferrules are not used, there is a risk of short circuits between indivi-
dual phase conductors and the PE conductor. Fit wire end ferrules to all phase
conductors and the PE conductor of the stripped mains cable.
6
Fit wire end ferrules to the phase conductors and the PE conductor of the
autotransformer mains cable.
