Fronius TPS 4000 - Signal Waveforms: Program Number & Command Values (With Errors)

70

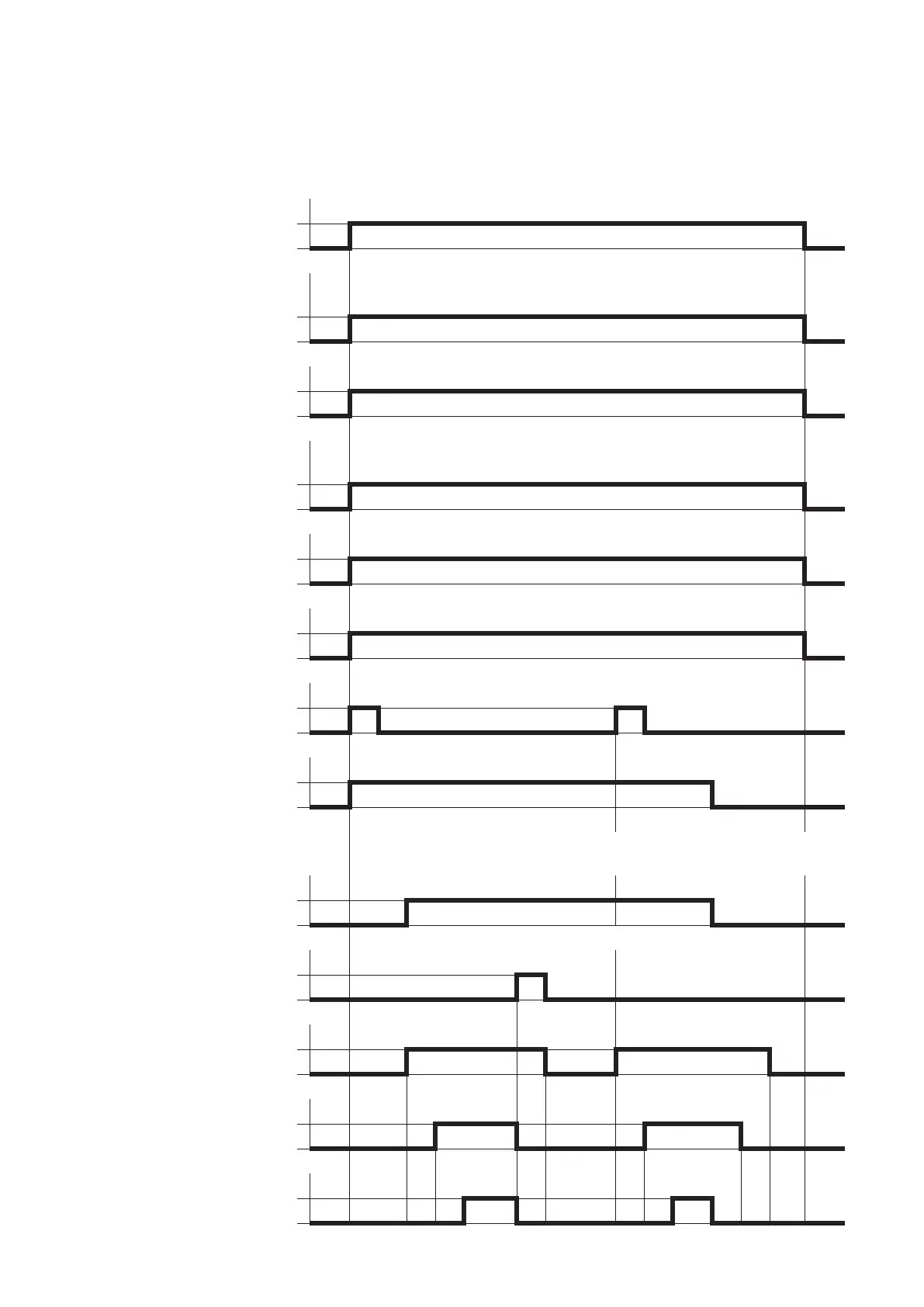

Signal waveform when selecting via program num-
ber and command values with errors
Mode bit 0-2
Program standard /
pulsed-arc
Welding power (command val-
ue)
(Welding power)
Arc length correction
(Arc length correction)
Pulse correction (command
value)
(Pulse correction)
Burn back time
(Burn back time)
Robot ready
(Robot ready)
Source error reset
(Source error reset)
Program number
(Program bit 0-6)
NOTE! Further information is available in the „Fronius-recommend-
ed procedures“ sub-section
Welding start
(Welding start)
Error (e.g. „no arc“)
Process active signal
(Process active signal)
Arc stable
(Arc stable)
Main current signal
(Main current signal)
