Fronius TPS 4000 - Signal Waveforms: Job Number (Limit Stop)

74

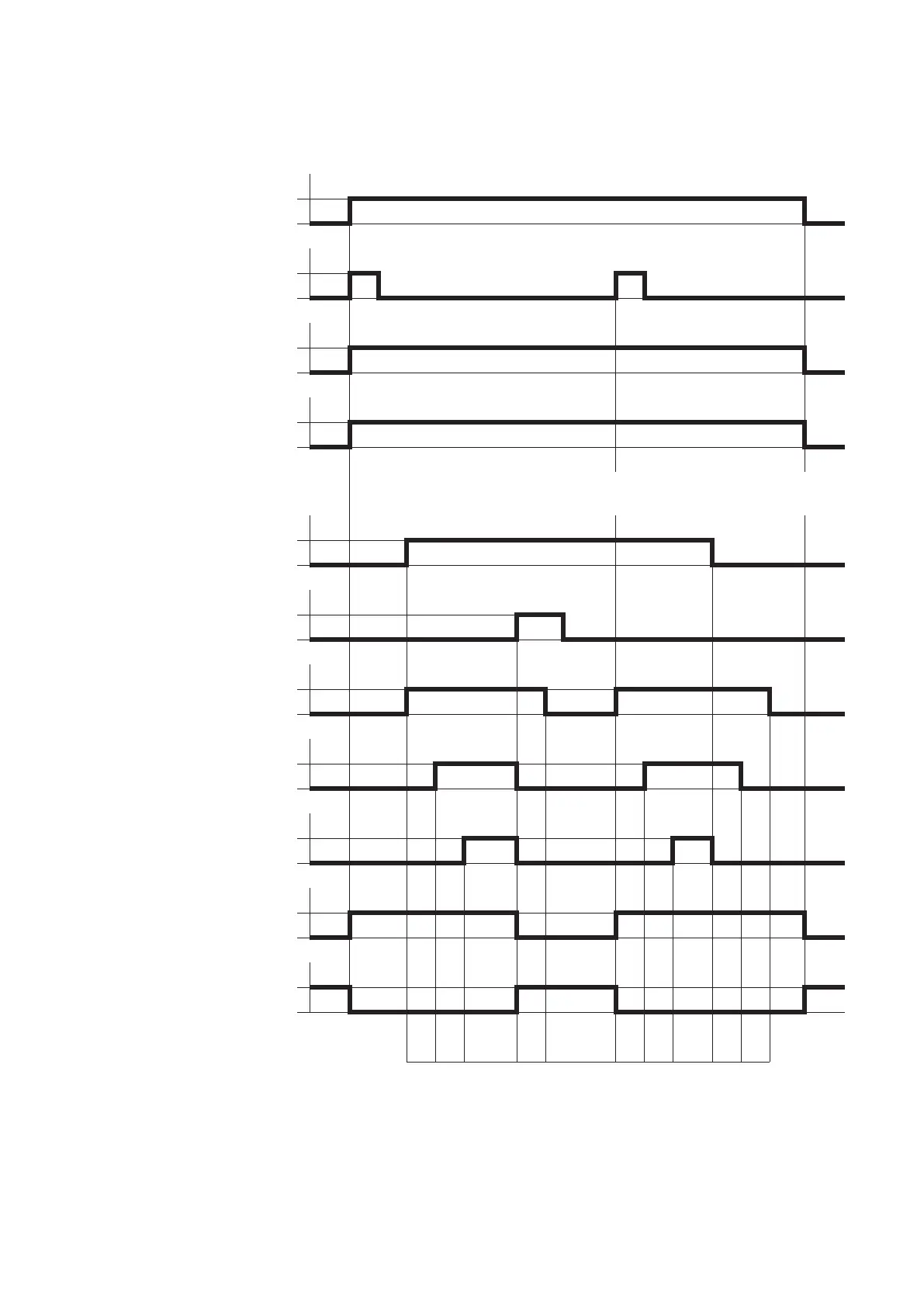

Signal waveform when selecting via job number with
limit signal (machine stops)
(1) Gas pre-flow time
(2) Starting current
(3) Welding current
(4) End current
(5) Gas post-flow time
Robot ready
(Robot ready)
Source error reset
(Source error reset)
Mode bit 1
(Job mode)
Job number
(Job / Program bit 0-7)
NOTE! Further information is available in the „Fronius-recommend-
ed procedures“ sub-section
Welding start
(Welding start)
Process active
(Process active)
Error Limit, Switch-off
(Stop)
Arc stable
(Arc stable)
Main current signal
(Main current signal)
Power source ready
(Power source ready)
Error number
(Error number)
(1) (2) (3) (5) (1) (2) (3) (4) (5)
