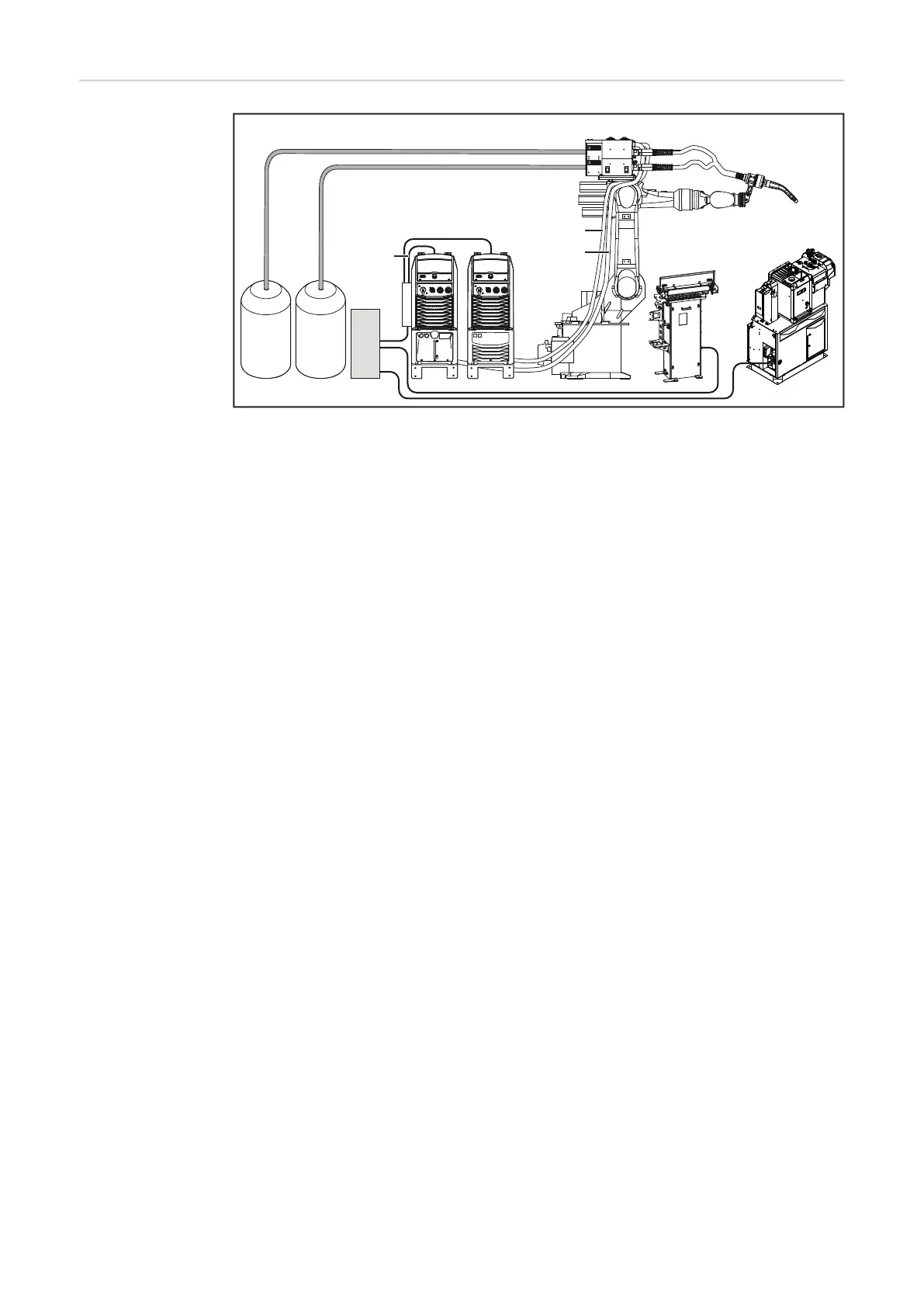

System overview
(1) Welding wire drum
(2) Wirefeeding hoses
(3) Robot controls
(4) Connection cable from robot con-
trols to RI FB Pro/i TWIN Control-
ler
(5) Connection cable from robot con-
trols to TWIN welding torch
change station
(6) Pulse power source 1
+ RI FB Pro/i TWIN Controller
+ cooling unit CU 2000i / Part 1
+ remote control RC Panel Pro
+ TU Podium (screwed in place)
(7) Pulse power source 2
+ cooling unit CU 2000i / Part 2
+ remote control RC Panel Pro
+ TU Podium (screwed in place)
(8) SpeedNet cable from RI FB Pro/i
TWIN Controller to power source
1
(9) SpeedNet cable from RI FB Pro/i
TWIN Controller to power source
2
(10) HP 95i CON /G /10 m intercon-
necting hosepack
(11) HP 95i CON /W /10 m intercon-
necting hosepack
(12) Robot
(13) Wirefeeder WF 30i R /TWIN
+ WF Mounting wirefeeder holder
+ TWIN Basic Kit
(14) MHP 2x500 A W/FSC TWIN hose-
pack
(15) CrashBox
(16) MTB 2x500 A PA welding torch
+ OPT/i MTB 11.5° sym.
(17) TWIN welding torch change sta-
tion TXi TWIN
(18) Connection cable from robot con-
trols to welding torch service sta-
tion
(19) Welding torch service station Ro-
bacta TSS /i
(1) (1)
(2)
(3)
(4)
(5)
(6) (7)
(17)
(16)
(15)
(14)
(13)
(12)
(10)
(8)
(9)
(11)
(18)
(19)
