Fronius TPS/i Robotics TWIN Push User Manual

72
Install CrashBox, Torch Hosepack and TWIN Weld-
ing Torch

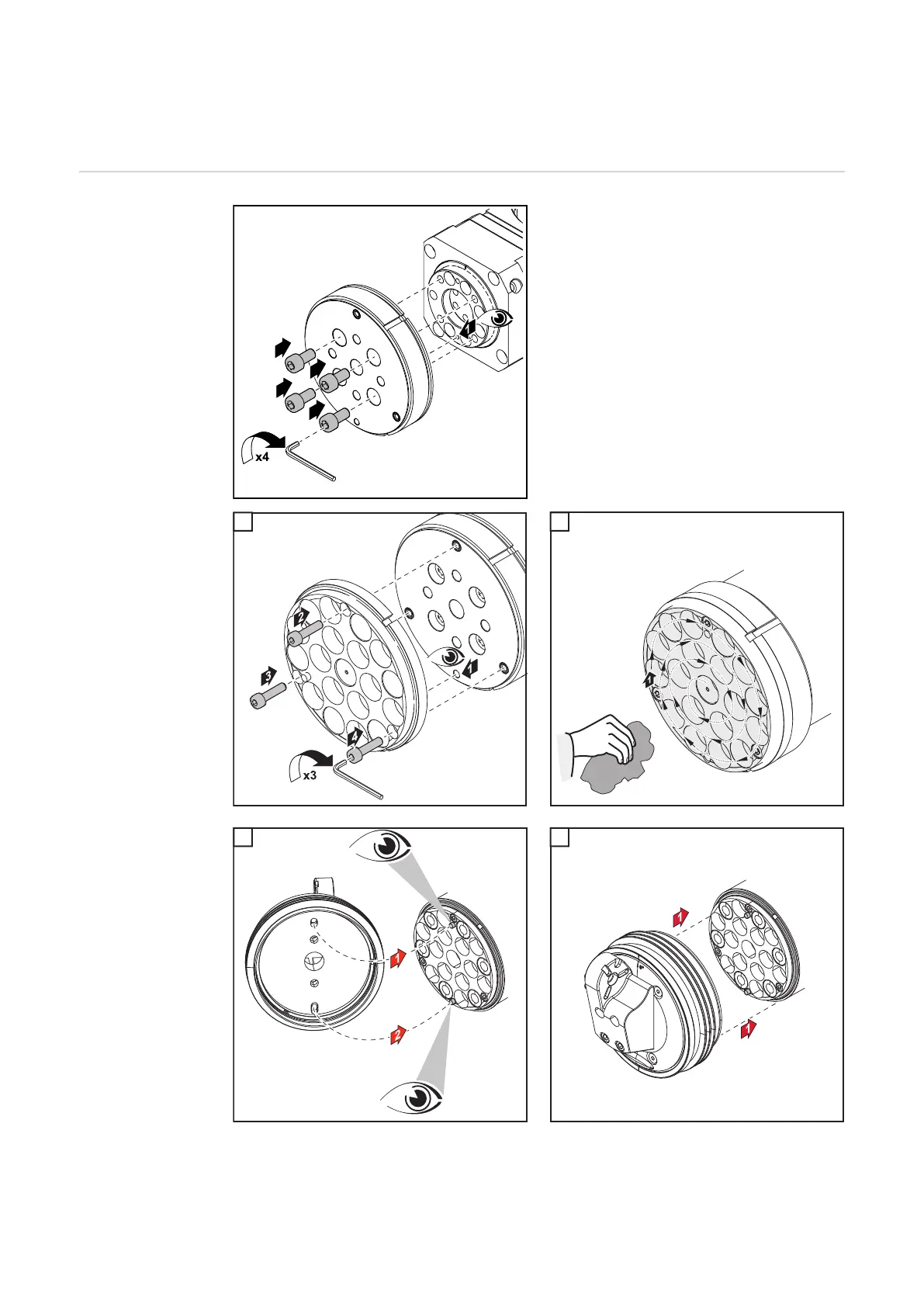

Mounting the
CrashBox /i on
the robot
Observe the torques when fitting the robot
flange:
Max. tightening torque for screws with
strength class 8.8
M4 3.3 Nm
M5 5.0 Nm
M6 6.0 Nm
M8 27.3 Nm
M10 54 Nm
M12 93 Nm
1 2
3 4
3,3 Nm
1
2
3
4
