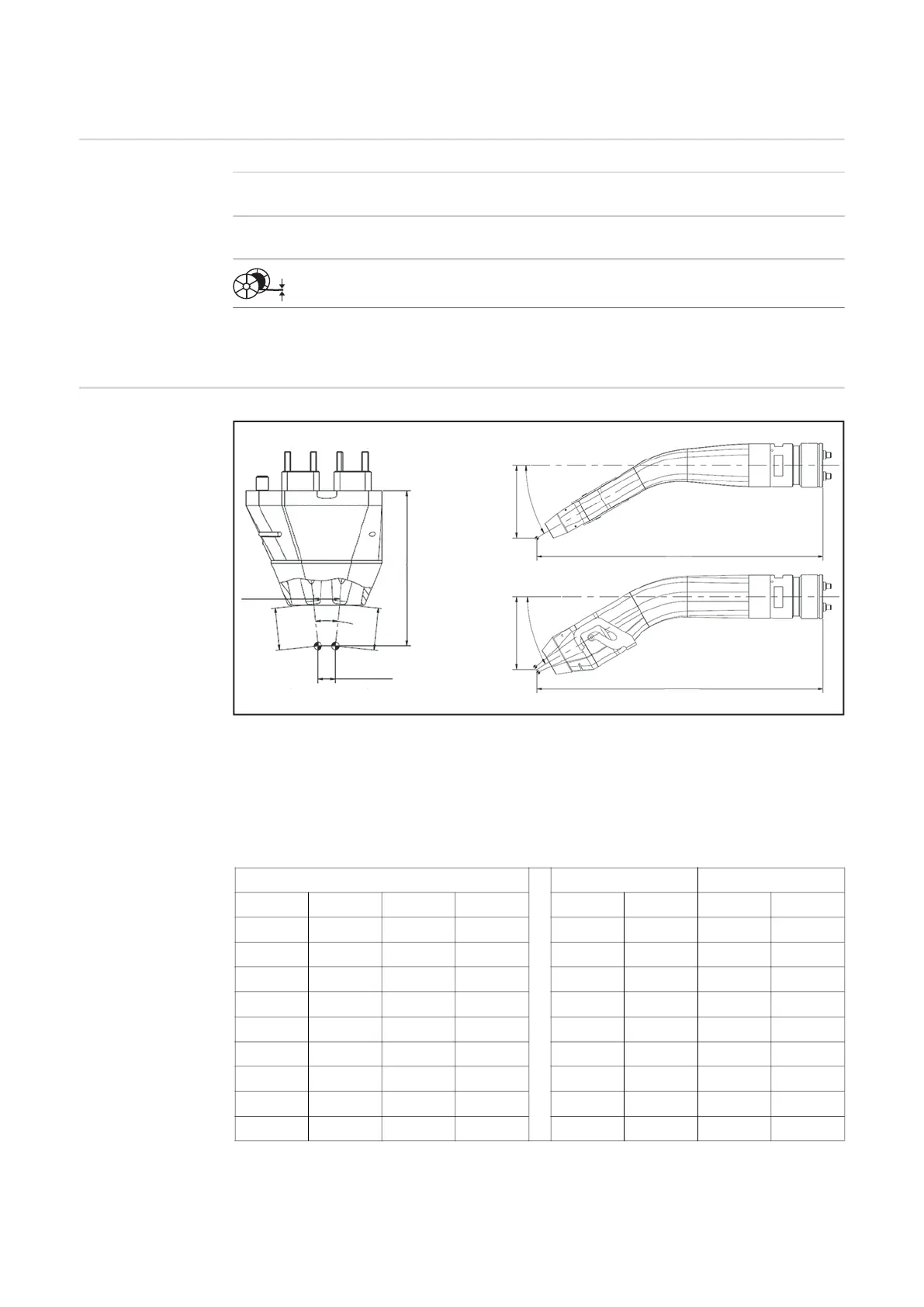

Robot welding torch
MTB 2x500i R
Dimensions de-
pend on the con-
tact tip tilt angle
X / I
max
(10 min/40 °C)
M21 (EN 439)
100% D.C.* 1000 (2 x 500)
X / I
max
(10 min/40 °C)
C1 (EN 439)
100% D.C.* 1000 (2 x 500)
1.2 - 1.6 (0.05 - 0.06)
* D.C. = duty cycle
Ø
[mm (in.)]
s Contact tip distance
L
1
TCP - edge of gas nozzle length
α Contact tip tilt angle
SO Stick out
x Wire electrode distance
H Height
β Angle of curvature
L Length
α = 11.5° β = 30° / PB & PA β = 45° / PB & PA
SO [mm] L1 [mm] s [mm] x [mm] L [mm] H [mm] L [mm] H [mm]
15 60.56 10.44 7.43 327.14 82.00 336.92 136.75
16 61.55 10.44 7.23 328.00 82.50 337.78 137.25
17 62.55 10.44 7.03 328.86 83.00 338.64 137.75
18 63.54 10.44 6.83 329.72 83.50 339.50 138.25
19 64.54 10.44 6.63 330.58 83.99 340.37 138.74
20 65.53 10.44 6.43 331.45 84.49 341.23 139.24
21 66.53 10.44 6.23 332.31 84.99 342.09 139.74
22 67.52 10.44 6.03 333.17 85.49 342.95 140.24
23 68.52 10.44 5.83 334.03 85.98 343.81 140.73
α
PB
L
PA
SO H
s
β
SO
β
L
H
L
x
