Fronius TPS/i Robotics TWIN Push - Wirefeeder and Accessory Installation

67
EN-US
Install TWIN Wirefeeder and Accessories on the Ro-
bot
Install Wirefeeder
on the Robot

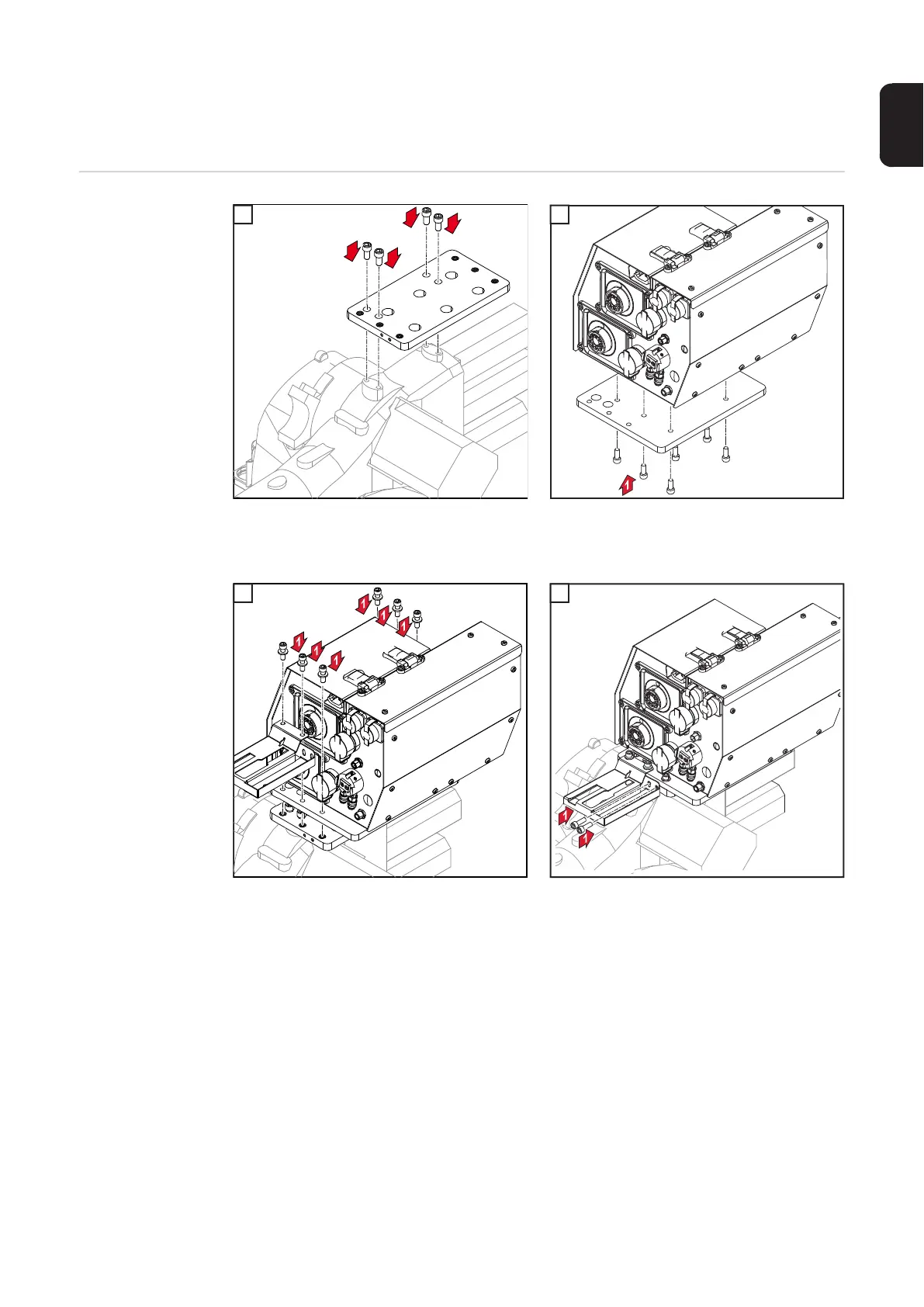

1
Installation of the wirefeeder holder depends on the ro-
bot. Follow the Installation Instructions for the wirefee-
der holder!
2
7 Allen screws 6 mm
tightening torque = 20 Nm
3
6 Allen screws 6 mm + NL wedge-locking washers
tightening torque = 20 Nm
Install hosepack holder
4
2 Allen screws 5 mm + NL wedge-locking washers
Tightening torque = 10 Nm
1
1
1
1
1
7x
2
3
4
