Checking the
function of the
torch body cou-
pling
IMPORTANT! The locking balls of the torch body coupling are intended for dry operation.
Do not lubricate the locking balls.

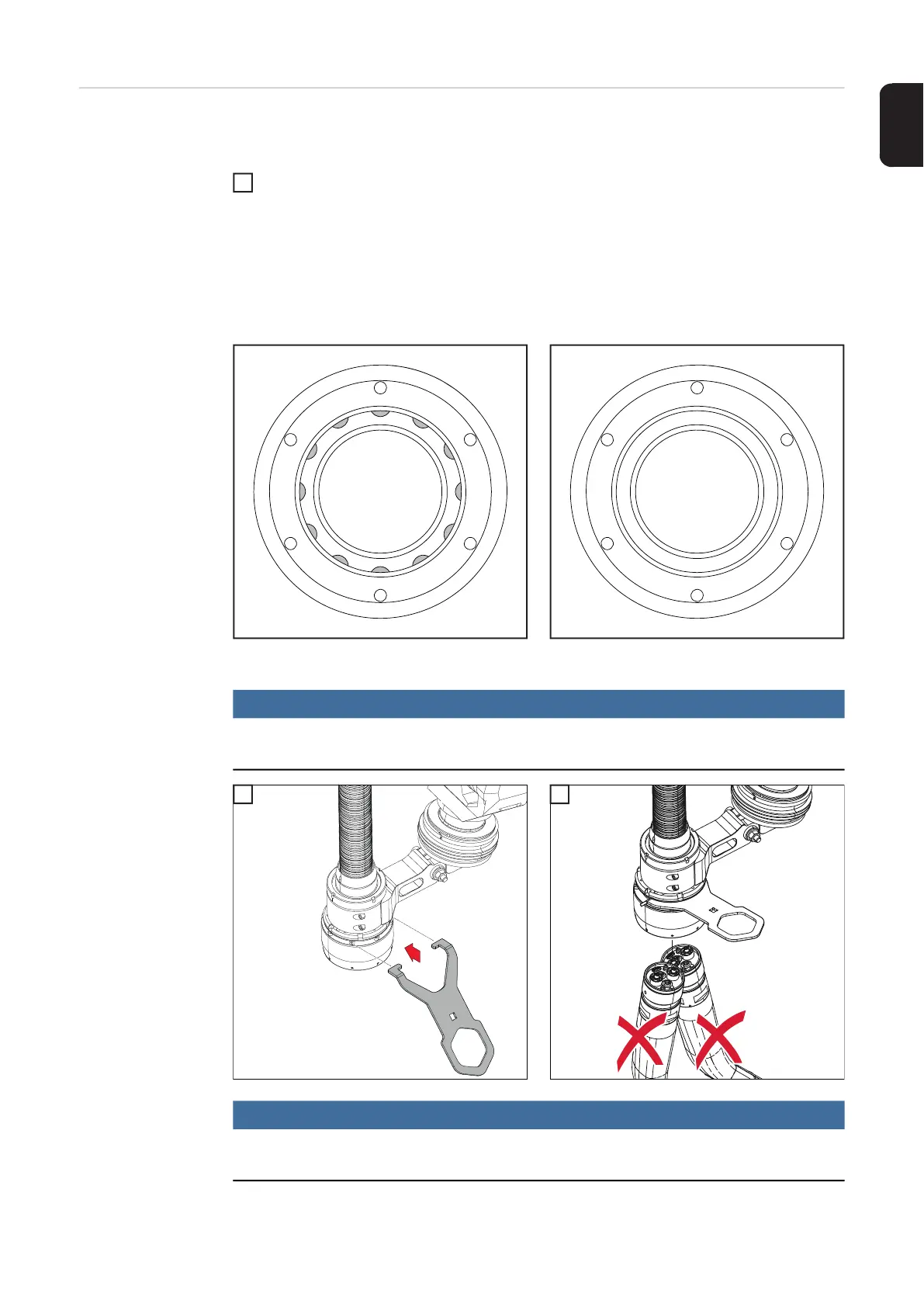

Actuate the torch body coupling five times using a robot signal and check whether the
torch body coupling opens and closes
If the torch body coupling opens and closes correctly, check the manual locking of a torch
body in the torch body coupling.
Flawless operation of the interchangeable coupling can only be guaranteed with a vertical
alignment facing down.
Torch body coupling closed Torch body coupling open
NOTE!
Always insert the torch body into the torch body coupling so that it is straight and
until it reaches the stop.
3 4
NOTE!
If the torch body can be correctly locked in the torch body coupling by hand, then
the torch body coupling is ready for use.
1
1
BY2,0201,4862
2
3
