Fronius TPS/i Robotics TWIN Push - Connecting the Protective Gas Shield and Grounding Cable; Connecting Protective Gas Shield; Connect the Grounding Cable

81
EN-US
Connecting the Protective Gas Shield and Ground-
ing Cable
Connecting Pro-
tective Gas Shield

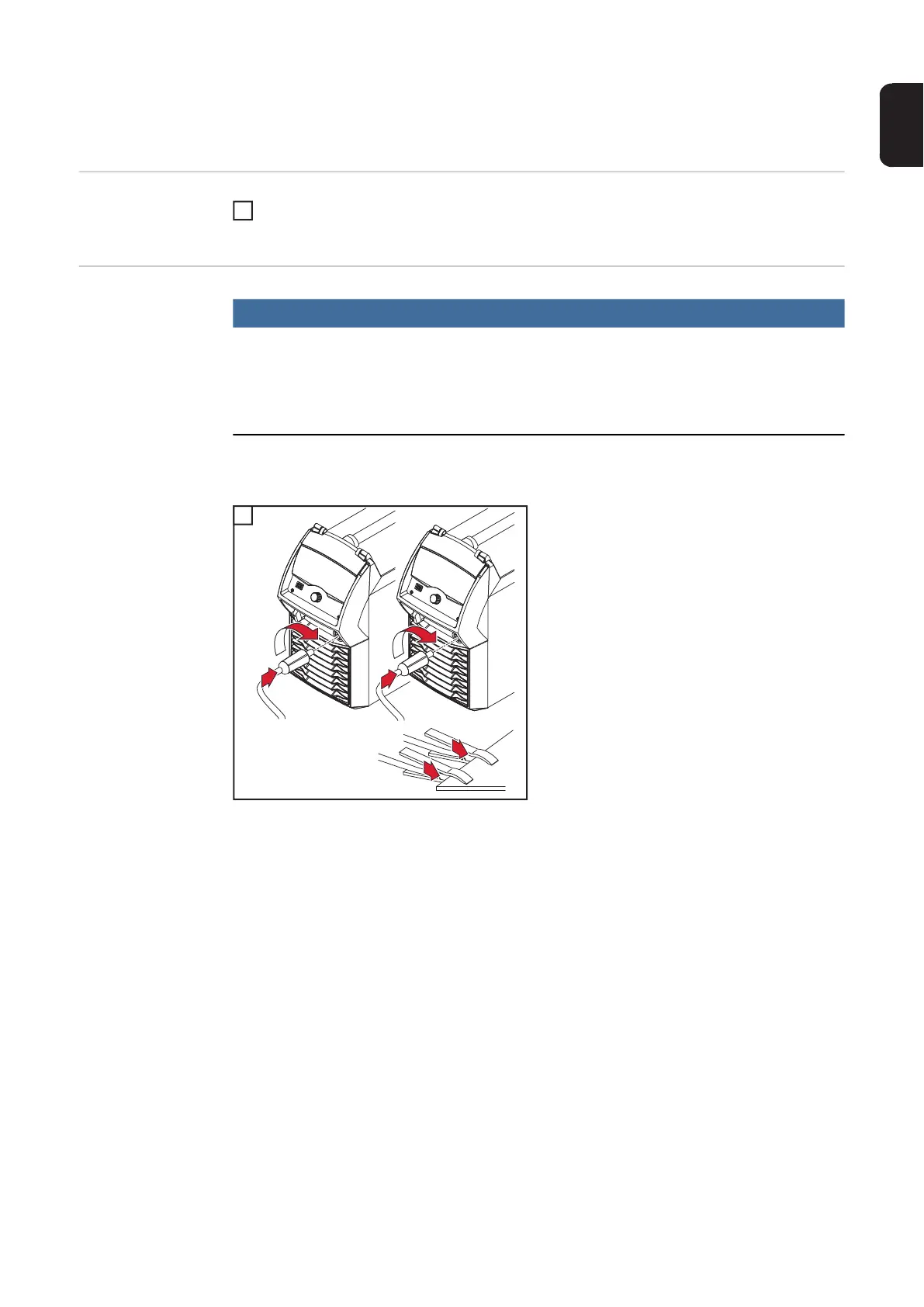

Connect the protective gas shield hoses from the interconnecting hosepacks to the
protective gas shield supply
Connect the
grounding cable
NOTE!
If the grounding cables are laid incorrectly it can have a significant influence on the
welding results, a stable welding process is not guaranteed!
► As far as possible, maintain a distance of 30 - 50 cm between the two grounding ca-
bles.
► Use two separate grounding cables!
Further information on connecting the grounding cables can be found from page 25.
