2 Product Overview
36
Product Overview
2

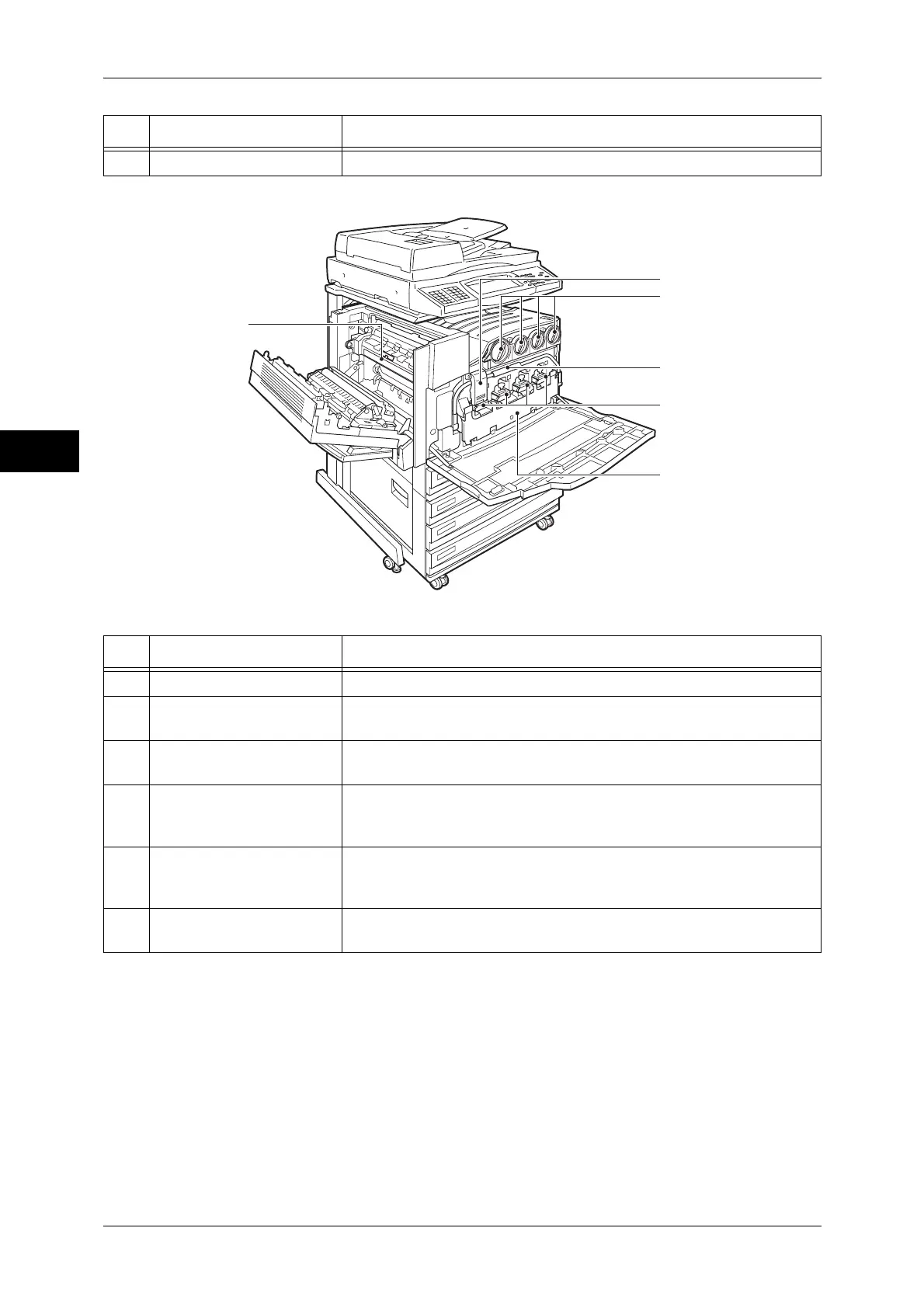

îš„Inside
10 Side output tray (optional) Copies and prints are delivered here facing up.
No. Component Function
1 Stopper Fastens the handle in place.
2 Toner cartridge Four toner (image forming powder) cartridges are provided: Black (K1),
Cyan (C), Magenta (M) and Yellow (Y).
3 Handle Unlock stopper and press this down when replacing the drum
cartridges.
4 Drum cartridge
(A1, A2, A3, A4)
Contains a photo conductor.
Drum cartridges are arranged in order A1, A2, A3 and A4 from the left
as you face the main body.
5 Waste toner bottle cover A waste toner bottle (B), which stores waste toner, is located at the
other side of this cover. Open this cover to access the insides of the
machine when replacing the waste toner bottle.
6 Fuser (E) Fuses the printed image on the paper by fusing the toner. Do not touch
this unit as it is extremely hot.
No. Component Function
1
2
3
4
5
6
