Replacing Consumables
73
Maintenance
3

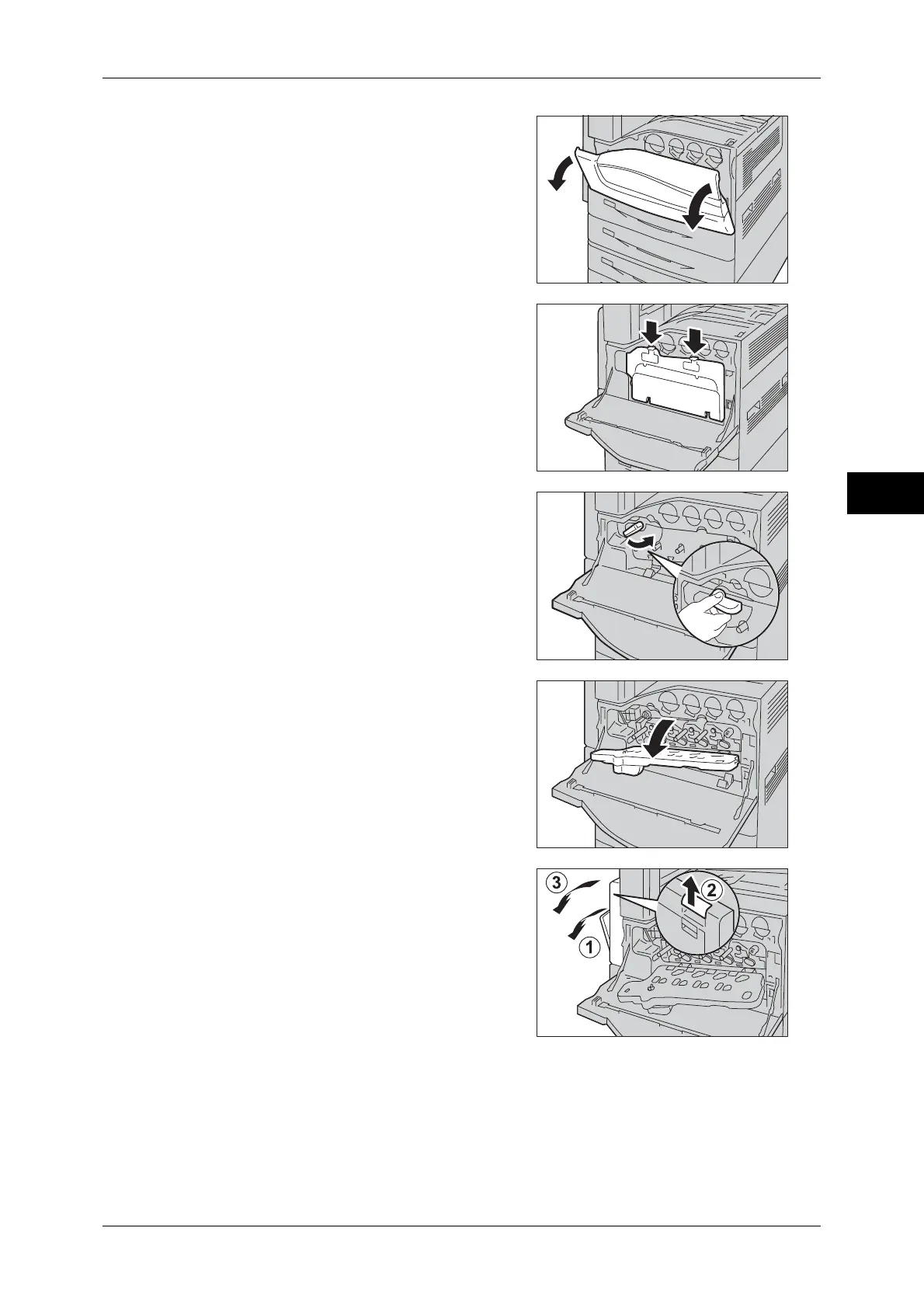

1 Make sure that the machine is not operating,
and open the front cover.
2 While holding down the tabs on the top of
the waste toner container, lay the container
down toward you and then pull out the
container upward at an angle.
Note • After removing the waste toner container
from the machine, do not turn the
container upside down. Otherwise, toner
may spill.
3 Rotate the release lever of the drum
cartridge cover counterclockwise.
4 Lower the cover.
Note • The drum cartridge is unlocked.
5 Open Tray 5 (1), and then while lifting up the
release lever (2) gently open the top left
cover (3).
Important • Be sure to open the top left cover.
Otherwise, the IBT Unit cannot be
removed from the machine.
To Next Page
