342
7 Main
tena
nce
3.

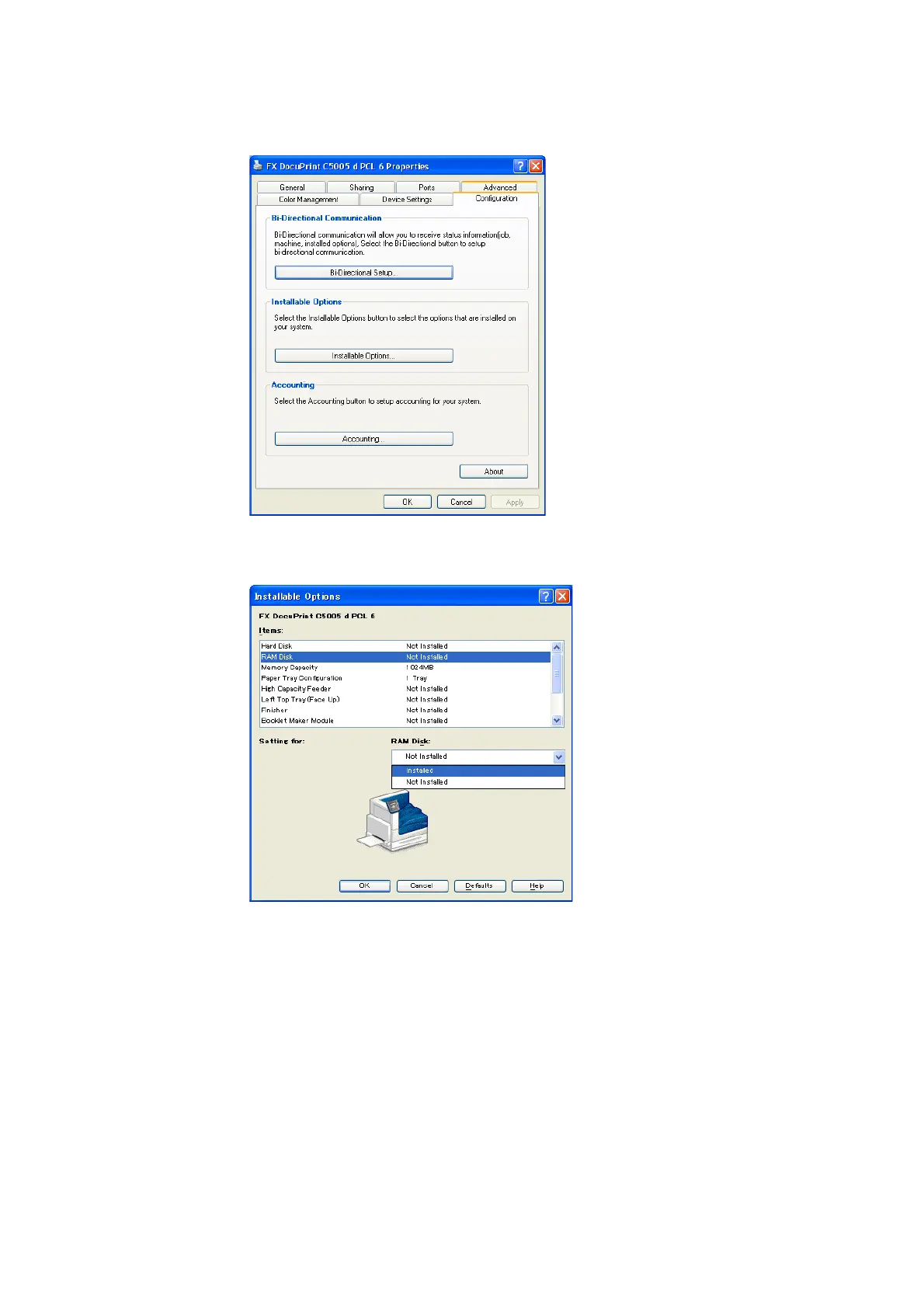

On the [Configuration] tab, click [Installable Options].
4.
In the [Installable Options] dialog box, select [Install
ed] in the [RAM Disk].
5.
Click [O
K].
6.
Click [OK] in the Properties dial
og box.
341
343
