2.1 Main Components and Functions 47
2 Basic Operation
2.1 Main Components and Functions
Main Unit
.
3
2
1
4
5
6
7
10
11
8
9
12

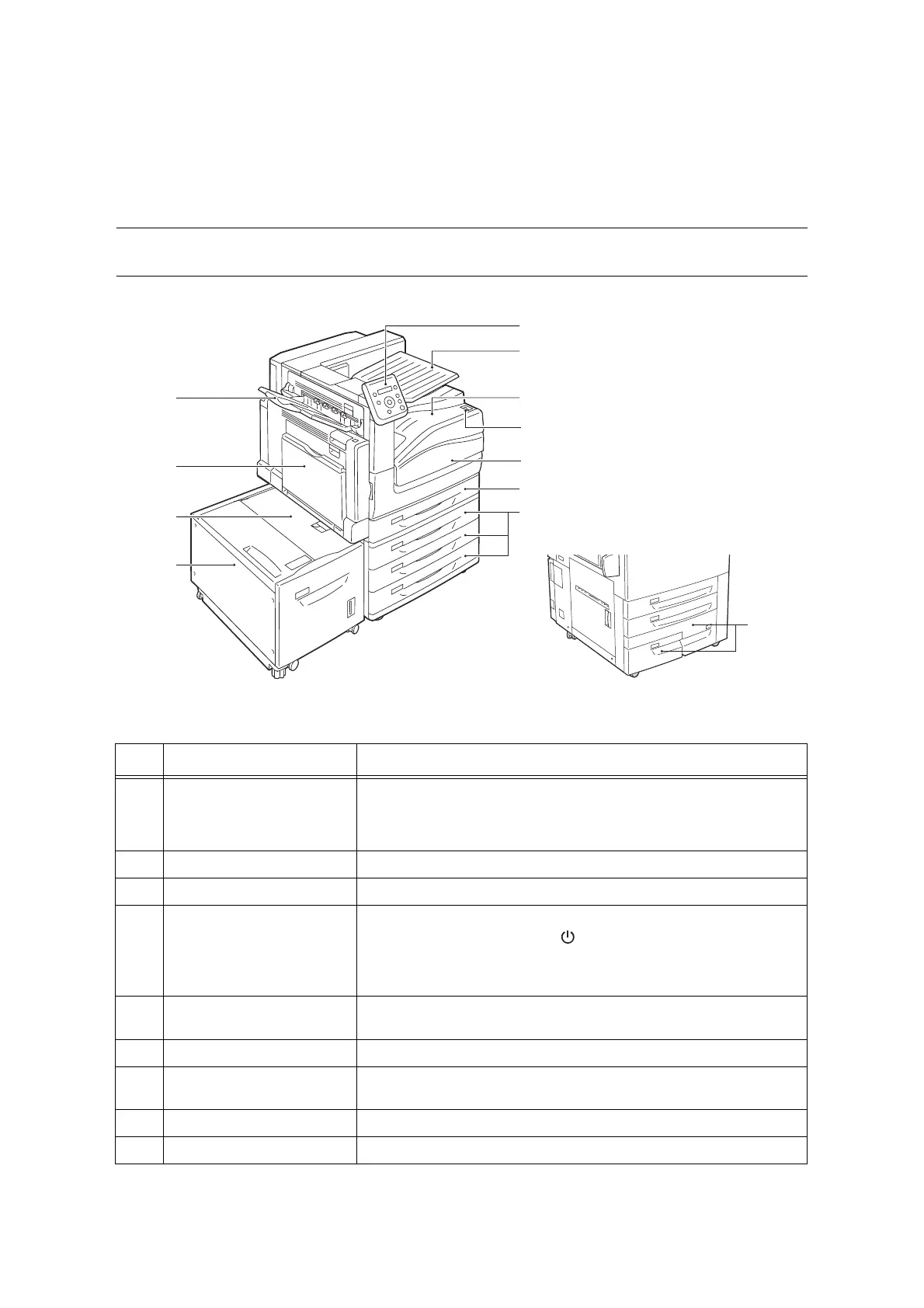

Front and left side views of the printer
No. Name Description
1 Control panel Consists of operation buttons, LED lamps, and a display.
Refer to
• “ Control Panel” (P. 54)”
2 Extra center tray Outputs are delivered here by separating the center tray into two levels.
3 Center tray Prints are delivered here, facing down.
4 Power switch Switches the printer on/off. Press the < | > side of the power switch on the
printer to turn it on, and press the < > side to turn it off.
Refer to
• “2.2 Switching On/Off the Power” (P. 57)
5 Front cover Opened when replacing a drum cartridge and a toner cartridge or removing
jammed papers.
6 Tray 1 Load paper here. This is the standard paper tray.
7 Tray 2, 3, & 4
(3 Tray Module) (optional)
Load paper here when 3 Tray Module (optional) is installed.
8 Tray 6 (HCF B1) (optional) Load paper here when HCF B1 (optional) is installed.
9 Tray 6 top cover Open this cover to remove jammed papers after moving Tray 6 to the left.
To Next Page
