A.5 Installing Extension System Memory 409

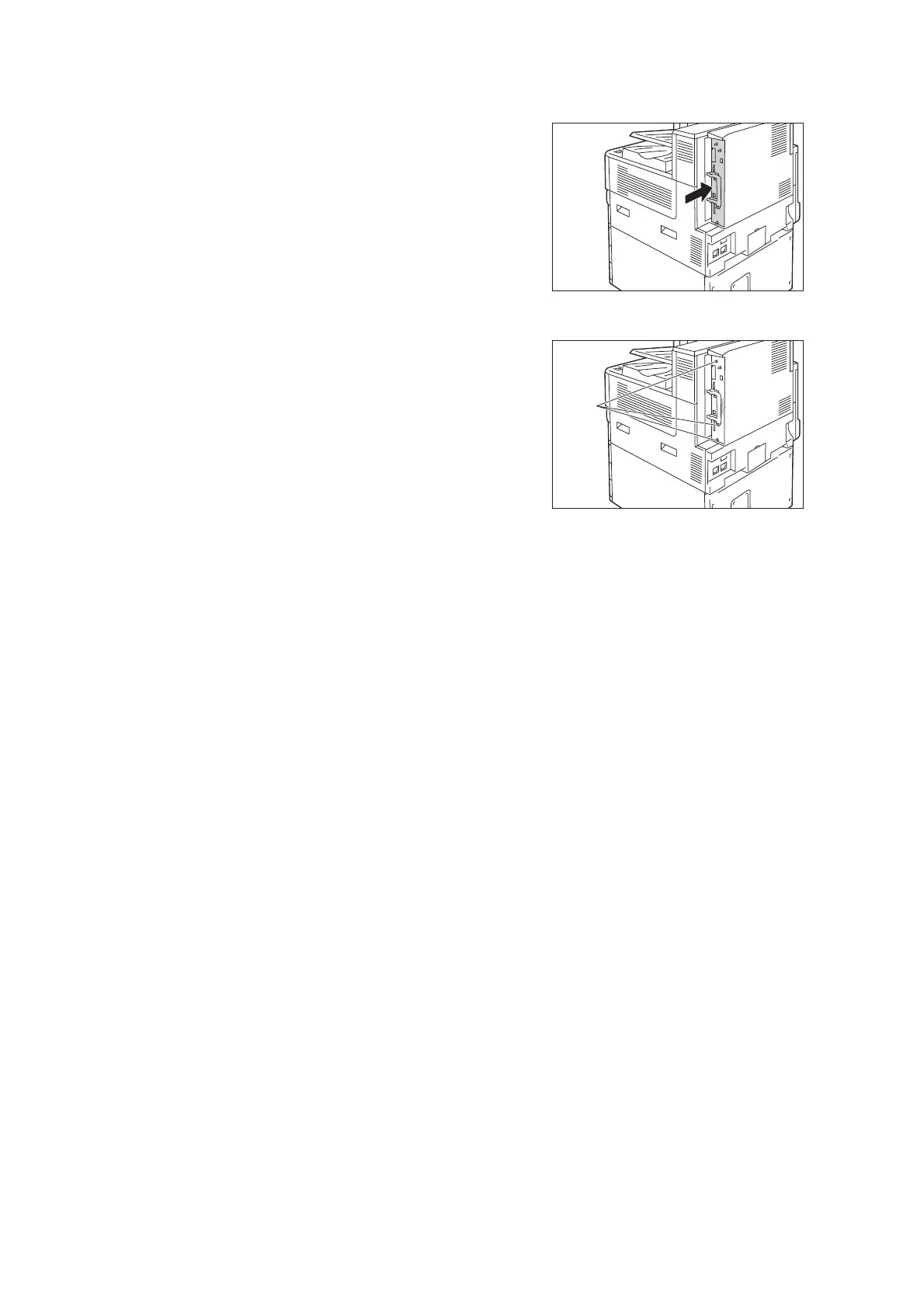

Press the control board in as far as it will
go.
9. Tighten the three screws to secure the
control board in place.
10. Connect the power cord to the printer.
Turn on the printer's main power switch and power switch.
11. Print the [Configuration Report] and confirm that the [Total Size] value of the [Memory]
item in the [Print Service Settings] section is correct.
Refer to
• List printing procedure: “Printing a Report/List” (P. 329)
The installation is now complete.
Note
• After installing extension system memory, use the properties dialog box of the print driver to change the
printer configuration. For details, refer to the online help for the print driver.
screw
To Next Page
