426 A Appendix

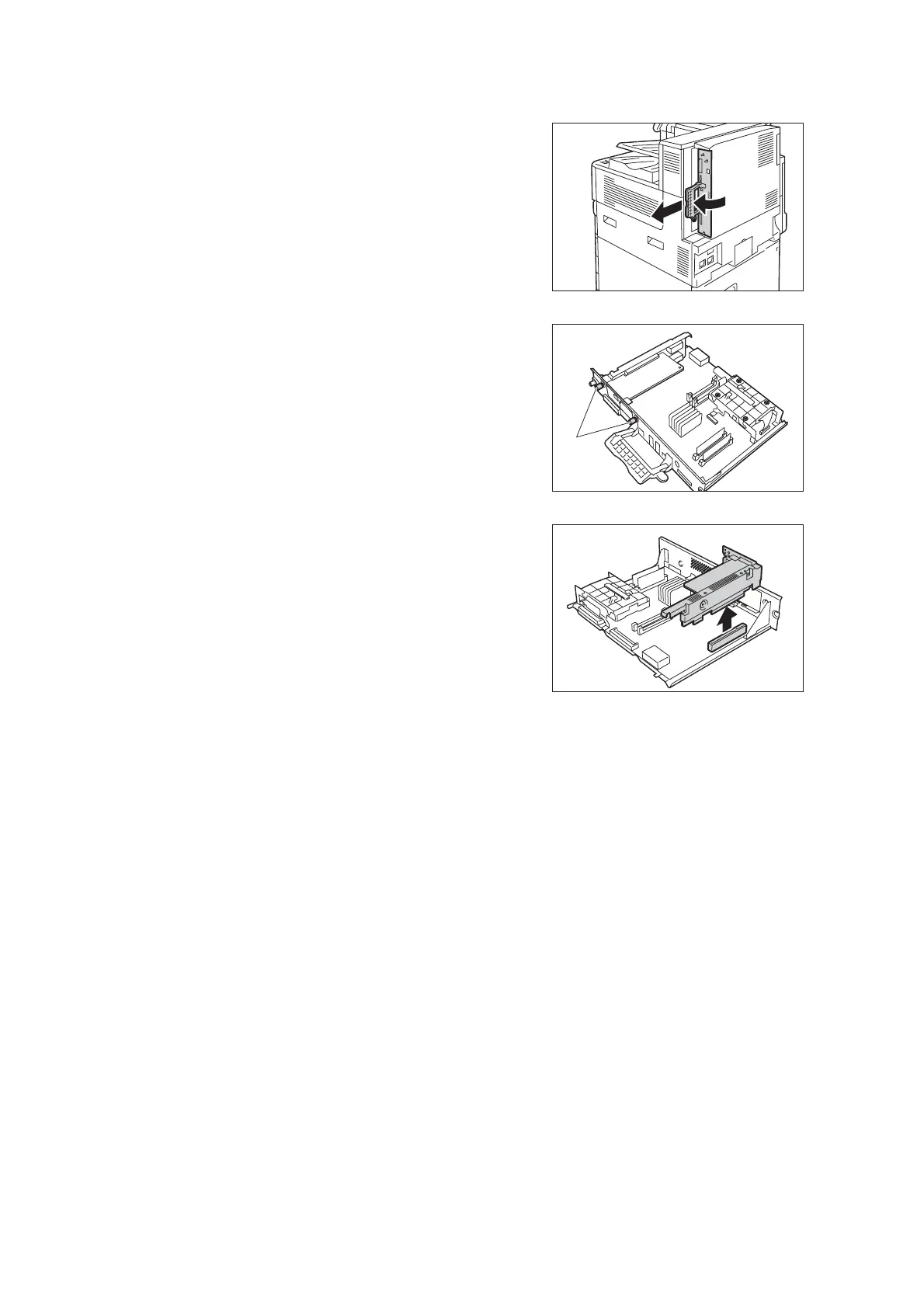

6. Pull out the handle on the control board and
then carefully pull the control board out of
the printer. Place the control board on a
table top or some other flat surface.
Important
• When pulling out the control board, hold it with both
hands so you do not drop it.
7. Remove the two screws that secure the
Gigabit Ethernet Board Kit.
Note
• The screws you remove here may be used for
securing other optional kit on the control board
.
8. Remove the Gigabit Ethernet Board Kit
from the control board.
Gigabit Ethernet Board Kit removal is now complete.
If you need to install the Parallel Port Kit consecutively, proceed to step 8 in the “A.8
Installing the Parallel Port Kit” (P. 417)
It no other installation for the optional kit is needed, install the dummy plate that you
removed in step 7 in the “Installing the Gigabit Ethernet Board Kit” (P. 422), insert the
control board, and then secure the board with three screws in place.
screw
To Next Page
