Fuji Xerox DocuPrint C5005 d

2.1 Main Components and Functions 49
6JGFGUKIPXCTKGU
FGRGPFKPIQPOQFGNU
5
6
2
4
1
7
8
9
10
3

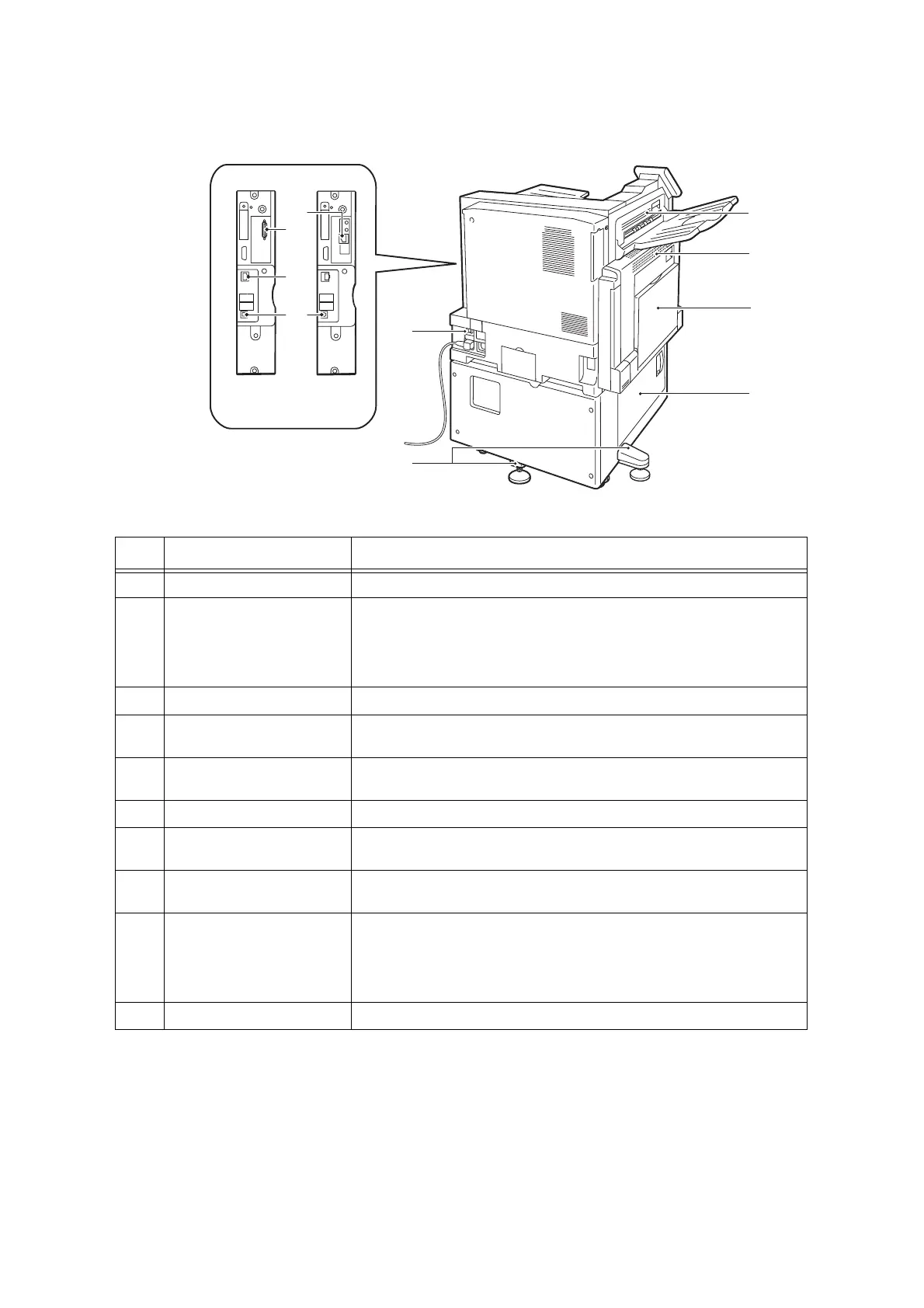

Right side and rear views of the printer
No. Name Description
1 Top left cover D Open this cover to remove jammed papers.
2 Upper left cover A Open this cover to remove jammed papers.
Note
• Before you open this cover, exit the Sleep Mode and then switch off the
printer.
3 Duplex module cover B Open this cover to remove jammed papers.
4 Bottom left cover C Open this cover to remove jammed papers. When Tray 6 is installed, open this
cover after moving Tray 6 to the left.
5 Adjusting foot Prevents the printer from toppling over. Move the printer to its installation site
and then rotate this adjuster in clockwise direction until it touches a floor.
6 RESET button Automatically switches the printer off when a current leakage is detected.
7 Gigabit Ethernet interface
connector (optional)
Installing a Gigabit Ethernet Board Kit (optional) allows the connection of a
1000BASE-T Ethernet interface cable.
8 Parallel interface connector
(optional)
Inserting Parallel Port Kit (optional) allows the connection of a Centronics
interface cable.
9 10BASE-T/100BASE-TX
connector
Connects to a 10BASE-T/100BASE-TX Ethernet interface cable.
Note
• Installing a Gigabit Ethernet Board Kit (optional) does not allow the use of
Ethernet connector in the standard configuration.
10 USB 2.0 connector Connects to a USB 2.0 cable.
