128 Printing Basics

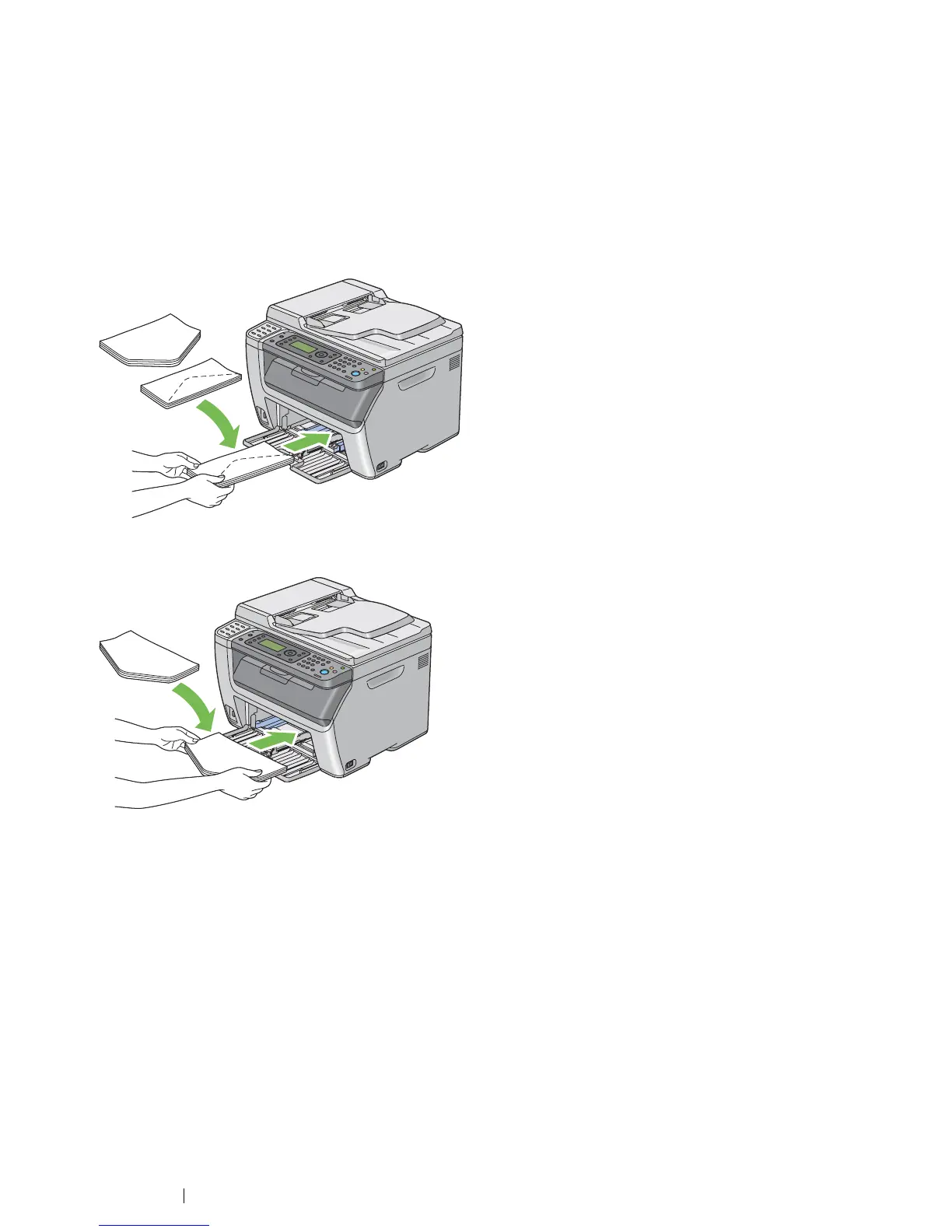

Loading Envelope in the Multipurpose Feeder (MPF)
NOTE:
• When you print on envelopes, be sure to specify the envelope setting on the print driver. If not specified, the
print image will be rotated 180 degrees.
• When Loading Com 10, DL, or Monarch
Load envelopes with the side to be printed on facing up, the flap side facing down, and the flap turned
to the right.
To prevent DL and Monarch from being wrinkled, they are recommended to be loaded with the print-
side facing up, flap opened, and facing you.
NOTE:
• When you load the envelopes in the long-edge feed (LEF) orientation, be sure to select Landscape for MPF
Orientation on the Paper/Output tab of the print driver.
To Next Page
