Fujitsu Airstage J-II User Manual

CENTRAL REMOTE CONTROLLER1-5.
External input External output Input select Connector External connect kit
(Optional parts)
Control input -
Dry contact CN6 (and CN7) UTY-XWZX Z7
Apply voltage CN11 (and CN12) UTY-XWZXZ8
- Operation status
- CN9 UTY-XWZXZA
- Error status
EXTERNAL INPUT1-5-1.
This function performs “Emergency stop” or “All On / All Off” by using the signal to be input externally at external ●
input terminals.
INPUT SELECT

There are 2 kinds of input method of External input terminal: “Dry contact” or “Apply voltage
contact”.

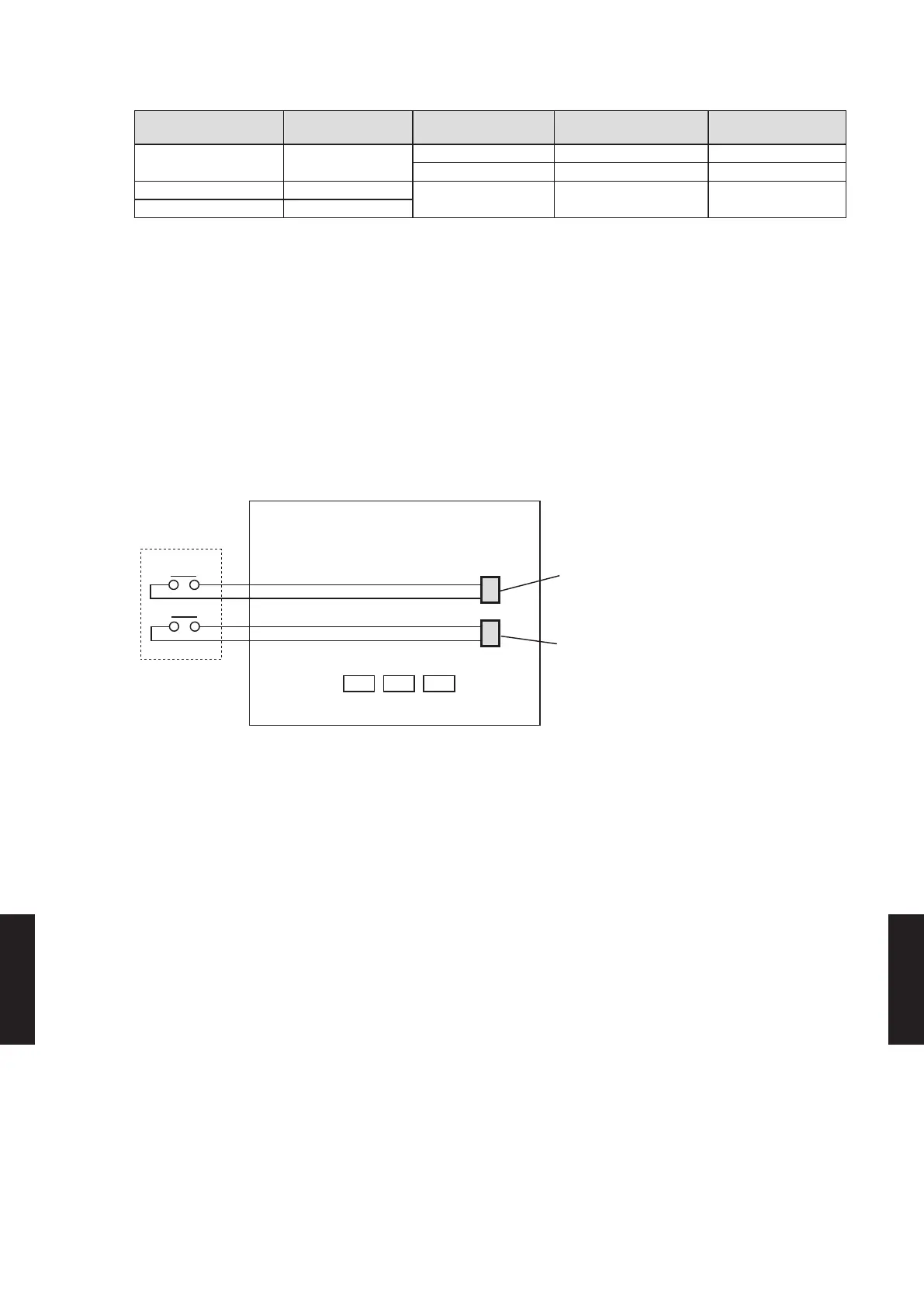

Dry contact
z
When a power supply is unnecessary at the input device you want to connect, connect to CN6
and CN7.
*1
PCB
CN6
(White)
CN7
(Green)
Connected unit
*1 : Short circuit detection resistance (R
ON
) : ≤ 500 (ohm).
Open circuit detection resistance (R
OFF
) : ≥ 100 (kilo-ohm).
* A twisted pair cable(22AWG) should be used. Maximum length of cable is 25m.
- (08 - 33) -
EXTERNAL INPUT & OUTPUT EXTERNAL INPUT & OUTPUT
