SEPARATION TUBE1.
CONNECTION CAPACITY

Total cooling capacity of indoor units
(kW)
Separation tube
For 2 pipes For 3 pipes
19.6 or less UTP-AX054A -
28.0 or less UTP-AX090A UTP-BX090A
28.1 to 56.0 UTP-AX180A UTP-BX180A
56.1 or more UTP-AX567A UTP- BX567A
Each Value above such as 19.6, 28.0, 28.1, 56.0 and 56.1[kw] means total cooling capacity at
rated condition of indoor unit connected under the targeted separation tube.

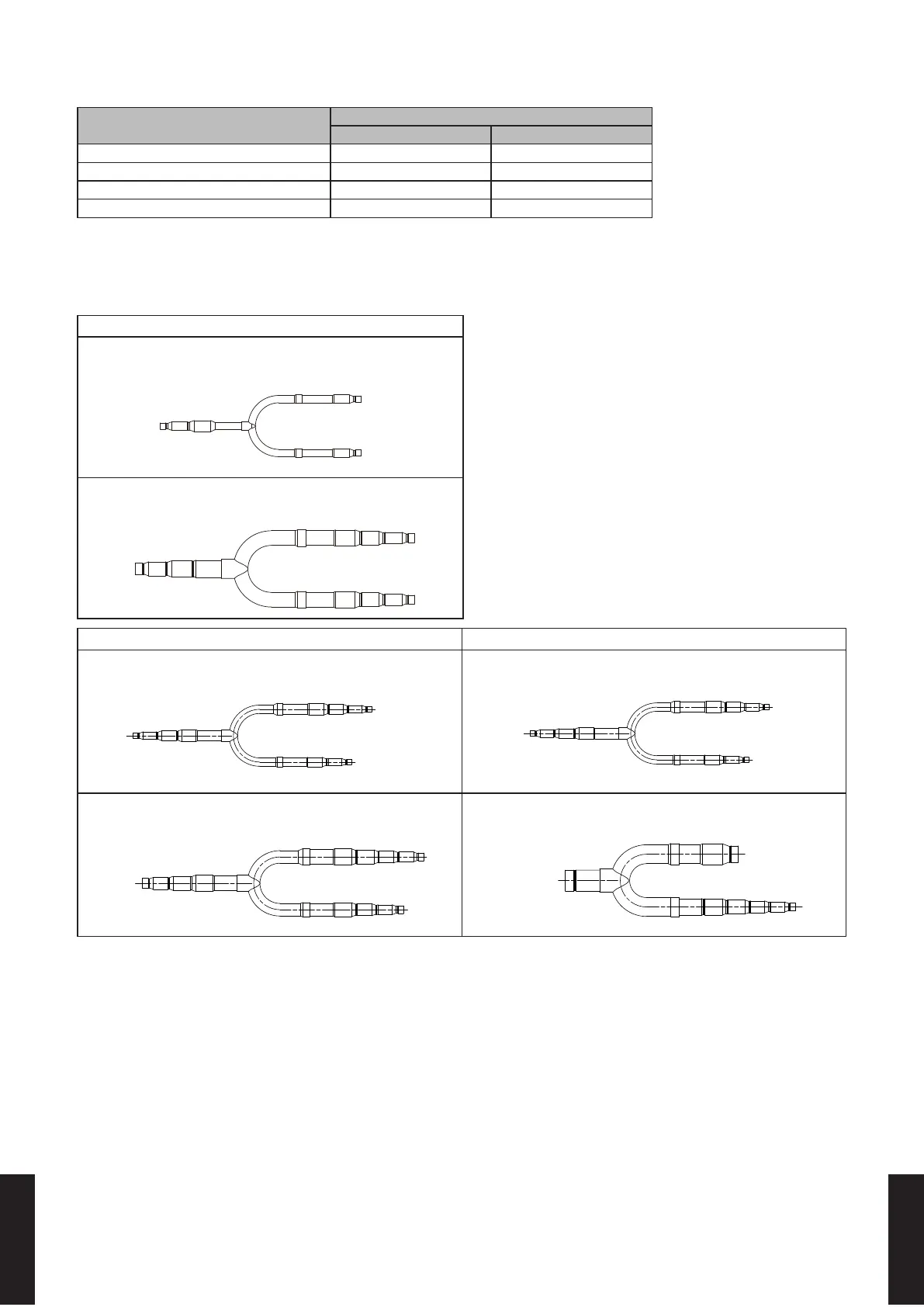

For 2 pipes
z
UTP-AX054A
UTP-AX090A UTP-AX180A
(UNIT : kW)
Liquid pipe
2.2 or more to 19.6
1.1 or more to 17.4
1.1 or more to 17.4
Gas pipe
2.2 or more to 19.6
1.1 or more to 17.4
1.1 or more to 17.4
Liquid pipe
2.2 or more to 28.0
1.1 or more to 26.9
1.1 or more to 18.0
Liquid pipe
28.1 or more to 56.0
27.0 or more to 54.9
1.1 or more to 28.0
Gas pipe
2.2 or more to 28.0
1.1 or more to 26.9
1.1 or more to 18.0
Gas pipe
28.1 or more to 56.0
27.0 or more to 54.9
1.1 or more to 28.0
- (10 - 01) -
