Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

▶
Release all HDD modules and pull them out a few centimeters, see
"Removing a 3.5-inch HDD module" on page 144.
CAUTION
The HDD modules need not to be removed.
▶
If you want to remove them nevertheless, check if all HDD
modules are uniquely identified so that you can reinsert them
into their original bays.
▶
Release all dummy modules and pull them out a few centimeters, see
"Removing a 3.5-inch HDD dummy module" on page
141.
Removing the defective 3.5-inch HDD backplane
▶
Disconnect all cables from the HDD backplane.
▶
If applicable, disconnect the ODD power and SA
TA cable to make room to
remove the HDD backplane easier.

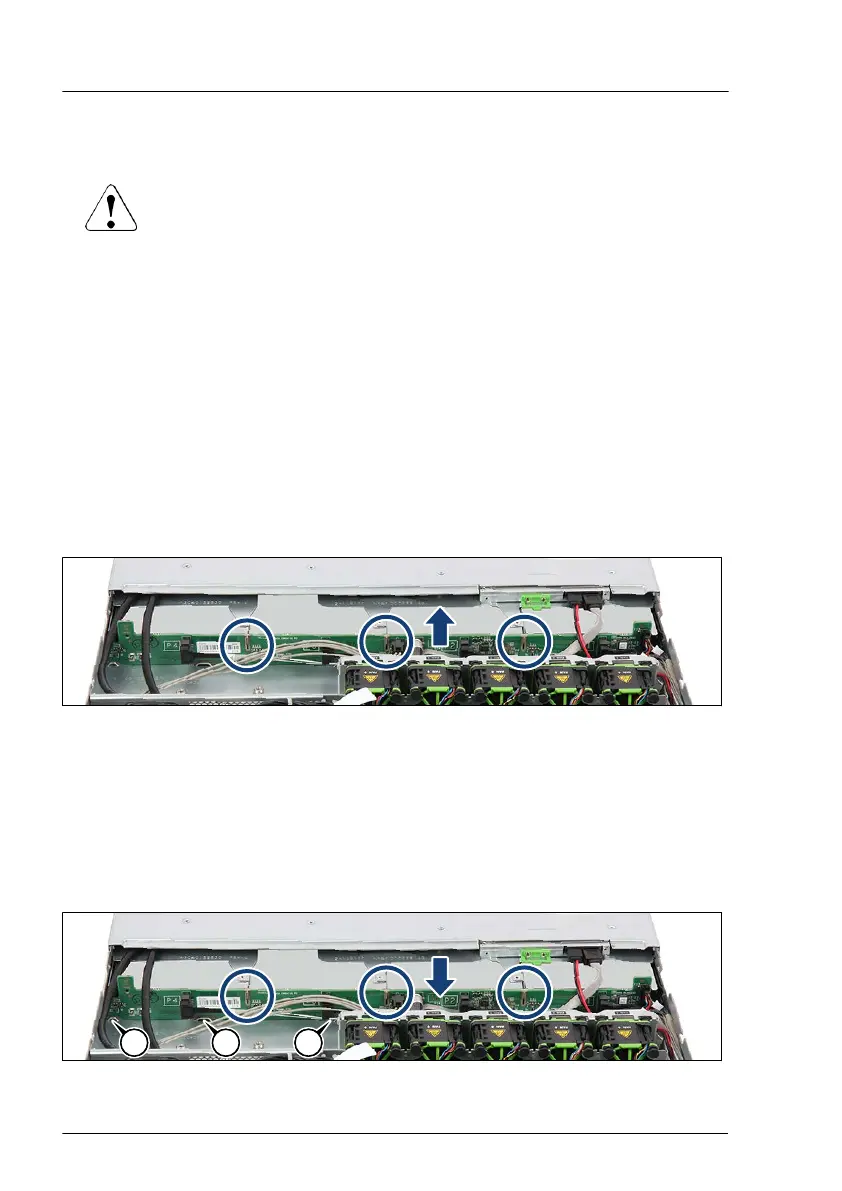

Figure 66: Removing the 3.5-inch HDD backplane
▶
Pull the HDD backplane upward until the three hooks disengage (see
circles).
▶
Take out the HDD backplane.
Installing the new 3.5-inch HDD backplane
A A
A
Figure 67: Installing the 3.5-inch HDD backplane
Hard disk drive (HDD) / solid state drive (SSD)
148 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
