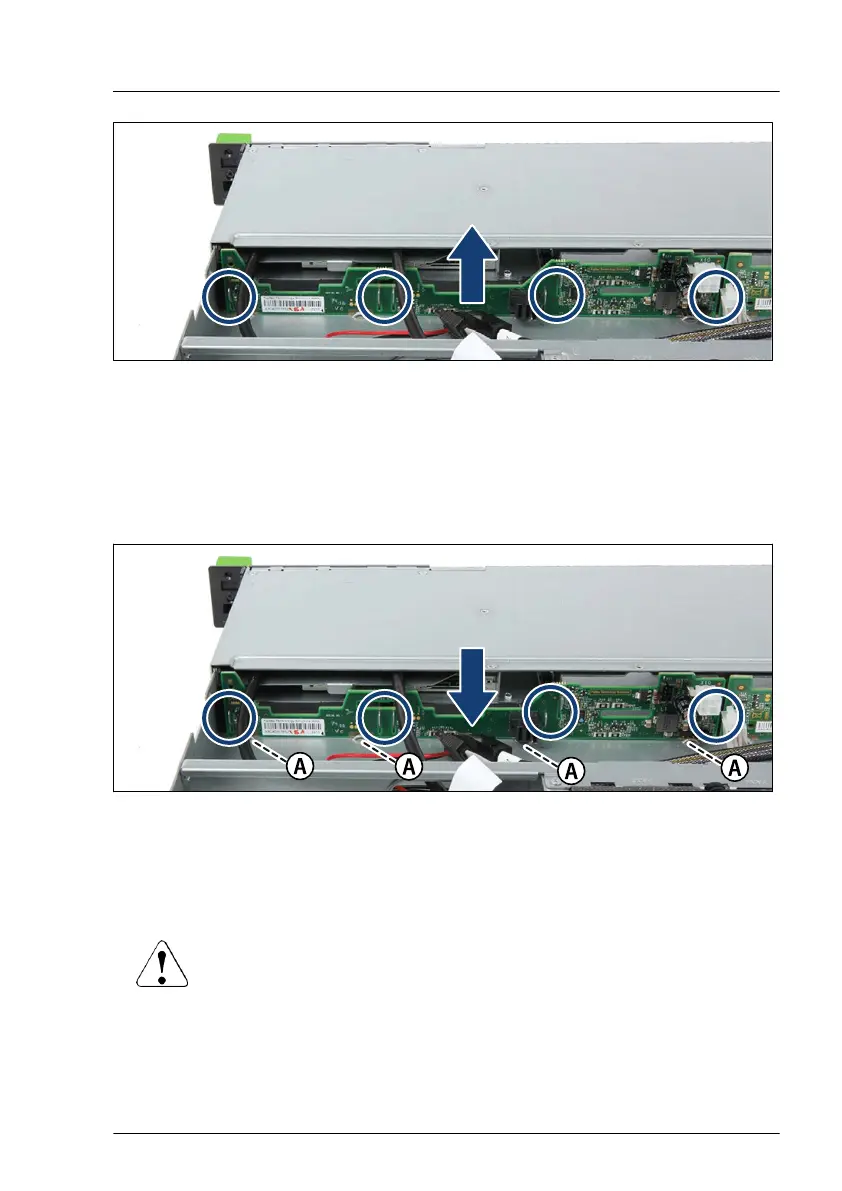

Figure 78: Removing the 4x 2.5-inch HDD backplane
▶
Pull the HDD backplane upward until the six hooks disengage (see circles).
▶
T
ake out the HDD backplane.
Installing the new 4x 2.5-inch HDD backplane
Figure 79: Installing the 4x 2.5-inch HDD backplane
▶
Position the HDD backplane on the six hooks (see circles).
▶
Push the HDD backplane downward. Make sure that the HDD backplane fits
into the guides (A).
CAUTION
▶
Ensure that none of the cables are strained or damaged!
Hard disk drive (HDD) / solid state drive (SSD)
RX1330 M4 Upgrade and Maintenance Manual 161
