Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

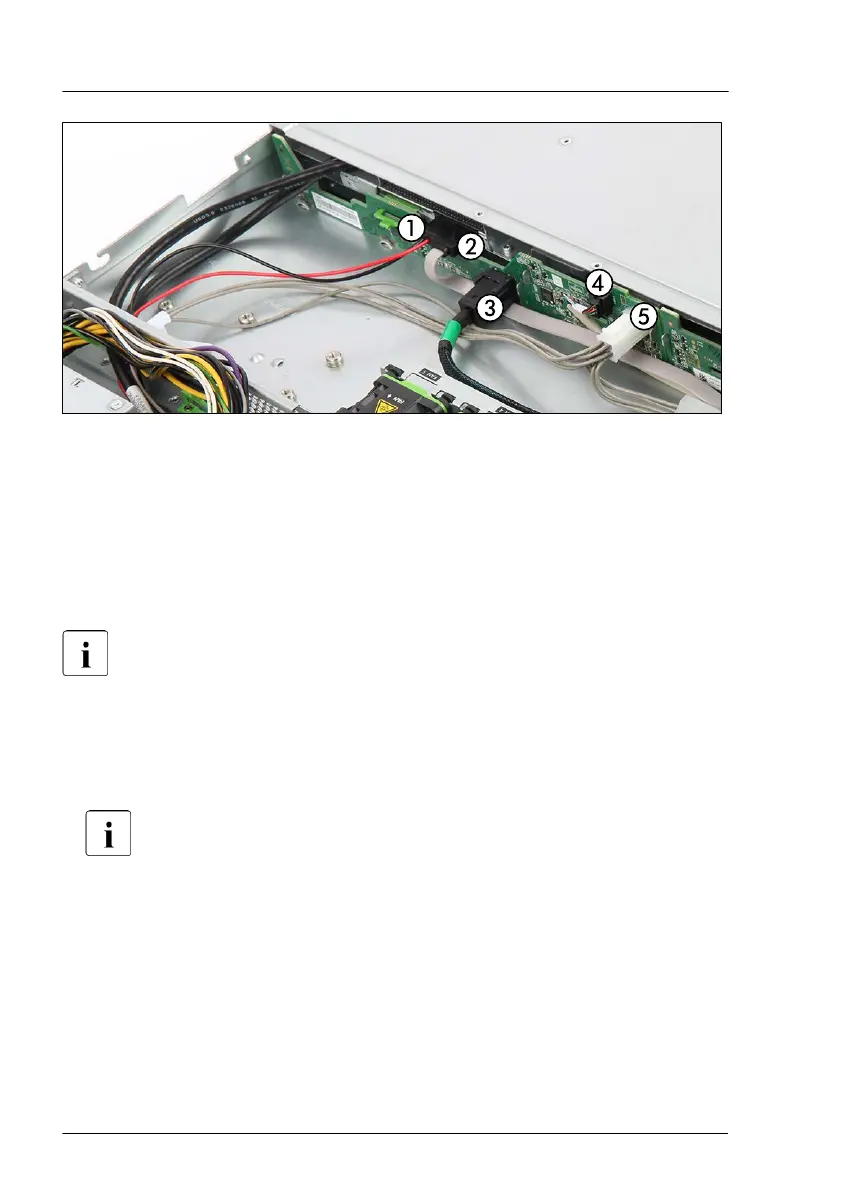

Figure 80: Connecting the cables to the ODD and the 4x 2.5-inch HDD backplane
1 ODD power cable (if applicable)
2 ODD data cable (if applicable)
3
SAS cable to connector "X5"
4 OOB cable to connector "SMBus"
5 Power cable
▶
If applicable, push the ODD in its bay until the ODD latch engages.
▶
Connect all cables to the ODD and the HDD backplane.
For the cable plans, see "Appendix B" on page 365
.
Concluding steps
▶
Insert all HDD/SSD modules, see "Installing 2.5-inch HDD/SSD modules"
on page 152
.
Make sure that you reinstall the HDD/SSD module in the bay it was
located before the HDD backplane replacement.
▶
"Reassembling" on page 52
.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 58.
Hard disk drive (HDD) / solid state drive (SSD)
162 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
