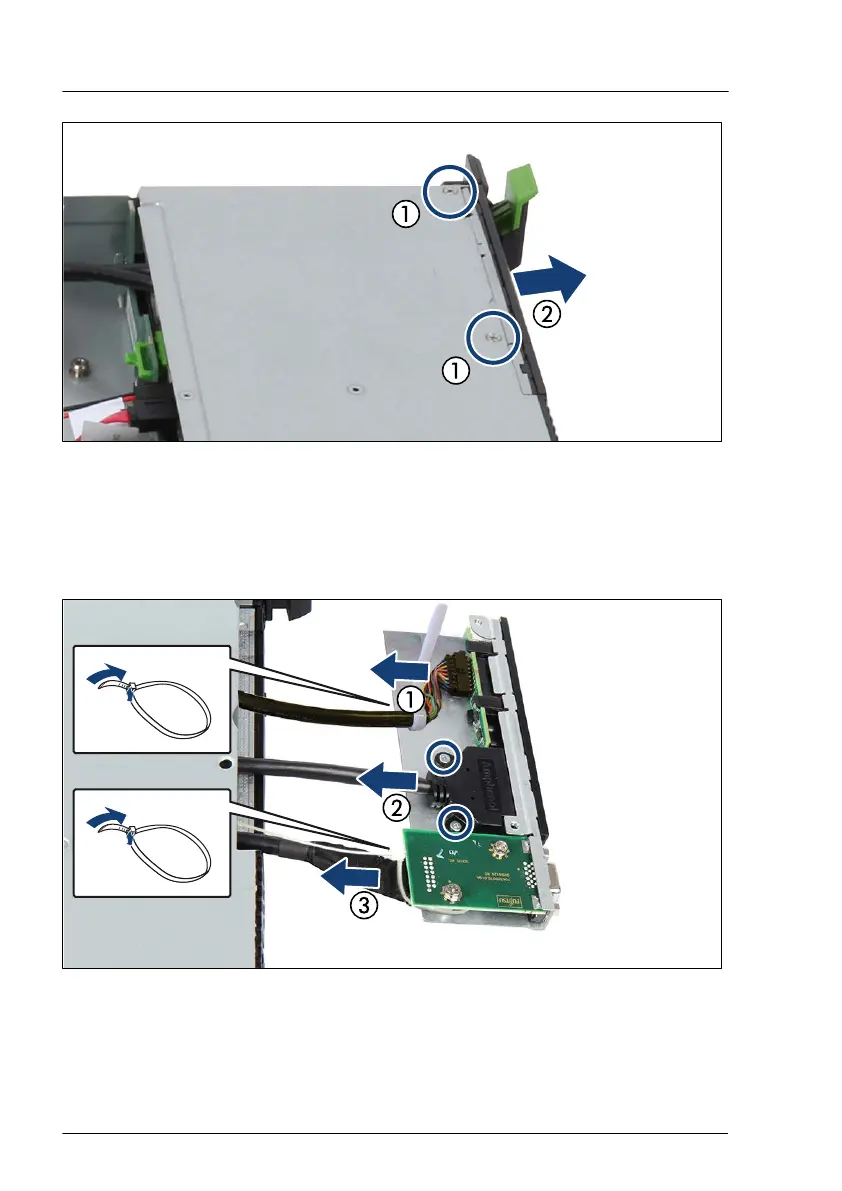

Figure 181: Removing the front panel module
▶
Remove the two screws (1).
▶
Pull the front panel module out of its bay (2) until the holder is completely
accessible.
Figure 182: Removing cables from the front panel module
▶
Open the cable tie and disconnect the front panel cable (1).
Front panel
270 Upgrade and Maintenance Manual RX1330 M4
