Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

▶
If applicable, connect the front VGA cable to the front VGA board and
secure it with the cable tie (3).

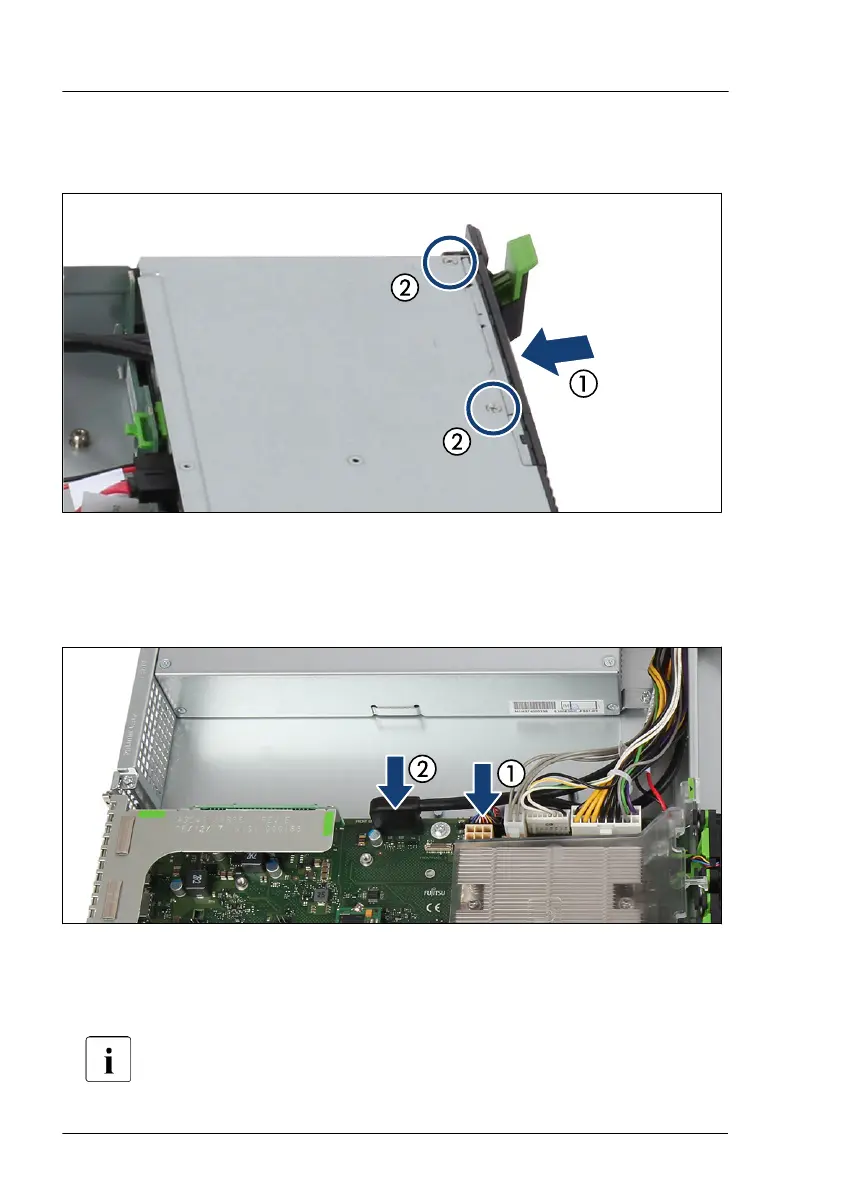

Figure 184: Installing the front panel module
▶
Push the front panel module in its bay (1).
▶
Fasten the front panel module with two screws (2).
Figure 185: Connecting the cables (A)
▶
Connect the front panel cable (1) and the front USB cable (2) to the system
board.
Ensure that the front panel cable is situated under the front USB
cable.
Front panel
272 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
