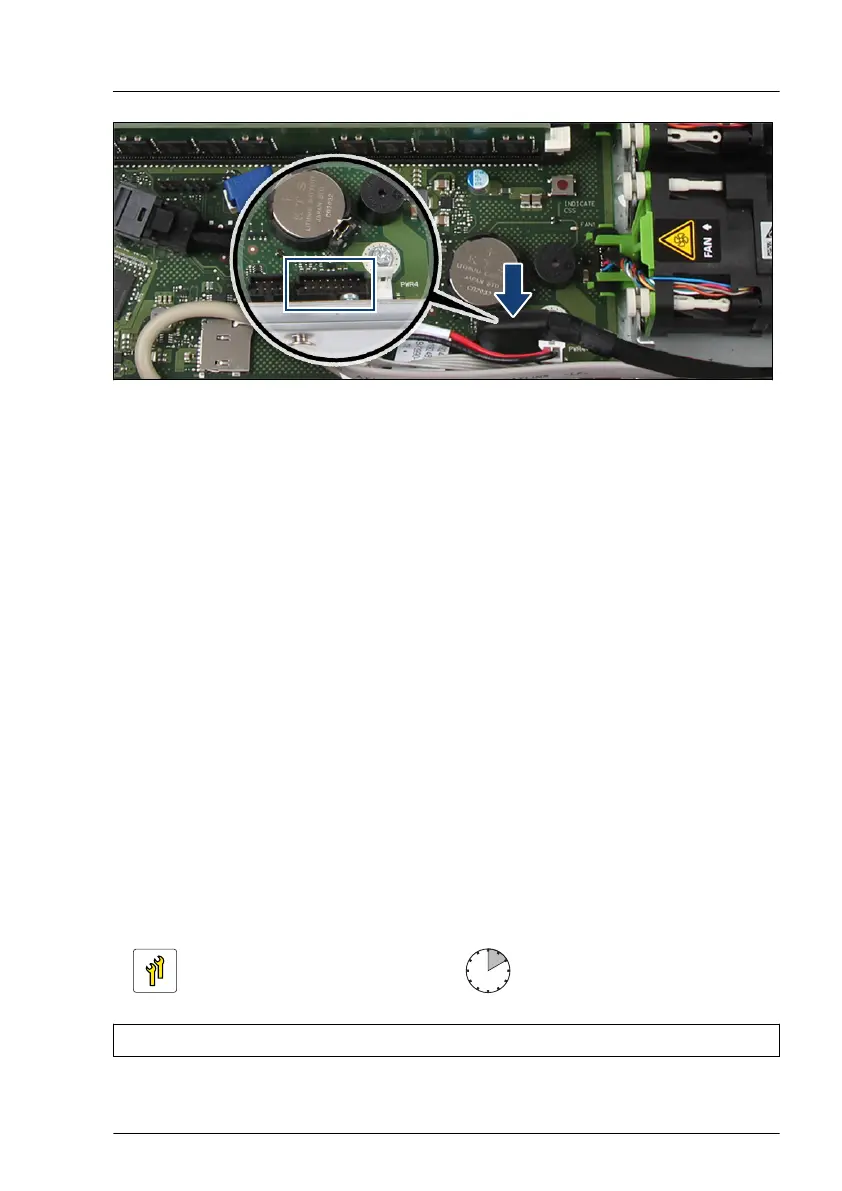

Figure 186: Connecting the cables (B)
▶
If applicable, connect the front VGA cable (black) to the system board.
Concluding steps
▶
"Installing the air duct" on page
64
.
▶
"Reassembling" on page 52.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 58.
▶
"Using the Chassis ID Prom Tool" on page 91.
▶
"Verifying system information backup or restore" on page 71.
▶
"Resuming BitLocker functionality" on page 86.
13.4 Front VGA board
13.4.1 Installing the front VGA board
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
Front panel
RX1330 M4 Upgrade and Maintenance Manual 273
