Fujitsu PRIMERGY RX1330 M4

To Next Page

To Previous Page

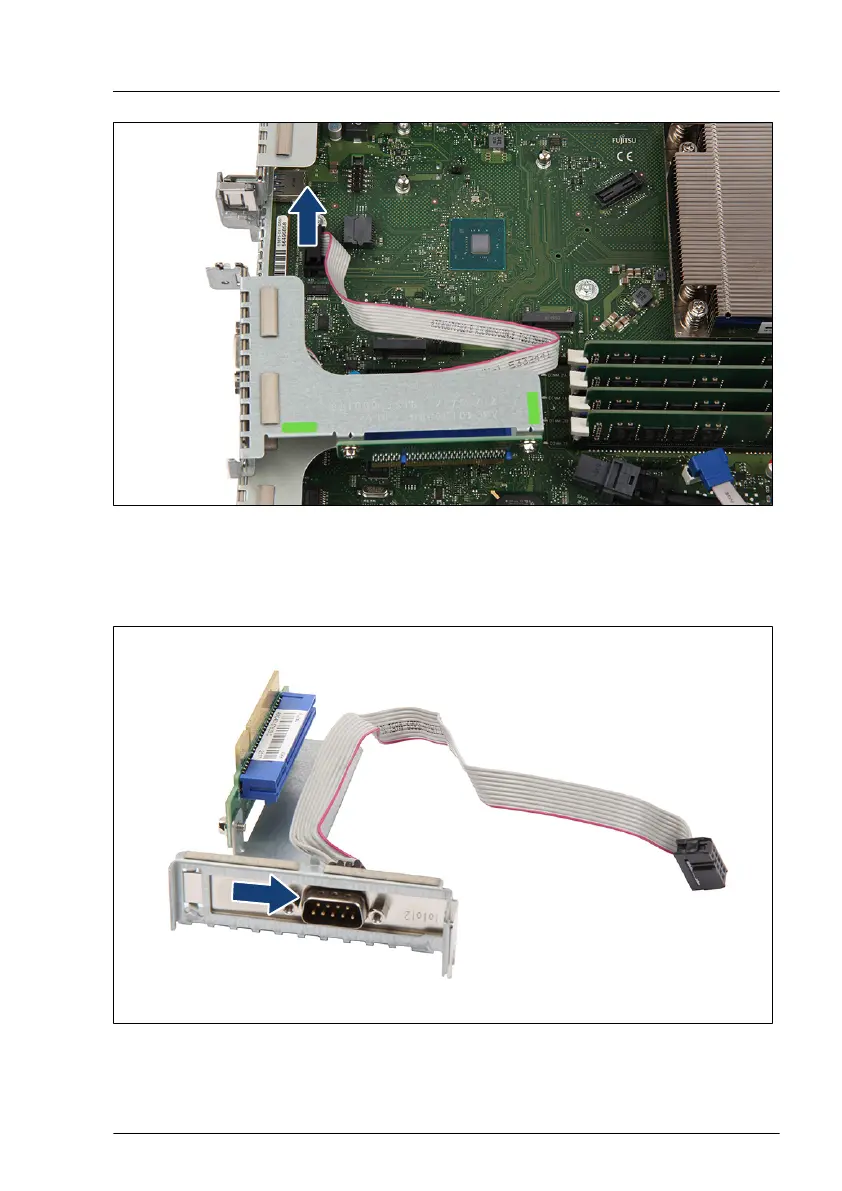

Figure 200: Disconnecting the serial interface cable

▶

Disconnect the serial interface cable from the system board connector

"SERIAL".

Figure 201: Removing the serial interface - example riser module 2

Serial interface

RX1330 M4 Upgrade and Maintenance Manual 287
