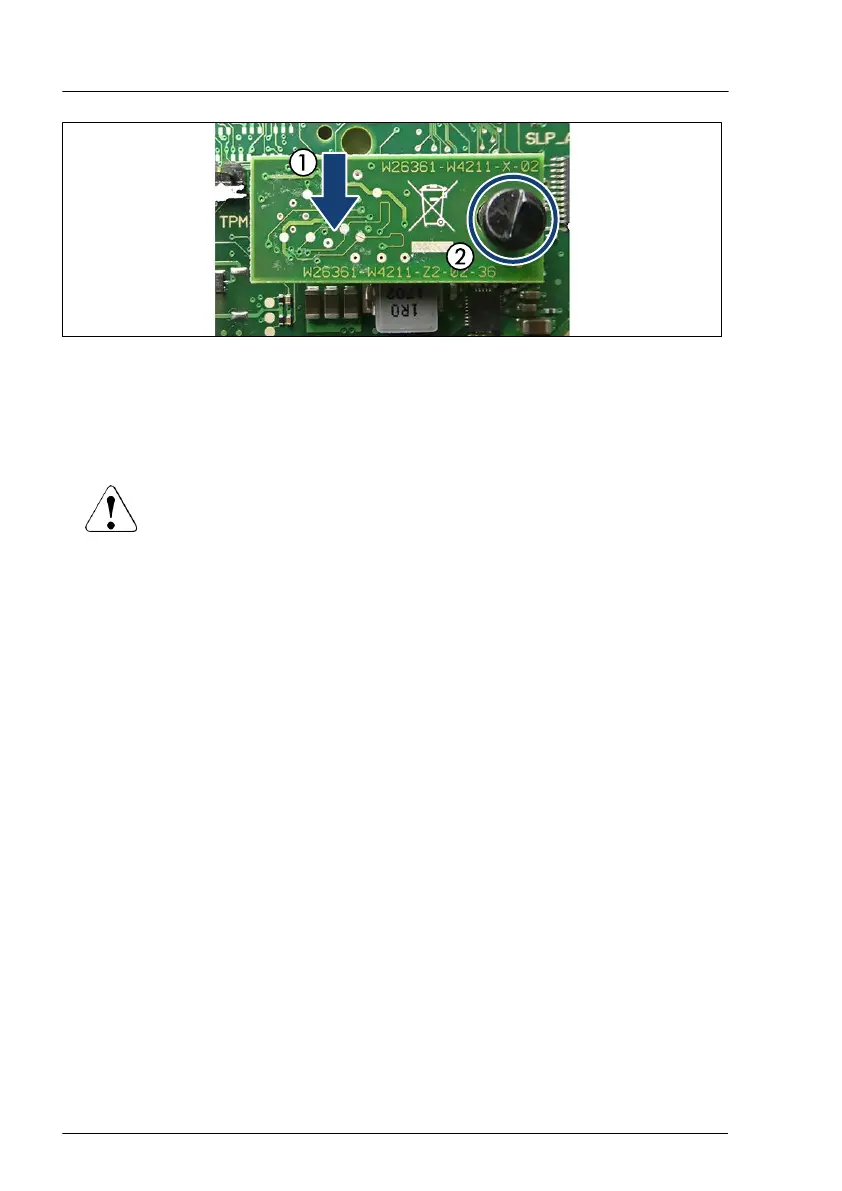

Figure 208: Installing the TPM
▶
Connect the TPM to the system board (1).
▶
Fasten the TPM with the special screw for the TPM using the TPM bit insert
or TPM module fixing tool (Japan) (2).
CAUTION
▶
Do not fasten the screw too firmly.
▶
Stop it by extent where the head of the screw lightly touches the
TPM. Torque: 0.6 Nm (not used in Japan).
Concluding steps
▶
Install the riser module 3, see "Installing a riser module" on page
61.
▶
"Installing the air duct" on page
64.
▶
"Reassembling" on page
52.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 58.
▶
"Resuming BitLocker functionality" on page 86.
▶
Enable the TPM in the system board BIOS, see "Enabling the TPM in the
system board BIOS" on page 298.
Enabling the TPM in the system board BIOS
Proceed as follows:
▶
Switch on or restart your server.
System board and components
298 Upgrade and Maintenance Manual RX1330 M4
