Tools: tool-less
Preliminary steps
▶
"Shutting down the server" on page 45.
▶
"Disconnecting the power cord" on page
46.
▶
"Getting access to the component" on page 48.
▶
"Removing the air duct" on page 63.
▶
Remove the riser module 1, see "Removing a riser module" on page 59.

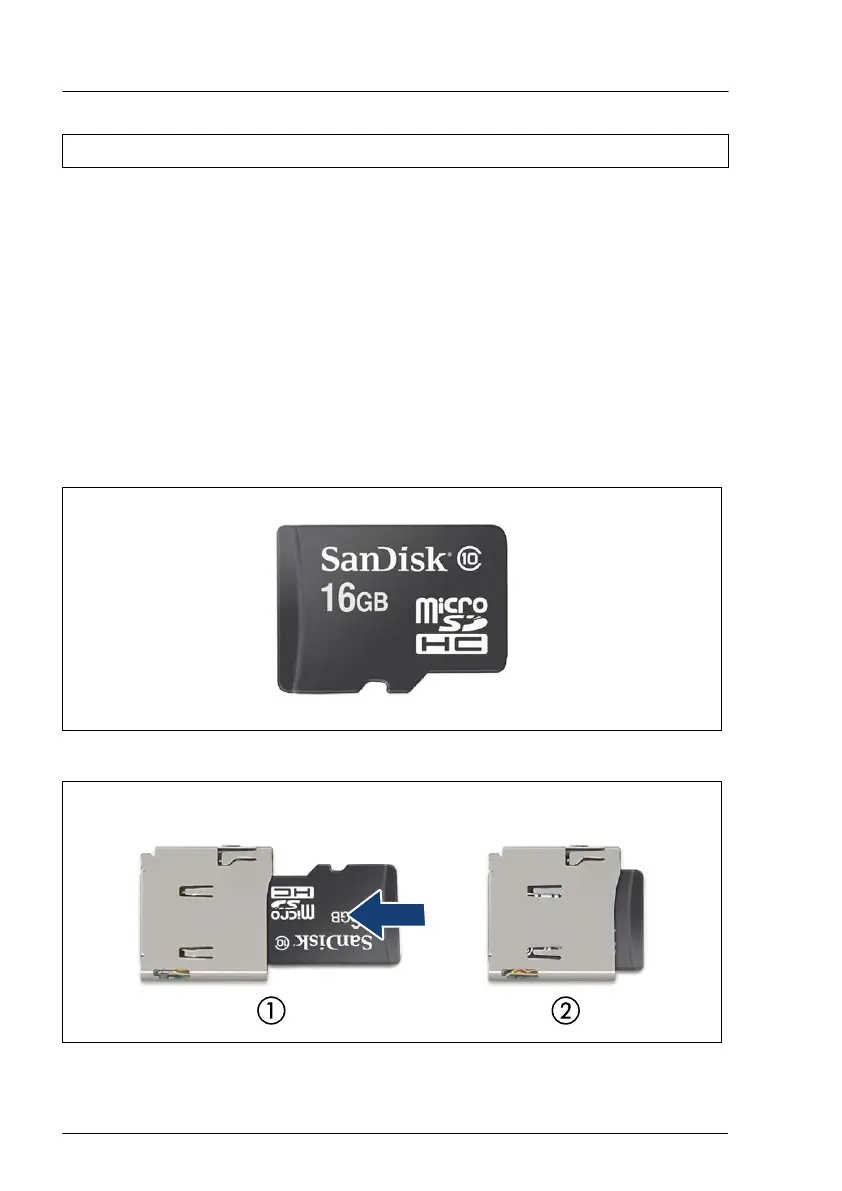

Installing the iRMC microSD card
Figure 211: iRMC microSD card
Figure 212: Installing the iRMC microSD card
System board and components
306 Upgrade and Maintenance Manual RX1330 M4
