Installing the M.2 SSD

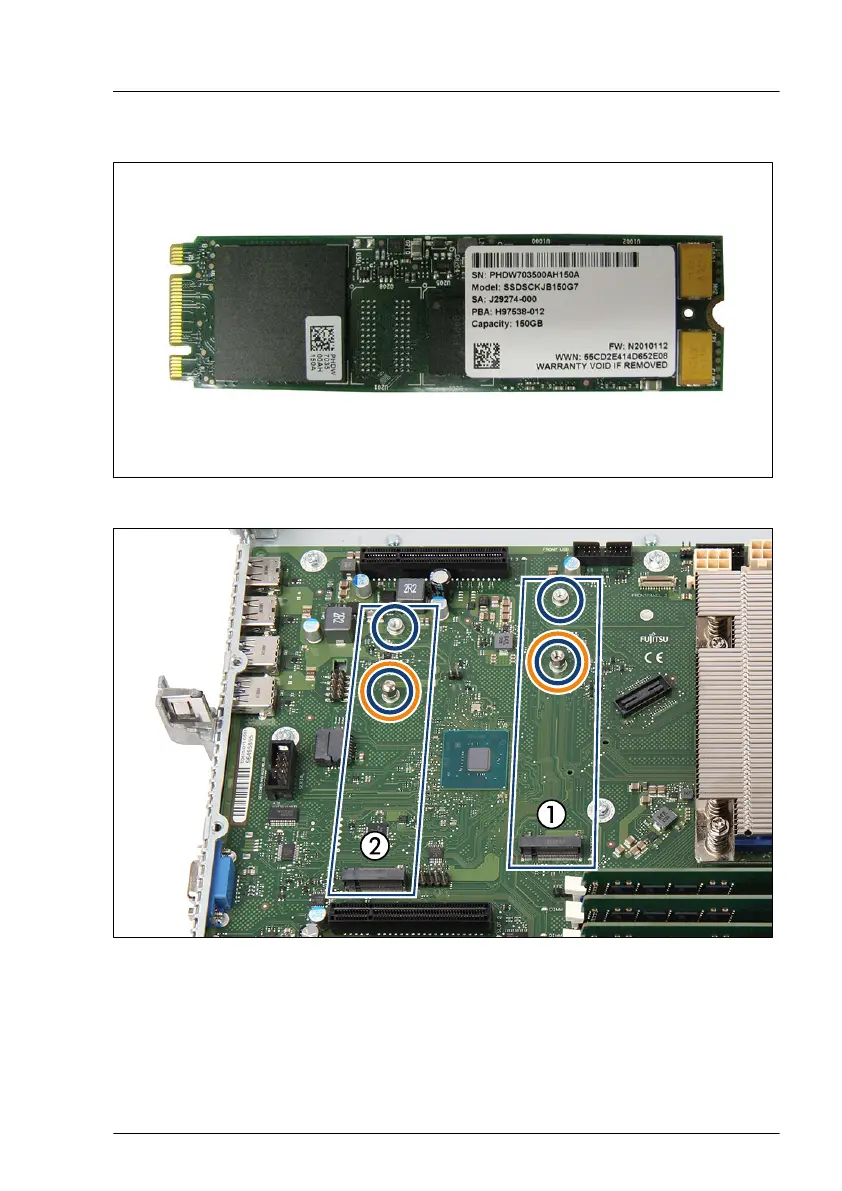

Figure 214: Example M.2 SSD

Figure 215: Slots for M.2 SSDs

1 M.2 slot 1 2 M.2 slot 2

System board and components

RX1330 M4 Upgrade and Maintenance Manual 311
