Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

CAUTION
An M.2 SSD in M.2 slot 2 is not recognized, if M.2 slot 1 is free.
▶
The M.2 slot 1 must be equipped first.
Each M.2 SSD needs one hexagon standoff for fastening. To support
different length of M.2 SSD, several nuts are on the system board
indicating the positions for fastening the M.2
SSD.
If no M.2 SSD has been installed before:
▶
Remove the screw (see orange circles in Figure 215).
If the hexagon standoff is unscrewed as well, remove the screw from
the hexagon standoff.
▶
Install the hexagon standoff on the right position depending on the length of
the M.2
SSD.

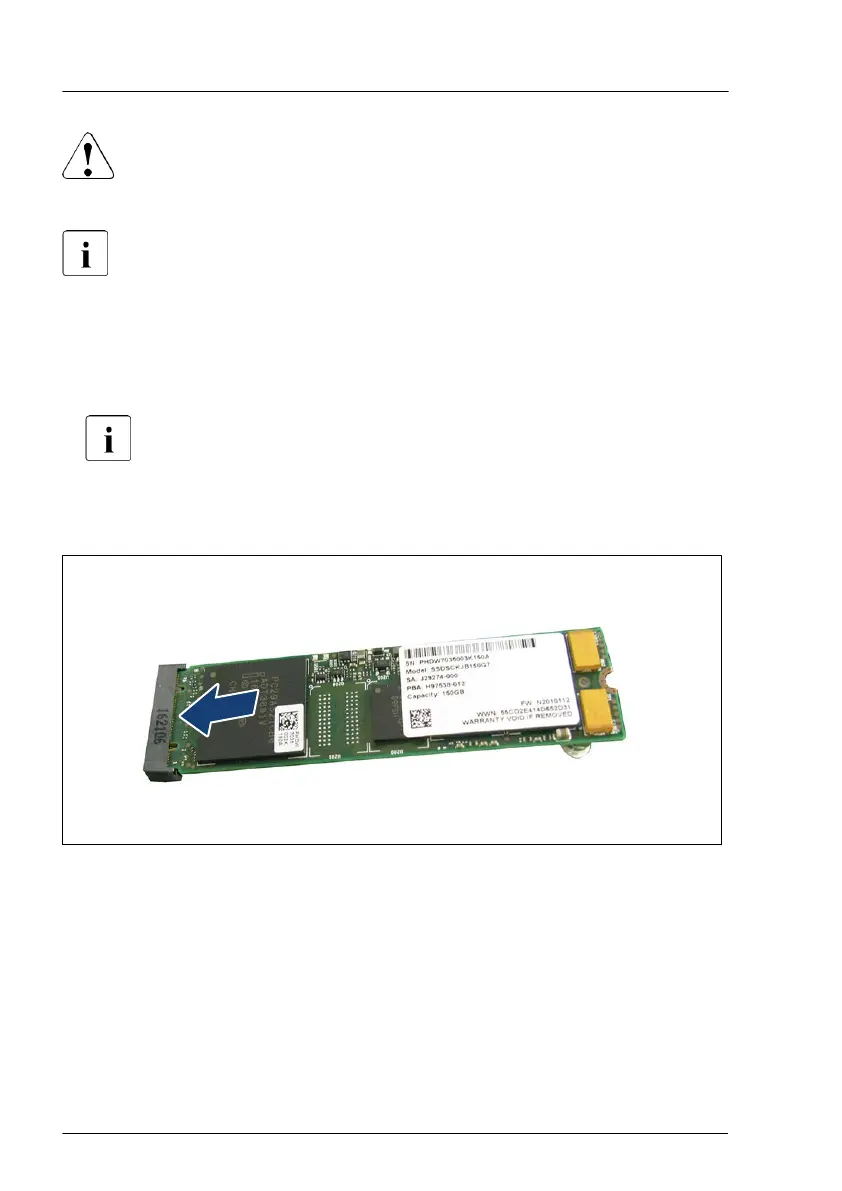

Figure 216: Installing the M.2 SSD
▶
With the label facing up, insert the M.2 SSD into the M.2 slot at a slight
angle.
System board and components
312 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
