Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

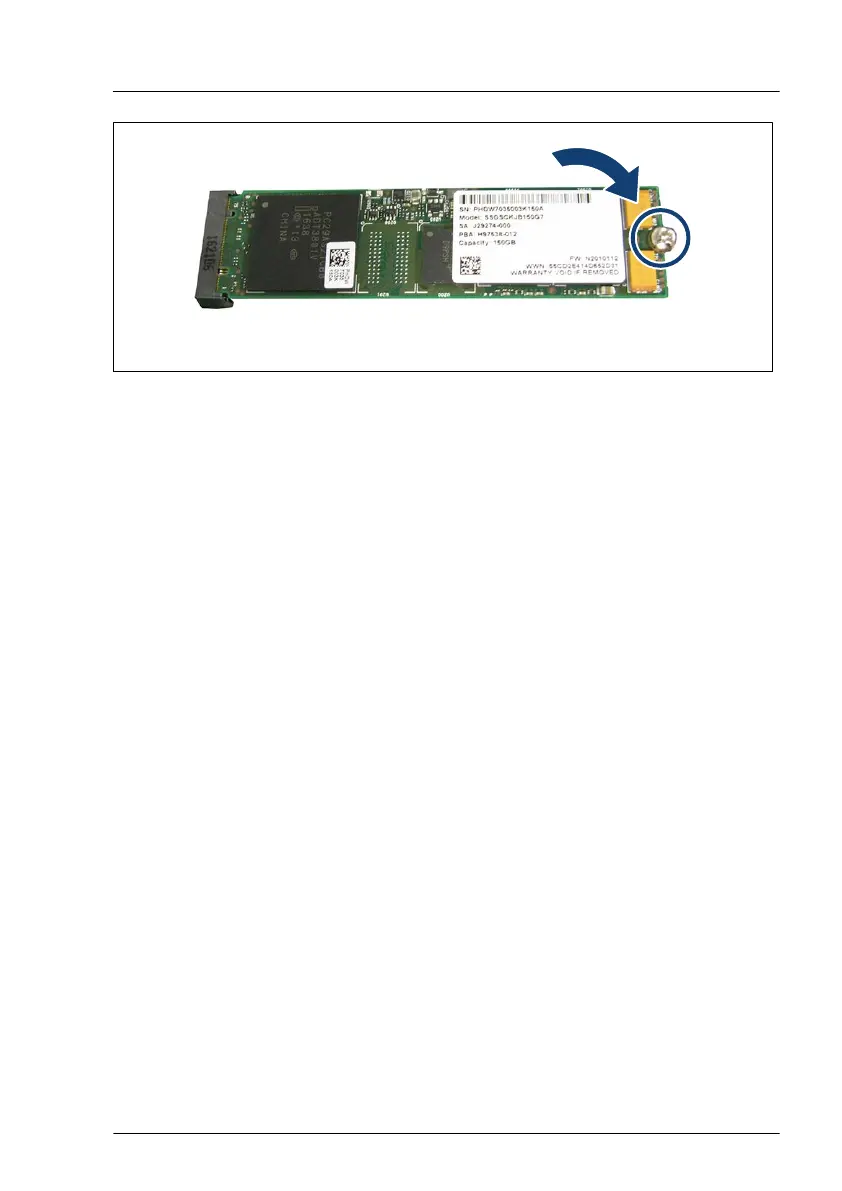

Figure 217: Fastening the M.2 SSD
▶
Fasten the M.2 SSD with the screw (see circle).
Concluding steps
▶
If applicable, install riser modules 2 and 3, see "Installing a riser module" on
page
61.
▶
"Reassembling" on page 52.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 58.
Software configuration
In order to install the ESXi to the M.2 SSD, the VMware ESXi installer CD is
required. To obtain the ESXi installer CD by purchasing the OEM Media Kit, or
downloading the ESXi Custom Image ISO file from the VMware website and
burn the image to the CD.
https://www.vmware.com/go/download-vsphere
Install the ESXi to the M.2 SSD by following the steps below:
▶
Disconnect all storage devices from the server beside the M.2 SSD.
▶
Power on the server. Once the server has been started, then enter the BIOS
setup menu and select the DVD drive as primary boot device.
▶
Insert the CD into the DVD drive and reboot the server. The server will boot
from the installer CD.
System board and components
RX1330 M4 Upgrade and Maintenance Manual 313

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
